Bluesound Professional CP100 Wall-mount zone control panel

Name: Bluesound Professional CP100
Brand: Bluesound Professional
SKU: 813CP100
Price: 336.0 USD
Availability: InStock

Item # 813CP100

This keypad controller gives you tactile control of playback and volume control plus five presets in a BluOS zone.

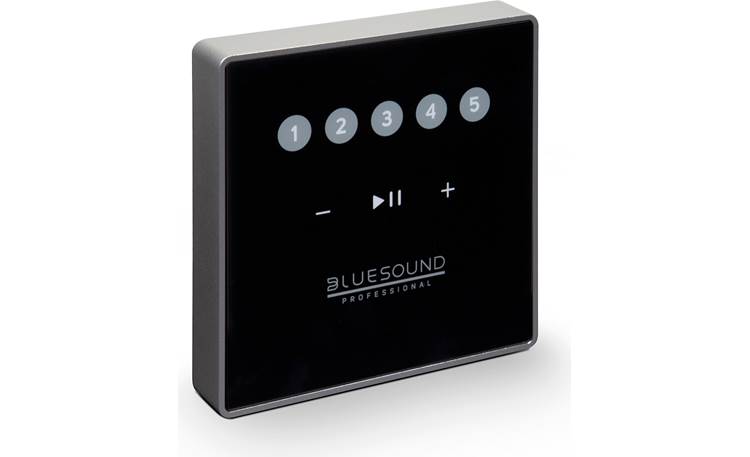

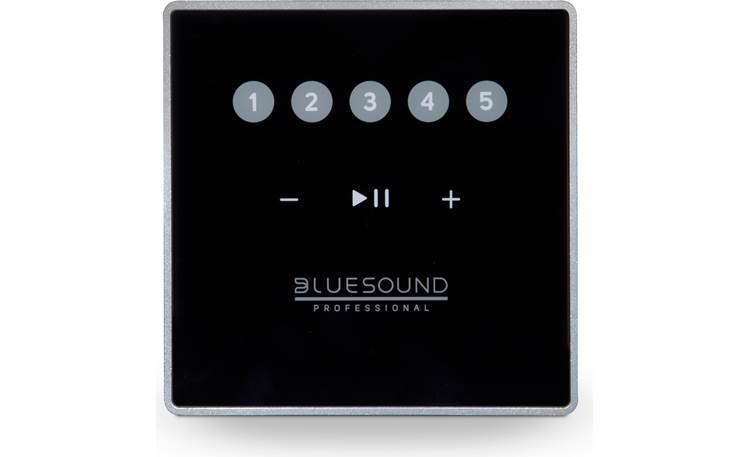

Front

1/6

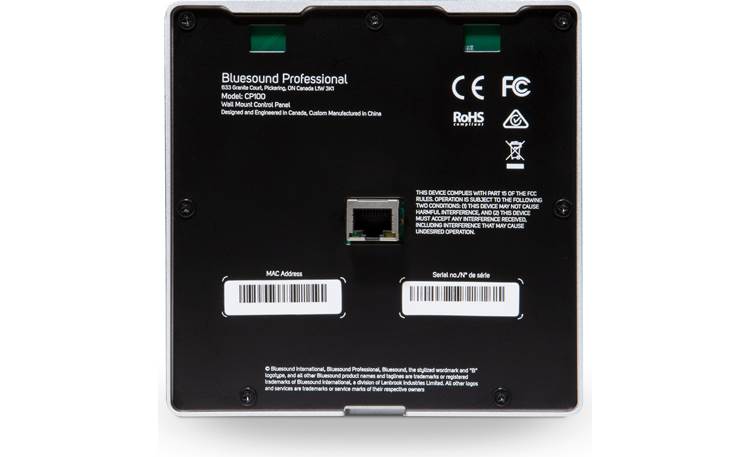

Back

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Volume and playback control plus 5 presets

Easy control in a busy work environment

Tactile control over a BluOS zone

Bluesound Professional CP100 Only at Crutchfield

Bluesound Professional CP100 Volume and playback control plus 5 presets

Bluesound Professional CP100 Easy control in a busy work environment

Bluesound Professional CP100 Tactile control over a BluOS zone

This keypad controller gives you tactile control of playback and volume control plus five presets in a BluOS zone.

Item # 813CP100

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$336.00 each

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Ned O.

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Tactile, wall-mounted controls for a Bluesound playback zone

This CP100 wall-mount control panel puts control of playback and volume plus five presets for a single BluOS zone at your fingertips. It's great for giving control to users who don't want to or can't use the BluOS app — although an administrative user will need to use the app to create and save the presets. If you want a wall controller that gives you comprehensive app-based control over your entire Bluesound Professional system, you can get the CP300.

Product highlights:

sleek, low-profile design
illuminated controls
glass surface allows for easy cleaning
play/pause and volume control buttons
five preset buttons — must be programmed using the BluOS app
RJ-45 connection and PoE powering for ease of installation

Other info:

mounts flush on the wall or into a wide variety of optional lighting/electrical back-boxes
5-5/16"W x 5-5/16"H x 7/8"D
warranty: 1 year
MFR # CP100
Item # 813CP100
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Bluesound Professional CP100 owner's manual

Wall-mount control panel
Bracket
Screw
Quick Setup Guide
Important Safety Instructions

Researched by Crutchfield's Russ B.

Product Research

Features

Wall-Mount Control Panel: The Bluesound Professional CP100 is a low profile wall-mount control panel for all Bluesound Professional network streaming speakers, amplifiers, and players. It features sleek design with a glass control panel and illuminated touch sensitive controls. It is possible to recall presets, play/pause music, and adjust volume in the zone that the panel is controlling. The controls illuminate as needed, and can be locked to protect against unintended or unauthorized use.

Play/Pause: You can use the CP100 to begin playback or to pause playback of your Bluesound Pro devices that are connected to the wall-mount control panel.
Volume Level: You can use the wall-mount control panel to increase or decrease the volume level of your Bluesound Professional devices that are associated with it.
5 Presets: Select any of the 5 Preset numbers (1-5) to immediately recall and playback your favorite radio stations, music streams or playlists saved on the specific preset selected.

BluOS Apps: The Bluesound Professional CP100 wall-mount control panel must be first setup through the BluOS Integration Utility app on your compatible Windows PC or Mac computer. From the BluOS Integration utility app you can select which Bluesound Pro devices will be controlled by the CP100 and setup Primary/Secondary controls if more than one CP100 is being used. The BluOS Controller app (for Apple iOS, Android OS, Windows PC, and MacOs) can be used to group Bluesound Pro devices and assign presets.

LAN Port (RJ45): Using a standard Ethernet cable (sold separately), connect one end of the Ethernet cable to the CP100’s LAN port (RJ45) and the other end to the LAN port of your Ethernet broadband router or switch with Power over Ethernet (PoE).

PoE (Power Over Ethernet): The CP100 is powered by PoE and does not require an AC power connection. Power over Ethernet (PoE) delivers power and data over Ethernet cabling, eliminating the need for additional cables, separate power supplies and outlets.

Note: The CP100 is not battery powered.

Mounting Options: The Bluesound Professional CP100 is designed to fit flush to the wall or mounted in a large variety of international back-boxes for ease of installation. The wall-mount control panel measures 5.3125" (w) x 5.3125" (h) x 0.875" (d). When mounted flush to the wall there will need to be hole that measures 0.75" (w) x 05625" (h) x 0.625" (d) to accommodate the Ethernet jack connection.
