Features

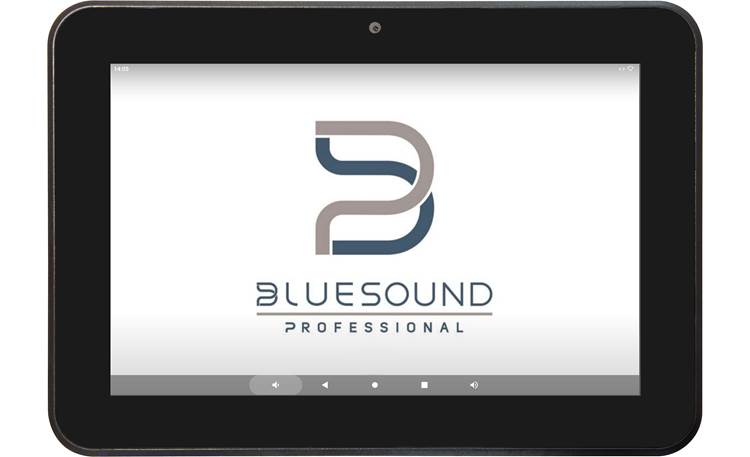

Wall-Mount Touchscreen Control Panel: The CP300 is a sleek, low-profile wall-mount control panel designed for seamless integration into your Bluesound Professional network environment. Featuring an 8" glass touchscreen, the CP300 offers intuitive control over Bluesound Professional speakers, players, and amplifier. You can setup a customized PIN to prevent accidental or unauthorized use.

Pre-Loaded BluOS Controller App: The CP300 is powered by Android OS 13 and comes pre-loaded with the BluOS controller app, providing full control of your Bluesound Professional network streaming gear.

• Home Screen: Content on the Home screen is dynamic and based on user behavior. It offers quick access to Most Used music services and source inputs, as well as saved Presets, Recent Stations, Recently Played, and created BluOS Playlists.
• Now Playing: The Now Playing Screen provides playback control like Play/Pause and Previous/Next track, along with song/artist/alum information (including album art). It also shows the icon of the music service, as well as music quality indicator (bit-depth/sampling-rate).
• Music Services: All music services and inputs are available from this screen of the app. It is also here where new music services can be added or removed. In addition, you can create quick access to specific source inputs.
• Players Page: Use the Player page of the BluOS Controller app to manage the player's volume, grouping between other Bluesound products, and customized audio settings.
• Search & Find: Use Search page of the app to find content from available services available on Bluesound. You can search by artist, album, song, shows, or playlists. It will also save the last 10 search items for quicker access.
• Settings Menu: The Settings Menu offers Alarms, Sleep Timers, Audio Adjustments (like Bass & Treble), as well as Online Support, Firmware Upgrades, Diagnostics, and more.

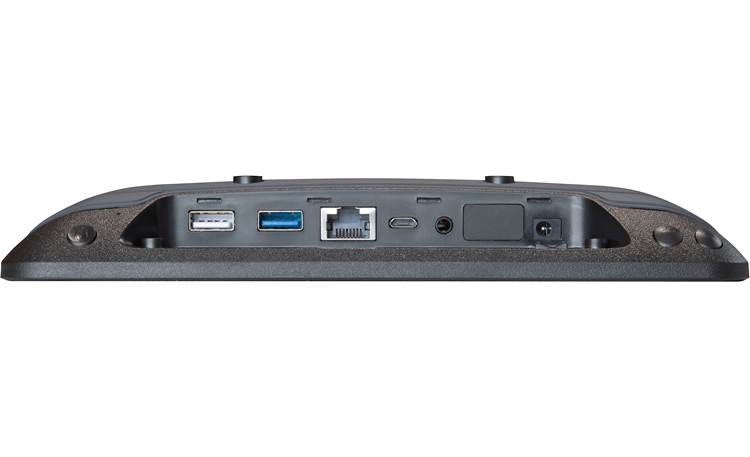

RJ45 LAN Port: Using a standard Ethernet cable (sold separately), connect one end of the Ethernet cable to the CP300’s LAN port (RJ45) and the other end to the LAN port of your Ethernet broadband router or switch with Power over Ethernet (PoE+).

PoE+ (Power Over Ethernet): The CP300 is powered by PoE+ and does not require an AC power connection. Power over Ethernet (PoE+) delivers power and data over Ethernet cabling, eliminating the need for additional cables, separate power supplies and outlets.

• A DC power input is offered (AC/DC power adapter sold separately).
• The CP300 is not battery powered.

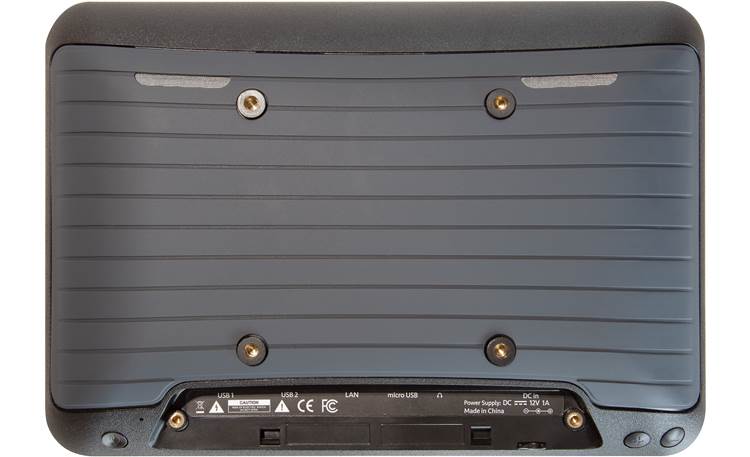

Mounting Options: The Bluesound Professional CP300 is designed to mount flush to the wall using the supplied mounting bracket and hardware. The wall-mount touchscreen control panel measures 8.375" (w) x 5.9375" (h) x 1.25" (d). It has a VESA wall-mount pattern of 75mm (h) x 75mm (v) with four 4mm (M4) threaded inserts.

USB Service Ports: A microUSB port and a USB-A port are for service, firmware, and software purposes only.
