SunBriteTV® SB-HDWT Weatherproof Wireless HD Transceiver for use with SunBriteTV outdoor TVs

Name: SunBriteTV® SB-HDWT
Brand: SunBrite
SKU: 817SBHDWT

Item # 817SBHDWT

This weatherproof, point-to-point wireless system can transmit full 1080p HD video and audio up to 100 feet away'

Front

1/9

Receiver

2/9

Only at Crutchfield

3/9

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Receiver (angled view)

Receiver (back)

Receiver on TV (TV not included)

Remote

Transmitter

Transmitter (side view)

SunBriteTV® SB-HDWT Receiver (angled view)

SunBriteTV® SB-HDWT Receiver on TV (TV not included)

SunBriteTV® SB-HDWT Transmitter (side view)

This weatherproof, point-to-point wireless system can transmit full 1080p HD video and audio up to 100 feet away'

Item # 817SBHDWT

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Shop all SunBrite A/V Source Switchers

by Crutchfield's Steve Kindig

Send HD video wirelessly to an outdoor TV

Place the wireless transmitter (pictured) indoors near your Blu-ray player or other HDMI-equipped HD video source. The weatherproof receiver unit goes near your outdoor TV.

The SunBriteTV Wireless HD Transceiver is a weatherproof, point-to-point wireless system that can transmit full 1080p HD video and audio up to 100 feet away to your SunBriteTV outdoor TV.

You'll no longer be limited to what's available from your SunBrite TV's built-in tuner. You can enjoy any HDMI-equipped HD video source — cable/satellite box or DVR, set-top box like Apple TV®, Blu-ray player, or game console — without running a cable out to your TV.

Considering its advanced capabilties, the system is easy to set up. The transmitter, which is the smaller of the two components, can either lie flat or be mounted upright on its stand. Try to place it a few feet away from other electronics to avoid interference. The receiver unit can be mounted on a wall or an external bracket on your SunBriteTV.

Note: Path between sending and receiving antennas must be unobstructed.

Product highlights:

wireless HD transceiver system for use with SunBriteTV outdoor TVs
lets you wirelessly connect a single HDMI-equipped HD video source to your SunBriteTV outdoor TV
compact transmitter and receiver units feature built-in omnidirectional antennas
range is 100-ft. line-of-sight (path between sending and receiving antennas must be unobstructed)
supports video resolution up to 1080p, and stereo audio
working frequency range: 4.9-5.9 GHz
transmitter should not be exposed to rain, moisture, or direct sunlight
weatherproof receiver can be used outdoors
remote control
includes all necessary cables
HDWT-Tx transmitter: 5-3/4"W x 3-1/2"H x 1"D; HDWT-Rx receiver: 9-3/4"W x 8-1/2"H x 2-1/4"D;
warranty: 1 year
MFR # SB-HDWT
Item # 817SBHDWT

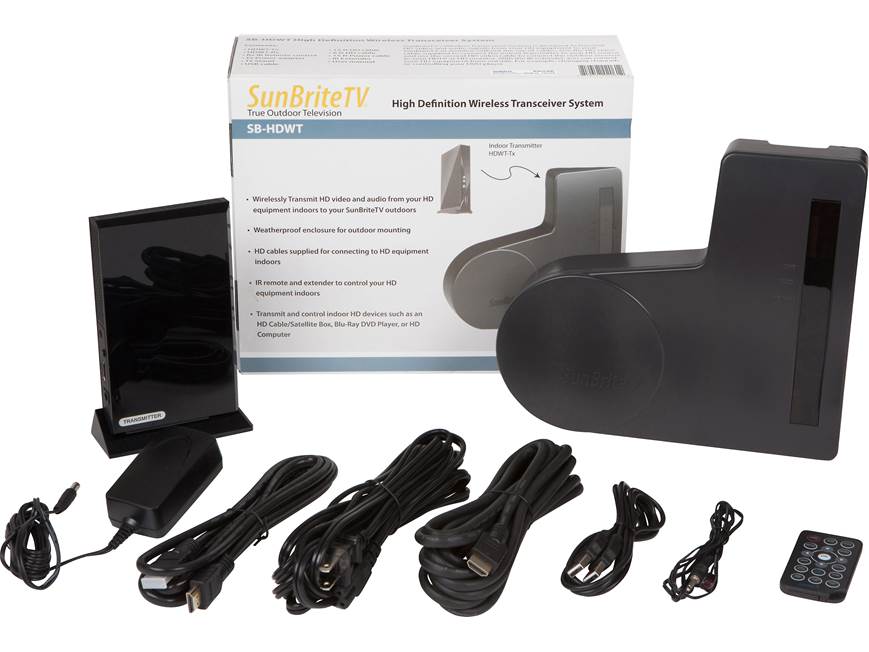

What's in the box:

SunBriteTV® SB-HDWT owner's manual

Wireless transmitter (HDWT-Tx)
Wireless receiver (HDWT-Rx)
AC power adapter
15' AC power cord
15' HDMI cable
6' HDMI cable
Remote control
4' IR emitter cable
Transmitter base
Quick Start Guide

Researched by Crutchfield's Mark G.

Product Research

Features

HD Wireless Transceiver: The SunBriteTV Wireless HD Transceiver (SB-HDWT) is a weatherproof, point-to-point wireless box that can transmit full 1080p HD up to approximately 100' line-of-sight (unobstructed path between sending and receiving antennas) via an HDMI-in and HDMI-out transceiver, creating a true, wireless outdoor TV experience. Enjoy a wireless connection to your cable/satellite box, Blu-ray player, or gaming console.

Weatherproof: The SunBriteTV Wireless HD Transceiver's weather-resistant design allows it to be used outdoors.

Wireless Range: The SunBriteTV Wireless HD Transceiver (SB-HDWT) incorporates omni-directional internal antennas with a wireless range of approximately 100' line-of-sight (unobstructed path between sending & receiving), wireless linking speed of 2.5Gbps, and <1ms system latency.

Operating Frequencies: 4.9 to 5.9GHZ (w/ DFS function)
Bandwidth: 40 Hz
Frequency Stability: +/-4ppm
Transmission Power: >=12dBm / >17dBM
Receiving Sensitivity: <=-75dBM / <=-65dBM

HDMI Ports: The SunBriteTV Wireless HD Transceiver (SB-HDWT) connects to your SunBriteTV display and source component via HDMI. Two HDMI cables are included.

Supported Formats: HDMI 1.3 & HDCP 2.0
Supported Video Resolutions: 1080p, 720p, 1080i, 576p, & 480p (not compatible with 4K)
Supported Audio: 2-channel stereo

Expandable: The included receiver can be used with multiple transmitters (sold separately). With multiple transmitters set up, you will be able to use multiple source devices and switch among them using the Source button on the included remote control.

Remote Control: The included IR remote and IR emitter cable offers wireless operation for switching between multiple transmitters (sold separately).

Mounting Options: The transmitter comes with a table-top base, while the receiver can be wall-mounted.

AC Power: Both the included wireless transmitter and receiver will require an AC power outlet.

Dimensions:

Transmitter: 5.75" (w) x 3.5" (h) x 1.0" (d)
Receiver: 9.75" (w) x 8.5" (h) x 2.25" (d)

Loading accessories...

3 questions already asked

Is it possible to use my receiver's hdmi out to send any of the inputs I have coming into that device out to the to the sunbrite transmitter and then on to the sunbrite receiver? Obviously, I want to have as many options as possible for viewing...

imn2vt Jun 17, 2017

1 answer

The transmitter offers a single HDMI input but, yes, you can certainly connect the HDMI output of your home theater receiver. I hope that helps. My Bio: https://www.crutchfield.com/bio/Ryan

ryan Jun 22, 2017 (Staff)

The description says unobstructed. Can you clarify? I will be sending the signal about 35 ft, but it has to travel through a sliding glass door and/or wall.

david Aug 20, 2016

1 answer

Here's more info on the installation/mounting provided from the Owner's Manual: "Mount the receiver where it can get a clear signal from the transmitter. Preferably it should be line-of-sight with the transmitter, such as through a window. The signal can usually go through one wall, depending on how the wall is constructed. If possible, mount the receiver a couple of feet above the TV so it gets a clearer signal." I hope that helps. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=159

david Aug 21, 2016 (Staff)

There's a blinking light on the receiver, any way to get this to stop blinking?

greg Sep 19, 2015

1 answer

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

kristina Sep 20, 2015 (Staff)
