About the Paradigm Rock Monitor 80-SM

Product highlights:
- stereo-input speaker designed for direct placement in your landscaping
- two 1" PTD™ pure titanium dome tweeters offset at 30° angles
- dual-voice-coil 7-1/2" ICP™ injection-molded co-polymer woofer
- frequency response: 63-20,000 Hz (±2dB)
- nominal impedance: 8 ohms (per input channel)
- sensitivity: 90 dB
- recommended amplifier power: 15-60 watts per input channel (up to 120 watts mono)
- sealed (acoustic suspension) UV-resistant enclosure with self-draining fissures
Other info:
- left and right speaker wire pigtail connections
- 13-7/16"W x 15-3/16"H x 13-7/16"D
- weight: 17 lbs.
- warranty: 5 years
- MFR # 1319081032
- Item # 819RM80SMG
What's in the box:
Paradigm Rock Monitor 80-SM owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Rock speaker (Northeastern Dark Granite) with attached 3' input wires
- 12" Security stake with attached 40" cable
- Owner's manual (En & Fr)
- Warranty registration card
More details on the Paradigm Rock Monitor 80-SM

Features & specs
Installation & setup | ||
---|---|---|
Type | Rock Speaker | |
Built-in amplification | No | |
Bluetooth | No | |
Wall-mountable | No | |
Bracket included | No | |
Connector type | Bare-ended wire | |
Driver details | ||
Tweeter type | Hard-dome | |
Tweeter size (inches) | 1 | |
Midrange size (inches) | N/A | |
Woofer size (inches) | 7.5 | |
Woofer composition | Co-polymer polypropylene | |
Woofer surround | --- | |
Audio specs | ||
Power range (watts) | 60 | |
Sensitivity | 90 dB | |
Impedance (ohms) | 8 | |
Frequency response | 63Hz-20k Hz | |
Enclosure | Sealed | |
Dimensions & other info | ||
Height (inches) | 15-3/16 | |
Width (inches) | 13-7/16 | |
Depth (inches) | 13-7/16 | |
Weight (pounds) | 17.0 | |
Parts warranty | 5 Years | |
Labor warranty | 5 Years |
Product Research
Features

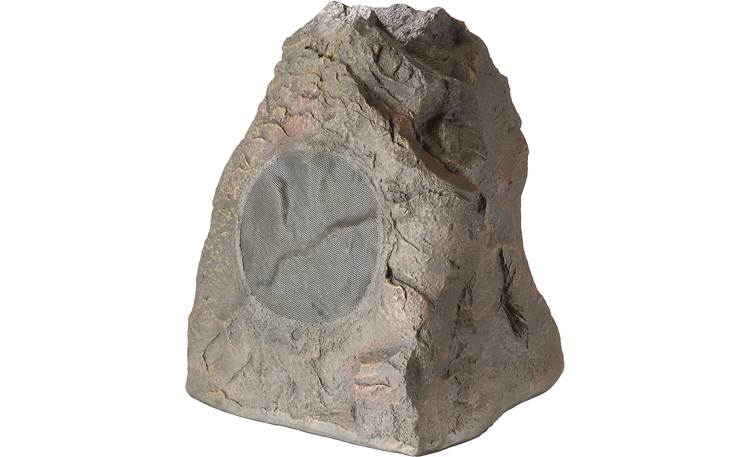

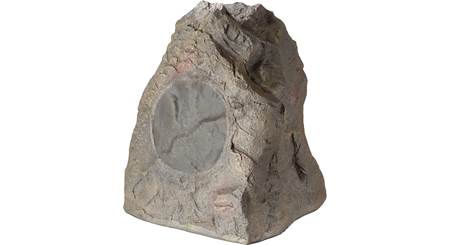

Overview: The Paradigm Rock Monitor 80-SM lets you add high-quality sound to your patio, lawn, pool, flower bed, or other outdoor area while discreetly blending into the surroundings. The Rock Monitor 80-SM is available in Fieldstone and Northeastern Dark Granite.
Drivers: Designed to provide stereo sound from a single speaker, the 80-SM features one 7.5" dual voice-coil woofer and twin coaxially-mounted 1" tweeters that are offset at 30° angles, providing a wide stereo spread. The woofer features an ICP (Injection-Molded Co-Polymer) polypropylene cone and oversized ferrite magnets on the motor structure. The two tweeters feature Paradigm's PTD (Pure-Titanium Domes) for smooth, clear high-frequencies.
Enclosure: The Paradigm Rock Monitor 80-SM sealed enclosure is constructed of durable PolyGlass with a Faux-Stone finish, providing durable weather-, water- and UV-resistance and excellent sound quality. The 3-way driver is protected by a stainless steel grille that's painted to match the enclosure.
Wiring & Power: The Rock Monitor 80-SM is wired as a stereo speaker with two pairs of 40" speaker wire extending from the bottom of the enclosure for a Left/Right stereo connection. Each set of wire feeds one of the woofer voice-coils and one tweeter. The speaker wire is encased in a heavy protective jacket with bare ends for connecting to your amplifier. Each channel presents an 8-ohm load and can handle 15-60 watts RMS.
Mounting: The Paradigm 80-SM outdoor speaker is designed to sit on a flat surface or ground area. It can be installed on a grade of up to 20° while still allowing for adequate drainage. The speaker can provide a 20' (approximately) wide dispersion arc in front of the speaker and can be used in conjunction with multiple Paradigm rock speakers for smooth, even sound throughout your area.
Security: The Rock Monitor 80-SM includes a 12" security stake to reduce the chance of theft or unauthorized movement of the speaker. The security stake can be embedded in the ground and has an attached 40" cable that secures to a built-in eyelet on the bottom of the enclosure, letting you keep the stake and cable out of sight.
