Infinity KAPPRV515

Marine digital media receiver with built-in Bluetooth® and NMEA 2000 connectivity (does not play CDs)

Item # 822PRV515

Infinity's KAPPRV515 marine digital media receiver features built-in Bluetooth with aptX that lets you stream music...

Infinity's KAPPRV515 marine digital media receiver features built-in Bluetooth with aptX that lets you stream music...

California customers:
Please click here for your Proposition 65 warning.

4 questions - 2 answers

Item # 822PRV515

Shop all Infinity Marine Radio

60-day returns

If you don't love it, send it back.

Free custom vehicle instructions

Installation help for your car, from our experts.

60-day price protection

We’ll reimburse you if the price drops.

About the Infinity KAPPRV515

Jon Paul

Convenient control of all your music

Infinity's KAPPRV515 marine digital media receiver features built-in Bluetooth with aptX that lets you stream music from your smartphone. You can also plug a music player or thumb drive into the AUX or USB inputs to check out your playlists. Add a satellite radio tuner (not included), and you can enjoy music, talk, and sports when you're miles offshore. And you'll be able to listen to your favorite radio stations and track weather on the global AM/FM/WB tuner. This compact, feature-packed receiver will also fit right in with your existing NMEA 2000 system.

Convenient control of all your music

Infinity's KAPPRV515 marine digital media receiver features built-in Bluetooth with aptX that lets you stream music from your smartphone. You can also plug a music player or thumb drive into the AUX or USB inputs to check out your playlists. Add a satellite radio tuner (not included), and you can enjoy music, talk, and sports when you're miles offshore. And you'll be able to listen to your favorite radio stations and track weather on the global AM/FM/WB tuner. This compact, feature-packed receiver will also fit right in with your existing NMEA 2000 system.

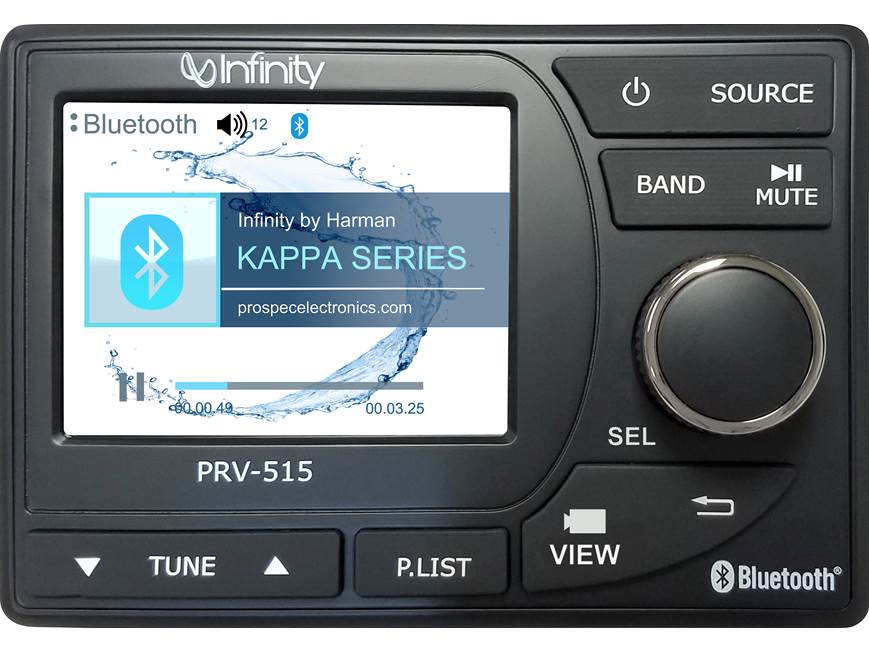

3-1/2" color screen

You'll be able to see what's song or station is playing on the KAPPRV515's 3-1/2" color LCD screen, but you can also connect a camera and see what's going on behind your boat, or elsewhere. The water-resistant faceplate also features a rotary knob for easy control, plus easy-to-see buttons for important functions.

The start of a really cool system

The KAPPRV515 features three sets of preamp outputs (including sub outputs), so you'll have plenty of options for adding amps to your system. With 4-zone control (front. rear, secondary, and subwoofer) and plenty of sound-shaping tools, you can get the sound you want where you want it. This rugged receiver works with wired remote controls (sold separately), so you and your passengers can control the entertainment from wherever you like.

You can also control your LED speakers and other LED lighting accessories through the faceplate, with the help of the Infinity MIL-LEDPWR accessory box.

Designed for the great outdoors

This digital media receiver packs a lot of features into a compact design that fits a 3-1/2" round gauge opening. Infinity designed this marine-rated receiver with outdoor use in mind, so the weather-resistant, UV-stable face and controls will stand up to sun, salt and moisture when you're out having fun.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

  • marine digital media receiver
  • compact design fits into 3-1/2" round gauge openings
  • built-in 2-ohm stable amplifier (25 watts RMS/50 peak x 4 channels)
  • built-in aptX Bluetooth with ID tagging for music streaming
  • global AM/FM/WB tuner with RDS
  • bass, treble, and midrange adjustment
Marine features:
  • works with your boat's NMEA 2000 system
  • 4-zone control (front, rear, sub, secondary zone)
  • DSP control works with Infinity marine amps
  • marine-rated watertight face
  • rotary encoder knob
Expandability:
  • works with SiriusXM's satellite radio tuner
  • inputs: rear aux input, rear charging USB input (for USB drives), video input
  • outputs: 6-channel preamp outputs (2-volt front, rear, and sub)
  • works with rear-view and other cameras (sold separately)
  • works with wired remotes (sold separately)
  • control LED lighting with MIL-LEDPWR accessory box (sold separately)
  • chassis cutout dimensions: 3.375" diameter x 4.25" depth
  • front-panel nose dimensions: 5.875"W x 4.125"H x 1.5"D
  • warranty: 1 year
  • MFR # KAPPRV515

What's in the box:

  • Marine receiver
  • Wiring harness
  • Foam-gasket (installed) U-bracket
  • Self-adhesive foam cutout template
  • 2 Mounting bolts
  • 4 Flanged-nuts
  • 2 Lock-washers
  • Owner's Manual

Customer reviews for Infinity KAPPRV515

Loading reviews...

Average review:

3.5 out of 5 stars
5 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Infinity KAPPRV515

Stacey B.

Features & specs

Expandability
AUX Input RCA (rear)
Audio/video Input ---
USB Input Rear
USB Port Power 0.5A
Backup Camera Input No
Second Camera Input No
CarPlay No
Android Auto No
Siri Control No
Alexa Voice Control N
Android Control Yes
Memory Card Slot USB memory
Bluetooth Compatible Built-in
Satellite Radio Ready SiriusXM
HD Radio No
Navigation ---
iPod Compatibility
Full size No
Nano No
Touch 5Gen and newer
iPhone 5 and newer
General
RMS Power (CTA-2006) N/A
RMS Power (Manufacturer) 25 watts
Peak Output 50 watts
RMS Power Bandwidth Not givenHz
Preamp Outputs 8-channel
Sub Preamp Outputs No
Switchable Rear Preamp Outputs No
Video Screen No
Navigation App Compatible (iOS)
Navigation App Compatible (Android)
Preamp Voltage 2 volts
Screen Size 0
Screen Type N/A
Display Color Multi-color
Key Button Color White
EQ Bands None
Wireless Remote No
Steering Wheel Control Compatible No
Parts Warranty 1 Year
Labor Warranty 1 Year
Tuner
FM Sensitivity ---
European Tuning Yes
Seek/Scan Seek
Radio Data System Yes
File Playback
Music File Playback MP3/WMA
High-res Playback N

Product Research

General Features
Variety of Sources

General Features

Marine Certified: The KAPPRV515 marine receiver has been engineered and tested for use in the harsh marine environment. The receiver features a solid aluminum chassis, front-panel protective gasket, and IP6 waterproof face. The receiver also meets or exceeds ASTM117 salt fog standards.

Note: The marine receiver should not be washed with a pressure washer, no should it be washed with chemicals. Use a wet sponge or damp cloth to clean the unit.

LCD Screen: The KAPPRV515 marine receiver features 3.5" TFT color LCD screen to display source selection, station identification, song/artist/album information (including Album Art for iPod/iPhone & USB MSC devices), and audio settings. You can adjust the brightness level of the LCD screen.

Built-In Amplifier + Preamp Outputs w/ Multizone Control: The marine receiver is equipped with a 50 Watts (Peak) x 4ch amplifier that is 2-ohm stable. The marine unit is also fitted with 4 pair of stereo preamp outputs for creating a multizone audio system with up to 4 zones. You can control the individual volume level of each zone or have each zone controlled by a global volume setting. The same audio source will be playback in each zone.

Audio Settings: The marine receiver features 5 EQ preset modes - Classic, Jazz, Pop, Rock, Vocal, or Off.  The marine head unit also offers independent Bass, Midrange, and Treble control (-7 to + 7); along with Balance (L10 to R10) & Fade (F10 to R10) adjustment. When listening to music at low volume levels, the Loudness feature will boost the bass & treble response. In addition, you can program the unit's Initial Volume Level so it turns on at the same volume level each time. Every time a button is pressed the unit will output a beep tone (this can be turned off).

Mounting Options: The marine receiver requires a circular in the bulkhead for inserting the chassis. The integrated protective gasket, supplied U-bracket, and included hardware secure the unit in place against the mounting surface.

  • Cutout Dimensions: 3.375" (diameter) x 4.25" (depth)
  • Front-Panel Dimensions: 5.875" (w) x 4.125" (h) x 1.5" (d)
Note: The receiver does not meet the dimensions or include a mounting sleeve or ISO-mount screw holes to accommodate standard automotive installation.

Optional Wired Remotes: The KAPPRV515 supports the connection of a marine wired remote control. You can connect either the INFREM1 wired remote (no LCD screen), MIL-REM80 wired remote (with LCD screen), or KAPMC40 wired remote (with color LCD screen) - all sold separately.

Optional LED Power Module: The unit offers a proprietary connector for hooking up the Milennia LED Power Module (MIL-LEDPWR, sold separately). From the marine receiver's front-panel you'll be able to control RGB color settings.

NMEA2000 Connector: The marine receiver's NMEA2000 connector allows the unit to be seamlessly added to your boat's onboard NMEA 2000 network, enabling control and two-way communication of the marine receiver directly from your boat's Multi-Function Display (MFD) device. Two-way communication between the marine receiver and your MFD allows source selection, song/track/album title, radio frequency and more to display on the MFD interface.

Variety of Sources

Bluetooth Audio Streaming: The KAPPRV515 supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth source device, such as your smartphone or tablet. You'll be able to wirelessly stream stored music, music apps and other audio content on your Bluetooth source device to the marine receiver. You'll also be able to control basic playback functions (such as Play/Pause & Previous/Next Track) from the receiver's front-panel. In addition, song/artist/album info (no album art) will be displayed on the unit's front-panel. You can only pair and connect one Bluetooth source device at a time. The unit will automatically connect with your last paired device.

Note: This unit does not support Bluetooth hands-free communication for making and answering phone calls.

USB Port: The KAPPRV515 marine receiver is equipped with a rear-panel USB (type-A) port attached to the chassis by a 6" pigtail. The USB port allows you to connect a USB thumbdrive or other type of USB mass storage class device. The unit supports audio playback & control of MP3/WMA audio files stored on a compatible USB device. The unit offers Play/Pause, Fast Forward/Reverse, Previous/Next Track, Repeat/Random, & Scan (10-seconds) functions. This unit will also display song/artist/album information (including Album Art) and provides File/Folder search. The USB port (5V/0.5A) can also be used to charge the battery of a USB device.

Note: The unit's USB port does not support Android devices.

iPod/iPhone Compatible: The receiver's USB port can also be used to connect a Apple iOS device with Lightning connector. The unit supports audio playback of your music library and music apps, advanced music browsing and playback control, song/artist/album info display (including Album Art), as well as charging of your Apple device's battery. The unit is not compatible with older 30-pin Apple iOS devices.

Apple Device Generation Tested Version Media Type Control Type Display Type Bluetooth Charge
Audio Video Head Unit iPod/iPhone Album Art Artist/Song Text Track Info Phone Audio
iPhone
5/5C 10.3.3 Y N Y Y Y Y Y N Y Y
5S/SE 12.1.3 Y N Y Y Y Y Y N Y Y
6/6/+6S/6S+ 12.1.3 Y N Y Y Y Y Y N Y Y
7/7+/8/8+ 12.1.3 Y N Y Y Y Y Y N Y Y
X/XR/XS/XS-Max 12.1.3 Y N Y Y Y Y Y N Y Y
touch
5th 9.3.5 Y N Y Y Y Y Y N Y Y
6th 12.1.3 Y N Y Y Y Y Y N Y Y
nano
7th 1.02PC N N N N N N N N Y Y
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

Aux Input: This unit features a rear mounted, stereo RCA auxiliary input on a 6" pigtail so you can connect an external audio source. An RCA-to-Minijack cable (sold separately) will be required for the connection of a portable audio player with a headphone jack output.

AM/FM/WB Tuner: The marine receiver features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 AM/FM global presets. The Radio Data System (RDS) feature displays radio broadcast information such as artist & track information when listening to compatible AM/FM stations. You can select either US or European tuning. It also features a built-in weather band tuner, so you can stay up to date on the weather while you are out on the water.

Optional SiriusXM Tuner: This KAPPRV515 marine receiver provides connection to the SiriusXM Connect Tuner (220SXV300, sold separately). The SiriusXM Connect Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription. Check out the most popular SiriusXM subscription packages here. A SiriusXM subscription is required for access to the SiriusXM Satellite Radio programming.

Note: SiriusXM Satellite Radio operates on the XM Network. However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

Camera Input: This marine receiver features a composite video jack attached to rear chassis via a 6" pigtail for adding a marine-grade camera (sold separately). The camera input can also be used as a video input, but there will be no audio playback.
