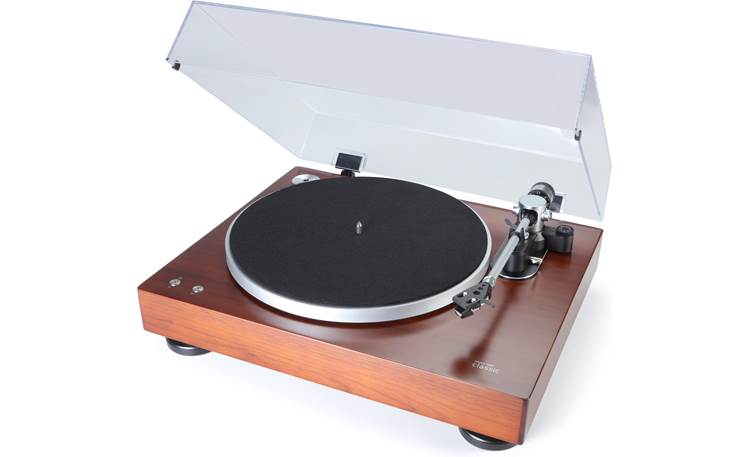

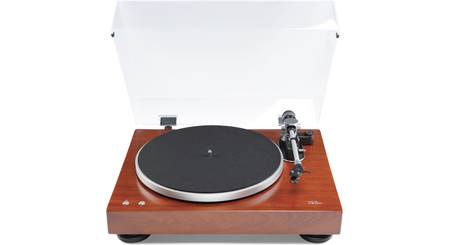

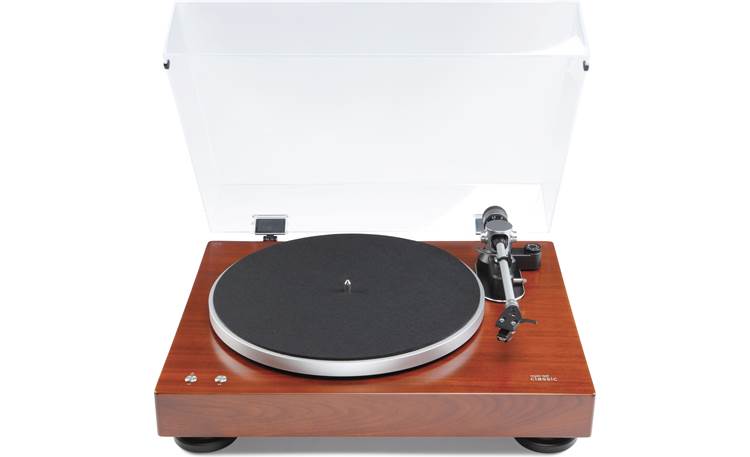

About the Music Hall Classic
Product highlights:
- switchable built-in phono preamp
- aluminum platter with felt mat
- when switch is set to LINE, turntable must be connected to a standard line input (labeled AUX, CD, or TAPE)
- when switch is set to PHONO, turntable must be connected to an outboard phono preamp or dedicated phono input
- factory mounted Music Hall Spirit moving magnet cartridge on removable head shell
- tonearm automatically lifts and platter stops spinning at the end of a side
- tonearm must be returned to rest manually
- medium density fiberboard (MDF) base with adjustable vibration-damping feet
- dark walnut wood veneer
- electronic speed control (33-1/3 and 45 rpm)
- signal to noise ratio: 65 dB
- wow and flutter: .12%
Dimensions and warranty:
- 17-1/8"W x 6-1/4"H (with dust cover down) x 14-1/2"D
- weight: 15.2 lbs.
- warranty: 1 year
- MFR # MHTTCLSCSPRTDWLN
- Item # 823CLSCWN
What's in the box:
Music Hall Classic owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Turntable
- Tone-arm (installed)
- Cartridge w/ stylus
- AC power adapter (attached 58" DC cord)
- 3 AC plug inserts (US/EU/UK)
- Platter
- Belt (installed on platter)
- Felt mat
- 45 RPM adapter
- Counterweight
- Dust cover
- 2 Hinges
- 57" Stereo RCA cable (w/ grounding wire)
- Instruction Manual
More details on the Music Hall Classic
Features & specs
| Features | ||
|---|---|---|
| Color | Walnut | |
| Operation | Semi Automatic | |
| Automatic Functions | Stop, Tonearm Lift | |
| Speeds | 33-1/3, 45 | |
| Speed Control | Electronic | |
| Drive Type | Belt | |
| Pitch Control | No | |
| Phono Preamp | Built-in | |
| Phono/Line Switch | Yes | |
| Adjustable Vertical Tracking Angle | No | |
| Adjustable Azimuth | No | |
| Bluetooth Built-In | No | |
| Wi-Fi Streaming | No | |
| 45 RPM Adapter | Yes | |
| Dust Cover | Yes | |
| Materials and Construction | ||
| Plinth | MDF | |
| Platter | Aluminum | |
| Tone Arm Shape | Straight | |
| Tone Arm Material | Aluminum | |
| Tone Arm Lift | Finger, Lever | |
| Cartridge Info | ||
| Included Cartridge | MH Spirit | |
| Cartridge Type | MM | |
| Removable Headshell | Curved | |
| Tracking Weight | 2.0 g (20mN) | |
| Frequency Response | 20-20,000 | |
| Output Voltage | 3.5 | |
| Load Impedance | 47,000 | |
| Load Capacitance | 100-200 | |

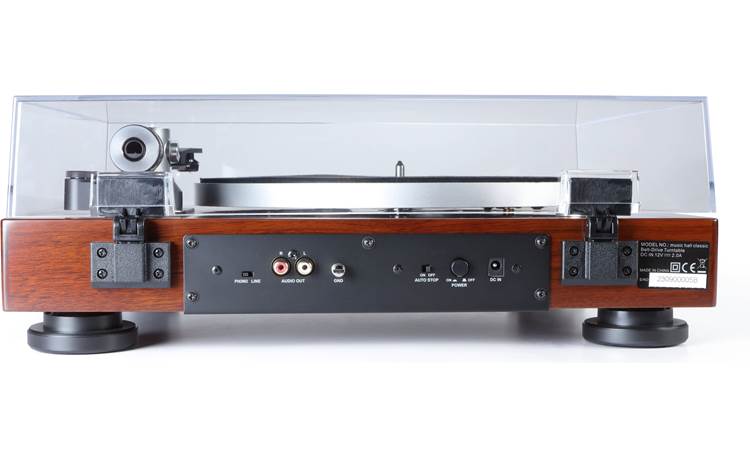

| Connections | ||
| RCA Audio Output | Yes | |
| 3.5mm Audio Output | No | |
| 5-pin Mini XLR Audio Output | No | |
| 5-pin DIN Audio Output | No | |
| Ground Wire Terminal | Yes | |
| USB-A Port | No | |
| USB-B Port | No | |
| Audio Cable | Detachable | |
| Power Cable | Detachable (12-volt DC adapter) | |
| Audio Specs | ||
| Signal to Noise Ratio | 65 | |
| Wow and Flutter | 0.12 | |
| Dimensions and Warranty | ||
| Width (Inches) | 17.1875 | |
| Height (Inches) | 6.25 | |
| Depth (Inches) | 15.5625 | |
| Weight | 15.2 lbs. | |
| Turntable Parts Warranty | 1 Year | |
| Turntable Labor Warranty | 1 Year | |
| Cartridge Parts Warranty | 1 Year | |
| Cartridge Labor Warranty | 1 Year | |
Product Research
Features
2-Speed Control: A built-in speed control circuit ensures the accuracy of the Music Hall Classic turntable's two speeds (33-1/3 and 45 RPM). A 45 RMP adapter is included. The turntable's electronic speed control regulates the belt-drive motor for precise speed and optimum sound quality.
Music Hall Spirit MM Cartridge: A quality Music Hall Spirit moving magnet (MM) cartridge is included (requires mounting and alignment). Developed and built specially for Music Hall by Audio Technica, the Spirit MM catridge incorporates a low-mass cantilever and an elliptical stylus tip.
Semi-Automatic Operation: At the end of the record the Classic turntable automatically lifts the tonearm and turns off the power (you will still need to manually return the tonearm to its rest). You will also still need to manually place the tonearm on your record to begin playback.

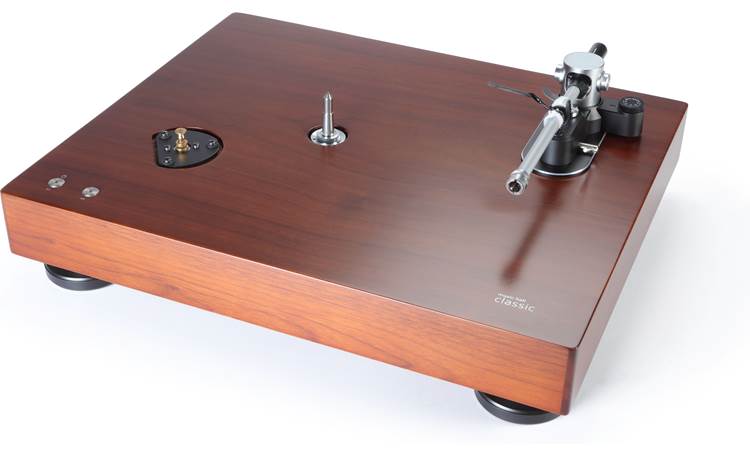

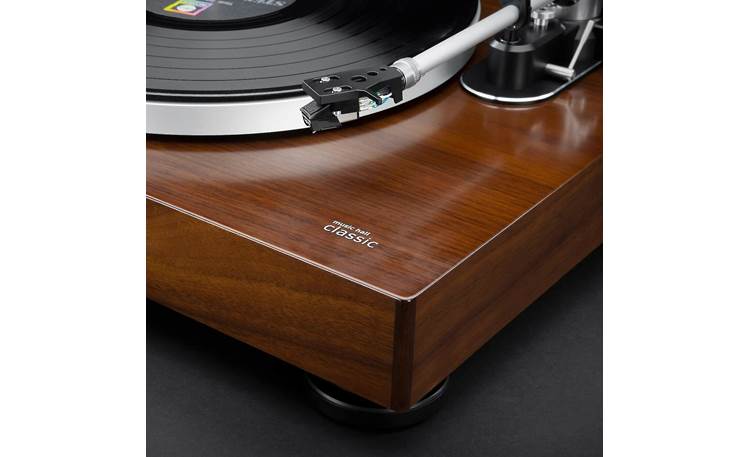

Vibration Damping: The Music Hall Classic turntable comes with an aluminum platter and a felt mat to help dampen ambient vibration. The belt comes pre-mounted to the platter, making setup easier and quicker. The Classic also features a MDF Plinth and adjustable vibration damping feet to prevent unwanted resonance. The MDF plinth features a walnut wood veneer finish.
Built-in Switchable Preamp: A built-in phono preamplifier allows connection of the turntable to an AV receiver, integrated amplifier, or powered speakers that do not have a dedicated phono input. The built-in phono preamp can be turned off when using an AV receiver or integrated amp with a phono input (MM).
Stereo RCA Output: The Music Hall Classic is outfitted with a stereo RCA output and comes with a 5' stereo RCA cable to connect the turntable to your AV receiver, integrated amplifier, or powered speakers.
Dust Cover: The Music Hall Classic comes supplied with a dust cover to prevent dust build-up on the turntable.
AC Power Adapter: The Music Hall Classic comes with an external AC power adapter that plugs into the back of the turntable and into an AC wall outlet or surge protector (sold separately - see Accessories Tab).
