Features

Overview: The MA Series of commercial amplifiers is a quick and easy solution to providing audio in restaurants, classrooms, retail spaces, and offices. The MA2030 accepts two microphone and three stereo line inputs, allowing you to select from several different sources, plus add paging.

Output Power: The MA2030 will output 30 watts per channel x 2 channels at 3Ω or 4Ω (Lo-Z). It can also produce a 60 watt mono signal at 70V or 100V (Hi-Z). The amplifier has a 4-pin, 7.62mm barrier strip speaker terminal.

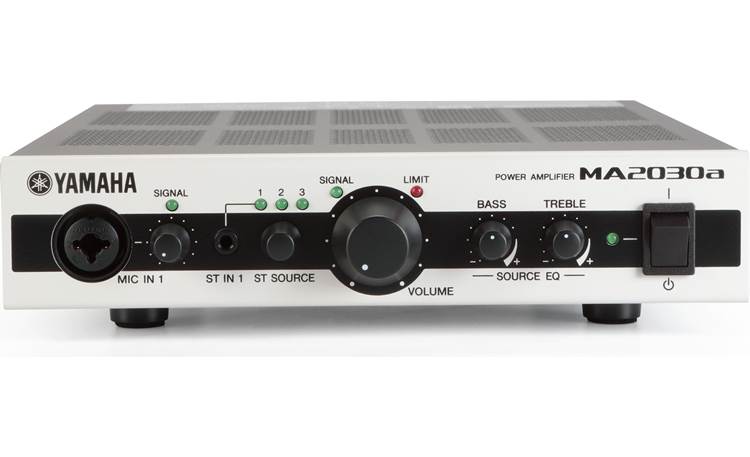

Front Panel: On the front panel are the following controls and inputs:

• Microphone In 1: An XLR / 1/4" combo jack is provided for connecting a microphone. The rotary input level control lets you vary the input signal, and an LED signal indicator glows when the signal is present. The microphone input is always processed through a high pass filter (120Hz, 12dB/oct) and a Feedback Suppressor to prevent howling.
• Stereo In 1: A 3.5mm stereo input for plugging in an external source, such as a portable digital music player.
• Source Select: This rotary control lets you select Stereo In 1 (front panel), Stereo In 2 (rear panel), or Stereo In 3 (rear panel). Individual LEDs indicate the selected input.
• Volume: Rotary control adjusts the volume output to the speakers. Above the volume knob are two LEDs: the Volume Signal LED lights when the signal output exceeds a certain level; the Volume Limit LED lights to indicate the limiter has activated, and the volume needs to be turned down.
• Source EQ: Separate bass and treble controls are provided for fine-tuning the output signal. The bass control is centered at 125 Hz, and the treble control is at 6 kHz. You can adjust each band from -10dB to +10dB. Turning either control to the right past 90 degrees activates the Enhancer to further emphasize the low or high frequency signal.
• Power Switch: The power switch lets you turn the amplifier on and off. A power LED to the left of the switch will glow when the unit is on. If the LED is flashing for 10 seconds or more, the internal temperature is too high. The power should be turned off to allow the amplifier to cool.

Rear Panel: The rear panel has the following connections and controls:

• AC Power Input: An IEC 3-prong input for connecting the supplied power cord, or an optional power cord.
• Speaker Terminals: Barrier strip type speaker outputs. You can make high-impedance connections (100V or 70V) or low-impedance connections (3Ω/4Ω). Spade lugs (±0.23" outer width) or bare wire connections work best. (For Hi-Z connections, only terminals A+ and B- are used)
• Output Switch: This 3-way switch sets the output type of the amplifier: 100V (Hi-Z), 70V (Hi-Z), or 4Ω/3Ω (Lo-Z).
• DIP Switches: (see below)
• DCP Connector: RJ-45 port for connecting an optional Digital Control Panel (DCP1V4S) for remote volume control and source selection.
• Line Out: A stereo pair of RCA jacks is provided for sending a signal to a second amplifier, such as a Yamaha PA2030.
• Line In: Two stereo RCA line inputs (ST In 2, ST In 3) for connecting external sources, such as a CD player. You can select the input from the source switch on the front panel.
• Mic In 2: This 3-pin Euroblock connector lets you connect a microphone. A male Euroblock plug is included with the amplifier for connecting the wires of the mic cable. The input signal is always processed through a high pass filter (120Hz, 12dB/oct) and a Feedback Suppressor to prevent howling.
• Gain: This rotary control adjusts the volume of the microphone connected to the Mic In 2 input. A small slotted screwdriver is needed to adjust the gain.

DIP Switches: The amp features 8 DIP switches on the rear panel. These DIP switches let you configure the amplifier to suit your needs and application. The functions available are as follows:

Ducking: When the Ducking feature is enabled, the output volume of the stereo inputs is automatically reduced by 24dB, and mutes the other microphone input, when a signal from either of the microphone inputs is detected. This allows paging on the system without having to manually turn down the music coming from the stereo inputs. You can enable the Ducking feature for one or both of the mic inputs through the DIP switches.

Rack Mountable: With the optional RKH1 Rack-mount accessory kit, the MA2030 can be installed in a standard equipment rack. The amplifier will fit into a 1U rack space.

Optional DCP: The amplifier features an interface for adding an optional DCP1V4S Digital Control Panel. The wall-mounted DCP gives you remote source and volume control over the amp. An RJ-45 port is provided for the DCP interface. CAT5e cable is recommended.

Specifications:

THD+N (Stereo In to Speaker Out):

• 1 kHz, 15 W, 3Ω/4Ω: ≤ 0.1%
• 1 kHz, 30 W, 70V/100V: ≤ 0.2%

Frequency Response:

• Line In to Line Out: 20 Hz to 20 kHz (0 dB, -2.5dB, +1.0dB)
• Line In to Speaker Out (1W, 3Ω/4Ω): 50 Hz to 20 kHz (0 dB, -3.0dB, +1.0dB)
• Line In to Speaker Out (1W, 70V/100V): 90 Hz to 20 kHz (0 dB, -3.0dB, +1.0dB)

Crosstalk: ≤ -70dB

Dimensions: Width 8.478", Height 2.171" Depth 11.375" (13" w/AC cord)

Weight: 4.0 pounds
