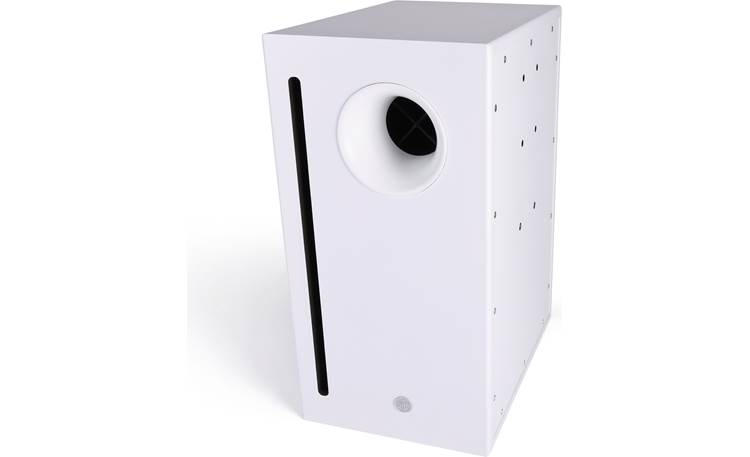

Front

1/4

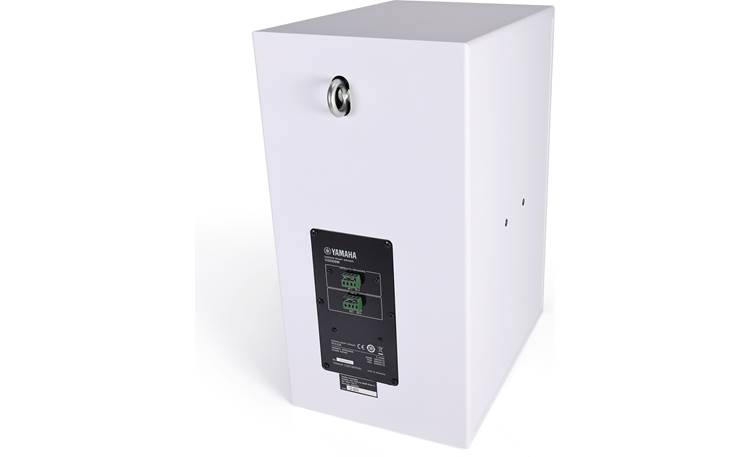

Back

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Item # 845VXS10SW

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$409.99 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Eric A.

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Big bass in a wall-mountable subwoofer

A Yamaha VXS10S subwoofer will bring out the bass in your background music with a big 10" driver. The bass-reflex cabinet can be surface mounted, so it doesn't sit on the floor where customers can trip over it. The subwoofer's 8-ohm setting allows use with commercial amps or regular home audio receivers. Dual voice coils make it perfect for reproducing stereo sources.

Product highlights:

10" surface mount subwoofer for commercial applications
bass-reflex cabinet for smooth, distortion-free low-frequency extension
dual voice coil configuration supports stereo sources
200 watts program power per voice coil (200 + 200)
frequency range: 45-250Hz
sensitivity: 96 dB
4-pin Euroblock input connector
4-pin Euroblock satellite output connectors for a pair of full-range speakers
protective power limiting built in
can be mounted in horizontal or vertical configuration to suit your space
- wall-mount hardware supplied
10-1/4"W x 19-3/4"H x 15-5/16"D
weight: 36.4 lbs.
warranty: 1 year
MFR # VXS10SW
Item # 845VXS10SW

What's in the box:

Yamaha VXS10S owner's manual

Surface-mount passive subwoofer

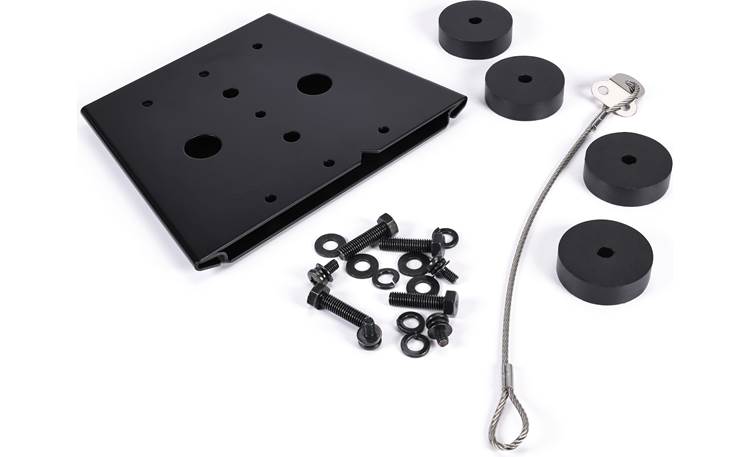

Speaker bracket
Wall bracket
4 Rubber spacers
4 Hex-bolts
4 Lock washers
4 Flat washers
4 Phillips-head screws (lock-/flat- washers attached)
Security cable
Owner's Manual

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	1
Woofer Size (inches)	10
Tweeter Size (inches)	N/A
System Frequency Response	45-250
Maximum SPL	125
Number of Speakers Included	1
Power Handling
Power Rating	200
Peak Power Rating	0
70V Transformer Taps (watts)	None
100V Transformer Taps (watts)	None
8-ohm Bypass	No
Specs
Width (inches)	10-1/4
Height (inches)	19-3/4
Depth (inches)	15-5/16
Weight	36.4 lbs

Product Research

Features

10" Woofer: The Yamaha VXS10SW features a 10" cone woofer with dual 8Ω voice coils. Each voice coil can handle up 200 watts continuous and 400 watts peak. The 10" woofer can handle low frequencies from 45 to 250Hz.

Bass Reflex Enclosure: The Yamaha VXS10SW utilizes a bass reflex enclosure with a tuned port for greater efficiency and bigger bass response.

Euroblock Connectors: Input connection is conveniently provided by a removable euroblock connector (4-pin), providing secure connection via screw-down terminals and allowing a system to be pre-wired before installing the subwoofer for fast snap-on convenience. Separate connector terminals are available for the input and for the loop-through wires, making it easy to jumper the speaker signal to additional speakers. The input terminal plate provides strain relief for bare wire (up to 12 AWG) and conduit tube (up to 0.5").

Input Terminals: Terminals 2 (+) and 3 (-) are the input terminals of the loudspeaker.
Loop-Thru Terminals: Terminals 1 (+) and 4 (-) are the loop-thru terminals to output connection to other speakers.

Surface-Mount Bracket: The included surface-mount bracket system and hardware allow you to mount the subwoofer to a wall or ceiling.

Rubber Feet: Rubber feet are included if you simply want to mount the passive subwoofer on the floor.
