Features

Overview: The JBL Control 29AV is a 70/100 volt speaker designed for commercial applications, both indoor and outdoor. Its improved voicing allows for an extremely flat response, high-fidelity, and extended bandwidth from an 8" Kevlar woofer and 1" titanium diaphragm compression driver, providing up to 110˚ of horizontal and 85˚ of vertical coverage. It can be run in either 70 or 100 volt applications and includes an 8Ω Thru setting as well. Other features include a highly weather-resistant enclosure, JBL's SonicGuard overload protection, and flexible mounting options.

Enclosure: Designed for indoor and outdoor use, the Control 29AV series speakers have been maximized for weather resistance. They feature a high-impact polystyrene enclosure along with a thermoset composite coated grill with foam lining to minimize water incursion. The woofer is made of Kevlar with a butyl rubber surround and the compression driver's diaphragm is made of pure titanium. Input terminals are nickel/zinc coated  for rust-resistance and can have further protection from the included input terminal cover. The Control 29AV carries an IEC 529 IP-X4 splash-proof rating and exceeds MilSpec 810 for humidity, salt spray, temperature, and UV. It also passes Mil-Std-202F for salt spray.

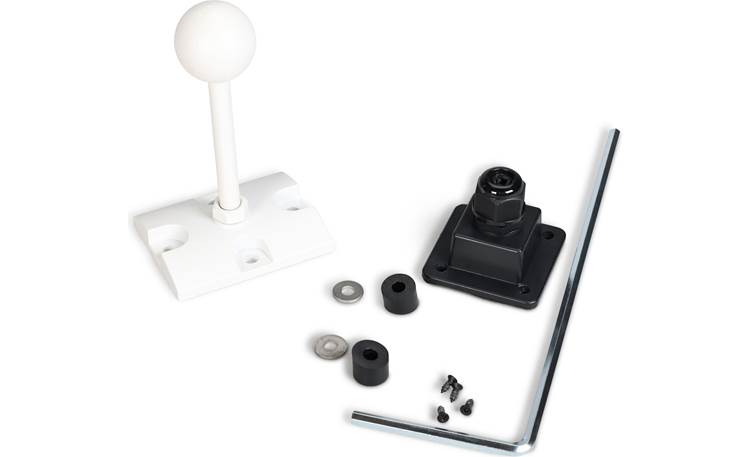

Mounting: JBL offers flexible mounting options for the Control 29AV speakers. Along with either vertical or horizontal surface mounting, the speaker can be wall or ceiling mounted using the included InvisiBall mounting hardware. The Control 29AV speakers have a removable rear socket cover allowing the ball of the mount to sit inside the speaker. The socket is then tightened, using the included 10" Allen key, via the access hole underneath the removable front grill emblem. The InvisiBall mount allows up to 41˚ of horizontal rotation and up to 36˚ of vertical rotation. For horizontal mounting, the high-frequency compression driver can be rotated 90˚ by removing and re-using the 12 mounting screws holding it in place. There are also ten 6mm attachment points around the speaker for suspension mounting and JBL's optional U-bracket.

70/100 Volt: The Control 29AV is designed primarily to be used in 70 and 100 volt applications, but also includes an 8 ohm bypass mode (Thru). Its top-quality, 110 watt, line distribution transformer is designed for minimal insertion loss and reduced saturation. JBL's exclusive SonicGuard overload protection offers full-range power limiting, to protect network and transducers, ensuring reliability while providing full fidelity sound. A tap setting adjustment-screw on the back of the speaker allows for the following 70 and 100 volt wattage options:

• 70 V: 14, 28, 55, and 110 watts, Thru
• 100 V: 28, 55, and 110 watts, Thru

Specifications:

• Frequency Response:
  • -10 dB: 37 Hz - 18 kHz
  • +3 dB: 43 Hz - 15 kHz
• Maximum SPL: 118 dB (short term), 112 dB (long term)
• Nominal Sensitivity: 90 dB
• Nominal Impedance: 8 Ohms
• Crossover Frequency: 2.5 kHz
• Crossover Type: 3rd order high-pass, 2nd order low-pass with impedance compensation
• Nominal Coverage Angle: 110˚ Horizontal, 85˚ Vertical
• Transducers:
  • Low Frequency: 8 inch
  • High Frequency: 1 inch
• Transformer Taps:
  • 70 V: 14, 28, 55, and 110 watts
  • 100 V: 28, 55, and 110 watts
  • Thru Position: 8Ω nominal
• Enclosure: High-impact polystyrene
• Grill: Thermoset composite coated steel
• Terminals: Terminal strip with set-screws, accepts up to 12 AWG wire
• Colors: Black or White
• Dimensions: Width - 12.0", Height - 20.50", Depth - 11.250"
• Net Weight: 26.8 lbs.
