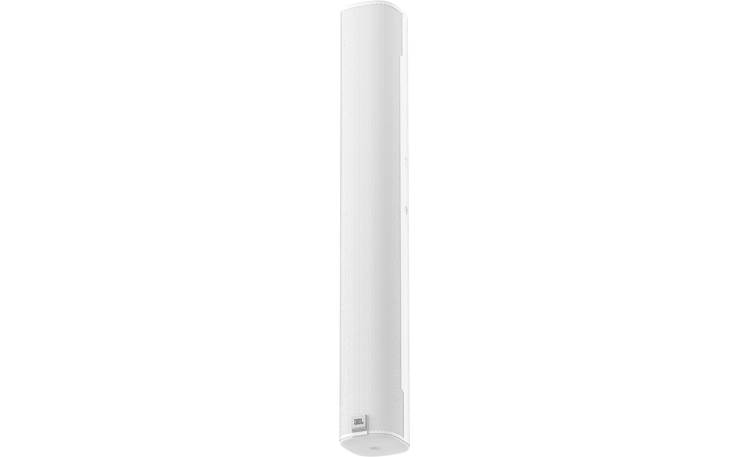

About the JBL COL600
Product highlights:
- two 5" x 2-1/4" racetrack-shaped woofers
- 1" tweeter located at the top of the cabinet
- tweeter is mounted 10° downward in cabinet for better listening area coverage with the speaker mounted flat
- multi-tap transformer for use in 70V/100V systems
- 70-volt taps: 2.5, 5, 10, and 20 watts
- 100-volt taps: 5, 10, and 20 watts
- 8-ohm bypass for use with traditional receivers and amplifiers
- handles 160 watts continuous program power at 8 ohms
- frequency response: 105-20,000 Hz (±3dB)
- sensitivity: 86 dB
- 111 dB maximum SPL
- coverage: 160° horizontal x 110° vertical
- IP54-rated dust- and splash-resistant design
- brackets included for two mounting options
- top and bottom L-brackets allow 95° of horizontal panning; can also be placed on sides of speaker
- tilting bracket allows mounting with a downward adjustment up to 10°
- recessed 4-pin Euroblock connector accepts up to 14-gauge wire and allows close-to-the-wall installation
- weatherproof grille and protective input terminal cover
Dimensions and warranty:
- 4-1/16"W x 23-3/8"H x 3-1/2"D
- weight: 7.8 lbs.
- warranty: 5 years speakers, 2 years enclosure
- MFR # JBL-COL600-WH
- Item # 855CO600W
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- 70/100V Column speaker (white)
- Terminal cover (installed)
- Swivel assembly (speaker plate & wall plate)
- 2 L-Brackets
- Trim cover
- 4-Pin Euroblock connector (installed)
- Three M6x28mm screws w/installed flat- and lock-washers
- Three M6x20mm screws w/installed flat- and lock-washers
- Three M6x12mm screws w/installed flat- and lock-washers
- Specifications
- Installation guide
More details on the JBL COL600
Features & specs
| General | ||
|---|---|---|
| Drivers Per Speaker | 3 | |
| Woofer Size (inches) | 5" x 2.25" | |
| Tweeter Size (inches) | 1 | |
| System Frequency Response | 105Hz-20kH | |
| Maximum SPL | 111 | |
| Number of Speakers Included | 1 | |
| Power Handling | ||
| Power Rating | 80 | |
| Peak Power Rating | --- | |
| 70V Transformer Taps (watts) | 2.5W, 5W, 10W, 20W | |
| 100V Transformer Taps (watts) | 5W, 10W, 20W | |
| 8-ohm Bypass | Yes | |
| Specs | ||
| Width (inches) | 4-1/16 | |
| Height (inches) | 23-3/8 | |
| Depth (inches) | 3-1/2 | |
| Weight | 7.8 lbs | |
Product Research
Features
Overview: The JBL COL600 Slim Column Speaker is a slim, compact column speaker that provides a combination of stylish design and outstanding performance. The JBL slim column speaker provides wide horizontal and narrow vertical coverage and features a 10° down-tilt mounting option for optimum coverage of most listening areas. The COL600 also features a built-in 70/100V transformer with an 8Ω bypass option.
IP54 Rated: The COL600 is IP54 rated against dust and water ingress. The drivers are water-treated, the grille has a water-backing, and the input terminal includes a screw-down cover for added protection.
Drivers: The JBL COL600 slim column speaker includes two 5" x 2.25" "racetrack" woofers, providing maximum radiating area in a column form factor, and a 1" tweeter. The tweeter is located on top of the column for less obstructed coverage of the listening space. The tweeter is mounted in a down-angle fashion, allowing down-tilted coverage, even with the column speaker mounted flat against a wall.
70/100V: The COL600 column speaker features a built-in 20W transformer for 70 or 100V operation, and includes an 8Ω bypass setting. In the 8Ω mode, the column speaker can handle up to 80W RMS (320W peak). The tap setting dial is located on the rear panel and provides the following tap settings:
- 70V: 2.5W, 5W, 10W, and 20W
- 100V: 5W, 10W, and 20W
- 8Ω: Bypass
Connections: Wiring to the column speaker is made through a 4-pin Euroblock connector that's mounted inside a recessed opening on the rear panel and protected by a screw-down cover. The 4-pin connector can accommodate wire up to 14-gauge, with two pins acting as the input and two pins providing a pass-thru connection for additional optional speakers.
Mounting: The JBL column speaker includes brackets for two types of mounting options. Two L-brackets are provided that can be installed either on the top and bottom, for 95° of horizontal pan aiming, or on the left and right sides. Both L-bracket mounting options allow for close-to-the-wall installation. A low-profile swivel (pan)/tilt wall bracket is also included, letting you mount the speaker either at 0° or with a 10° down-tilt.
Specifications:
- Power Handling (8Ω):
- 2 Hours (program power): 160W continuous
- 2 Hours (pink noise): 80W, 320 peak
- 100 Hours (ping noise): 60W, 240W peak
- Frequency Range (-10dB): 70Hz - 20kHz
- Frequency Response (-3dB): 105Hz - 20Hz
- Sensitivity (2.83V @ 1m): 86 dB
- Coverage Pattern (1kHz-4kHz average):
- Vertical: 110°
- Horizontal: 160°
- Nominal Impedance: 8Ω
- Drivers: (2) 5" x 2.25" woofers, (1) 1" tweeter
- Enclosure: PC & ABS, UL94-V0 flammability rating
- Ingress Protection: IP54 (per IEC60529) dust and water protected with terminal cover installed and no up-tilt cabinet aiming.
- Dimensions: Width = 4.050", Height = 23.375", Depth = 3.484"
- Weight: 7.8 lbs.
