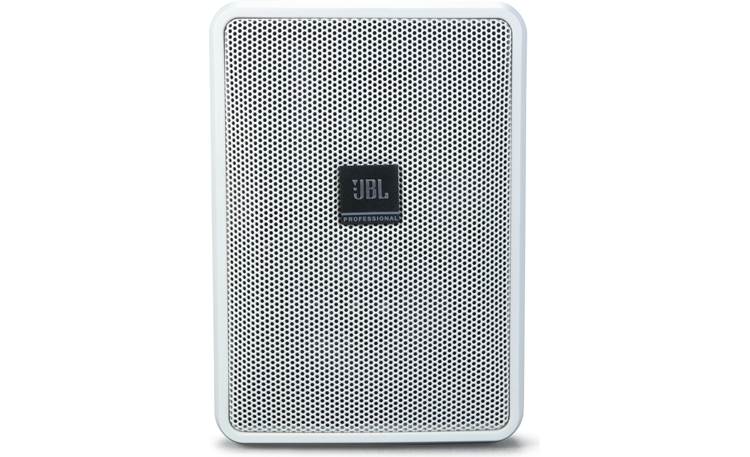

About the JBL Control 23-1

Product highlights:
- 3" fiberglass woofer with butyl rubber surround
- 1/2" PEI tweeter with fluid cooling
- handles up to 100 watts continuous program power
- frequency response: 95-19,000 Hz (± 3 dB)
- multi-tap transformer for 70V or 100V systems
- 1.8, 3.7, 7.5, and 15-watt taps
- 8-ohm bypass for use with home stereo equipment
- weather-resistant enclosure and transducers
- high-impact polystyrene enclosure material
- built-in InvisiBall® mounting system allows vertical and horizontal rotation of speakers
- cabinet and grille can be painted to match your decor
- impedance: 8 ohms
- 5-5/8"W x 7-15/16"H x 4-7/16"D
- weight: 4 lbs.
- warranty: 5 years speakers, 2 years enclosure
- MFR # Control 23-1WH
- Item # 855CTL231W
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JBL Control 23-1 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Commercial indoor/outdoor speakers

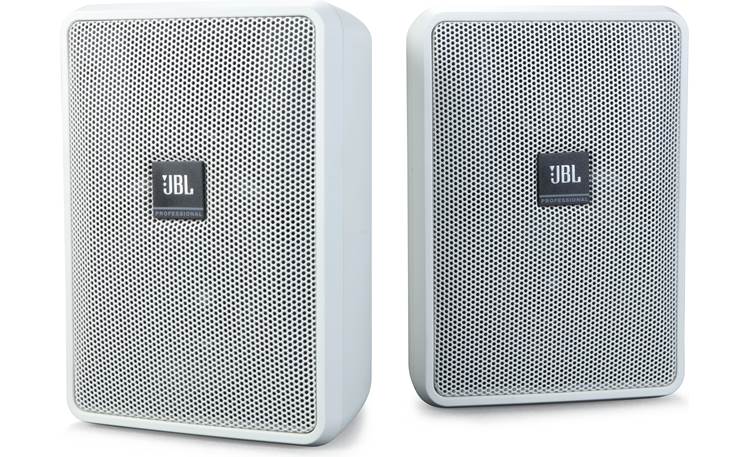

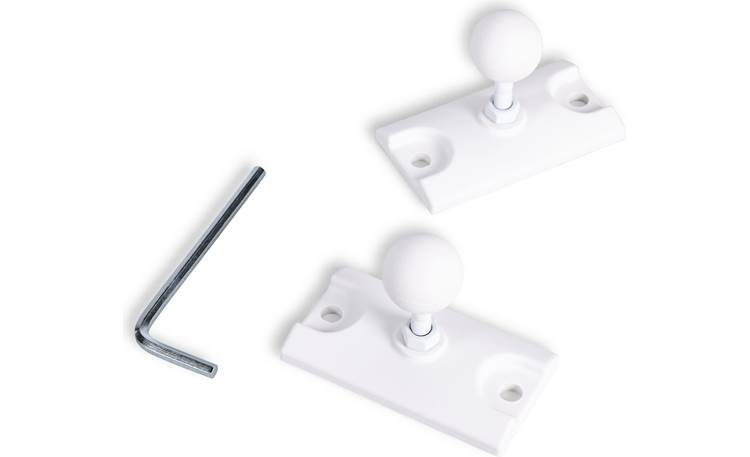

- 2 Mounting brackets
- Hex key
- Owner's Manual
More details on the JBL Control 23-1

Features & specs
General | ||
---|---|---|
Drivers Per Speaker | 2 | |
Woofer Size (inches) | 3 | |
Tweeter Size (inches) | 0.5 | |
System Frequency Response | 95-19k | |
Maximum SPL | 103 | |
Number of Speakers Included | 2 | |
Power Handling | ||
Power Rating | 50 | |
Peak Power Rating | 0 | |
70V Transformer Taps (watts) | 1.8, 3.7, 7.5, 15 | |
100V Transformer Taps (watts) | 3.7, 7.5, 15 | |
8-ohm Bypass | Yes | |
Specs | ||
Width (inches) | 5-5/8 | |
Height (inches) | 7-15/16 | |
Depth (inches) | 4-7/16 | |
Weight | 4 lbs |
Product Research
Features
Control Contractor Series Surface Mount Speaker: The Control 23-1 is a two-way surface-mount loudspeaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary design that fits into a wide range of decors. This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/ outdoor foreground/background music (and/or paging) speaker is required.
Two-Way Speaker Design: The Control 23-1 indoor/outdoor speaker employs a 0.5" PEI horn-loaded tweeter and a 3" woven fiberglass cone woofer for high fidelity sound performance. The horn-loaded 0.5" tweeter features a PEI diaphragm, low-viscosity ferro-magnetic fluid, and a lightweight Kapton voice coil former. The 3" woven-fiberglass cone features a pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. Its speaker design ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
- 0.5" Tweeter: The horn-loaded 1" tweeter's low viscosity ferro-magnetic fluid increases voice coil cooling for higher long-term power handling. The PEI diaphragm delivers a smooth high frequency sound quality. A light weight Kapton voice coil former increases durability while providing better high frequency response extension. All these factors also contribute toward making the driver especially rugged for outdoor and other stressful applications. The Control 23-1's horn-loaded tweeter provides an even 100° x 100° coverage area to ensure excellent sound quality throughout the listening area.
- 3" Woofer: The 8" woven fiberglass cone woofer provides durability and weather capable performance. The light weight high temperature fiberglass voice coil former and high temperature voice coil wire ensures stable performance under long-term high-power working conditions while also providing high sensitivity and high power capability. The pure butyl rubber surround delivers clean sound and ruggedness, while terminating its circumference in JBL's WeatherEdge (a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements). Cone geometry is optimized for smooth frequency response and good off-axis performance, while an FEA optimized motor construction and linear suspension spider helps to lower harmonic distortion

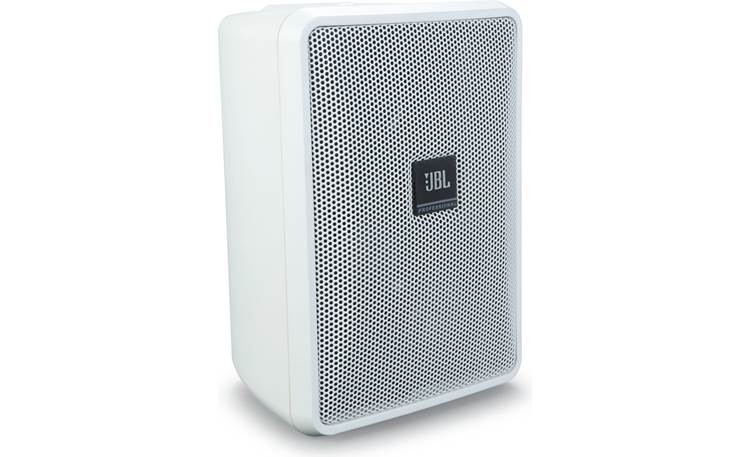

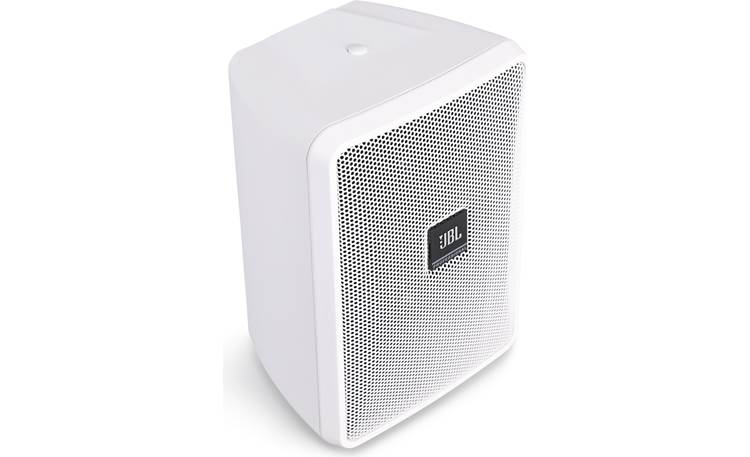

Weather Resistance Enclosure: In addition to the driver designs contributing toward a high degree of weather resistance, the cabinet provides excellent endurance against sun, salt and moisture. Weather resistance is maximized by the Control 23-1 speaker's high-impact polystyrene (HIPS) cabinet and heavily zinc-plated grille. The Control 23-1 is available in a black or white finish; the cabinet and grille also accepts a variety of paints to match any décor. The Control 23-1 indoor/outdoor speaker is IP-44 rated and exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. It also passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray.
70V/100V Compatible: Control 23-1 includes a 30W multi-tap transformer for use in either 70V or 100V distributed-line systems. Taps are selected with a rotary switch located on the rear-panel.
- 70V Taps: 15W, 7.5W, 3.7W, 1.8W
- 100V Taps: 15W, 7.5W, 3.7W
Screw-Down Terminals: Speaker wire connection is made via weather-capable, screw-down terminals.
Mounting Options: The unique InvisiBall mounting hardware is included, making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation. And, because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility.
SonicGuard Protection: JBL's exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound.
