JBL SLP14/T 4-1/2" 2-way low-profile commercial on-wall speakers (White)

Name: JBL SLP14/T
Brand: JBL Pro
SKU: 855SL14WH
Price: 338.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Item # 855SL14WH

These on-wall speakers deliver clear background music and announcements and don't require a ton of space to install.

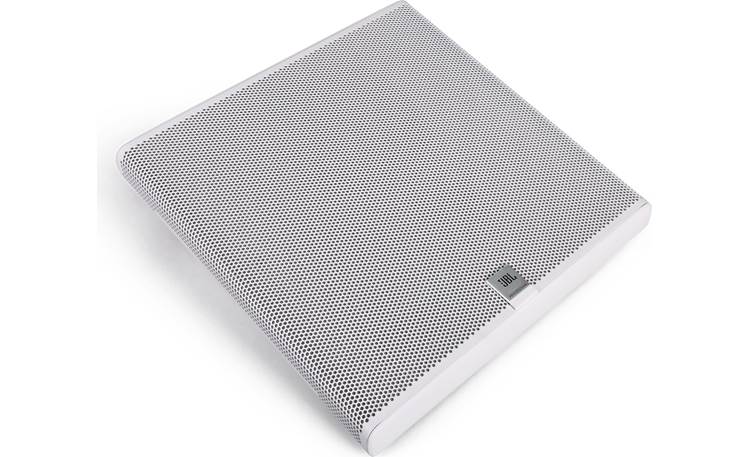

Front

1/5

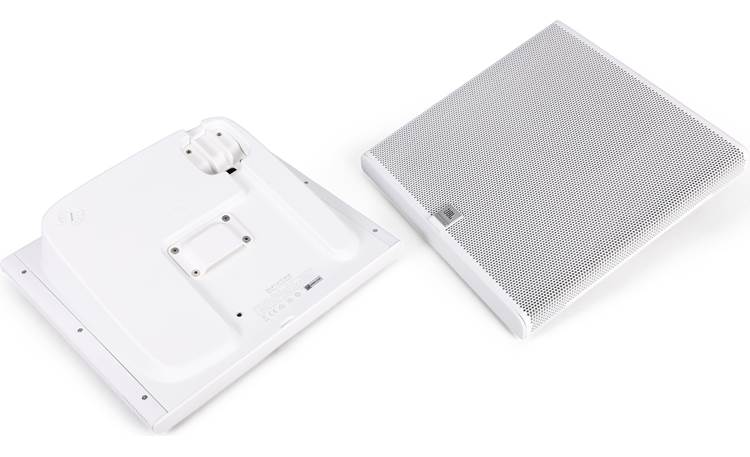

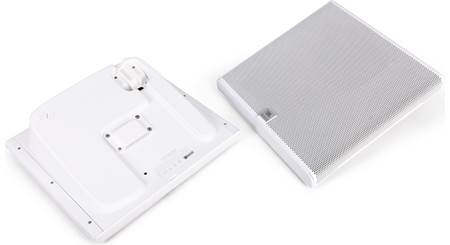

Back

2/5

Only at Crutchfield

3/5

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

These on-wall speakers deliver clear background music and announcements and don't require a ton of space to install.

Item # 855SL14WH

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$338.00 pair

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Eric A.

DIY and save — with our help

We help businesses across the country install their own commercial A/V systems without involving costly third-party installers. Ordering is easy, and you get FREE lifetime support.

Get a free system design

1-800-315-2758

Submit a request

Low-profile on-wall speakers

The ingenious design of the JBL SLP14/T speaker lets you flush-mount it on a wall and cover a broad area with sound. Its 4-1/2" woofer and 1" tweeter deliver clear background music and announcements, and the built-in transformer tap lets you drive several speakers with a single commercial-grade amplifier.

The speaker's cabinet imparts a 15-degree downward tilt, so it directs sound toward listeners when mounted above your seating area. A built-in cable management channel lets you flush-mount it to the wall without wires getting in the way, and a convenient slide-on mounting bracket is included. The speaker is rated IP44 (resistant to particle ingress and water splashes), and includes a rain cover that protects the terminal compartment in outdoor applications.

Product highlights:

two-way surface-mount speaker for a commercial distributed audio sound system
4-1/2" polypropylene cone woofer and 1" titanium dome tweeter
multi-tap transformer for use in 70V/100V systems
- 70-volt taps: 3.2, 6.3, 12.5, and 25 watts
- 100-volt taps: 6.3, 12.5, and 25 watts
- 8-ohm bypass for use with traditional receivers and amplifiers
handles 100 watts continuous program power at 8 ohms
frequency response: 80-18,000 Hz
sensitivity: 85 dB
108 dB maximum SPL
coverage: 140° horizontal x 120° vertical
design imparts 15° downward tilt for optimal coverage
built-in cable-management channel allows flush on-wall mounting
included slide-in wall bracket
rain cover protects terminal compartment in outdoor applications
paintable powder-coated weatherproof grille

Dimensions and warranty:

11-5/16"W x 10-7/8"H x 4"D (measured by Crutchfield)
weight: 6.2 lbs.
warranty: 5 years speakers, 2 years enclosure
MFR # JBL-SLP14/T-WH
Item # 855SL14WH
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

JBL SLP14/T owner's manual

Two 70/100V on-wall loudspeakers (white)
Two 4-pin Euroblock connectors (installed)
2 Mounting brackets
Specifications sheet
Installation guide

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	2
Woofer Size (inches)	4.5
Tweeter Size (inches)	0.79
System Frequency Response	80Hz-18k
Maximum SPL	108
Number of Speakers Included	2
Power Handling
Power Rating	100
Peak Power Rating	---
70V Transformer Taps (watts)	3.2W, 6.3W, 12.5W, 25W
100V Transformer Taps (watts)	6.3W, 12.5W, 25W
8-ohm Bypass	Yes
Specs
Width (inches)	11-5/16
Height (inches)	10-7/8
Depth (inches)	4
Weight	6.2 lbs

Product Research

Features

On-Wall Speaker: The JBL SLP14/T is a 2-way on-wall loudspeaker that can provide rich, detailed sound with broad, consistent coverage in a sleek, low-profile design. The elegantly finished speaker is designed for flush-mounting to a wall and features a 15° down-tilted angle that can provide a wide 140° (h) x 120° (v) coverage pattern. The SLP14/T can be installed indoors or outdoors, and is an ideal choice for restaurants, hotels, resorts, retail stores, and any application requiring a high-quality speaker with a discreet yet elegant look.

2-Way Driver: The SLP14/T features a 4.5" woofer, with a polypropylene cone and a 1" Kapton former voice coil, and a coaxially-mounted 0.79" titanium dome tweeter, with a neodymium magnet and an aluminum former.

Enclosure: The JBL SLP14/T is housed in a durable polycarbonate/ABS sealed enclosure that carries a UL94V-0 flammability rating. The 2-way driver is protected by a powder-coated zinc-plated grille. The enclosure and grille are both paintable.

70/100V Transfomer: The JBL on-wall speaker features a 25W transformer for installation in 70V or 100V applications. A tap dial on the back of the speaker provides the following selections:

70V: 25W, 12.5W, 6.3W, 3.2W
100V: 25W, 12.5W, 6.3W
8Ω: An 8-ohm bypass setting allows the speaker to be powered conventionally:
- 100W continuous program power (2hrs.)
- 50W (200W peak) continuous pink noise (2hrs.)
- 30W (120W peak) continuous pink noise (100hrs.)

Terminals: A 4-pin Euroblock connector, accepting wire up to 14-gauge, provides the connection to the speaker. Two pins are use as the input, while the two additional pins let you daisy-chain the signal out to additional speakers. A protective cover is provided to help shield the connector from rain or water ingress. With the cover installed, the SLP14/T carries an IP44 waterproof rating for outdoor use (per IEC529).

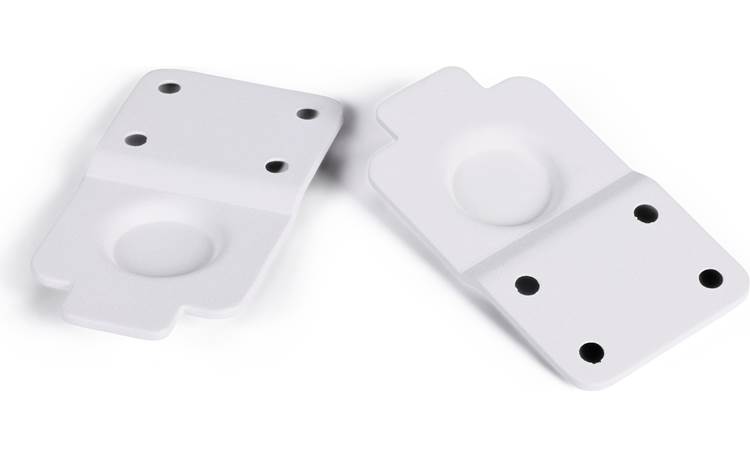

Monting: The JBL SLP14/T includes a wall-mount bracket that allows the speaker to simply slip over it, making installation and removal of the speaker easy.

Note: Hardware for installing the mounting bracket to a wall is not included and must be purchased separately.

Loading accessories...

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

JBL SLP14/T

4-1/2" 2-way low-profile commercial on-wall speakers

White

In stock

5.0 out of 5 stars
1 review

$338.00 pair
Loading...

Adding...

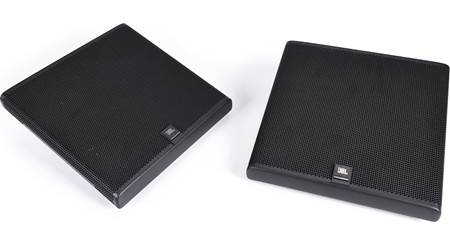

JBL SLP12/T

3" low-profile commercial on-wall speakers

Black

In stock

5.0 out of 5 stars
3 reviews

$238.00 pair
Loading...

Adding...

JBL Control 23-1

3" commercial weather-resistant surface mount speakers

Black

In stock

5.0 out of 5 stars
5 reviews

$300.00 pair
Loading...

Adding...

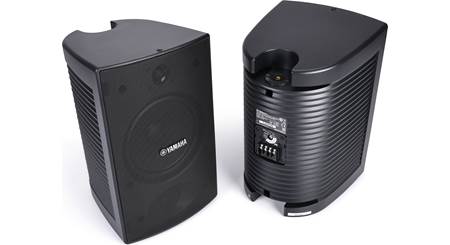

Yamaha VS6
