About the Sony XM-GS400
Brings you the music
Brings you the music
You'll get 70 watts RMS to each of your front and rear speakers with Sony's XM-GS400 4-channel amplifier driving your system. Or you can switch the amp into 2-channel mode to power a couple of subs with 160 watts RMS each. This compact amp sports a hefty heatsink that gets rid of the heat that's generated when you're pushing your system hard. The XM-GS400 also uses a cooling fan, which automatically adjusts its speed for the heat it detects, ensuring this small amplifier will always produce the power that's expected.
More features

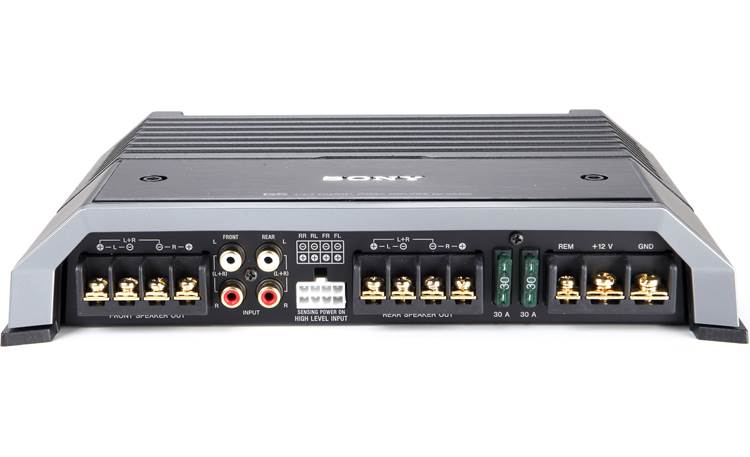

All connections are located on one side of the amp, which makes wiring simpler and neater. The tuning controls sit protected under a cover so they won't get inadvertently moved. You'll find separate controls for the front and rear channels on this versatile amp. You can run two speakers and a sub, for instance, and have the correct high-pass, low-pass, and subsonic filters available to get the tone right. You'll appreciate the bass boost, if you need a little extra punch. Sony protects this amp with a 3-year warranty, and that says a lot.
Product highlights:
- 4-channel car amplifier
- 70 watts RMS x 4 at 4 ohms (80 watts RMS x 4 at 2 ohms)
- 160 watts RMS x 2 in bridged mode (4-ohm stable in bridged mode)
- CEA-2006 compliant
- separate variable high- and low-pass filters for front and rear channels (40-500 Hz, 12 dB per octave)
- separate variable subsonic filters for front and rear channels (6-70 Hz, 12 dB/octave)
- separate bass boosts for front and rear channels (0-10 dB at 40 Hz)
- preamp and speaker-level inputs
- cooling fan
- fuse rating: 30A x 2
- 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- 10-3/4"W x 2-1/8"H x 8"D
- warranty: 90 days
- MFR # XM-GS400
What's in the box:
- Refurbished 4-channel amplifier
- 4" Speaker level input harness
- Two 30 amp ATO fuses (installed)
- Four 1/2" Self-tapping screws
- Operating instructions (English/ French/ Spanish)
- Warranty information
Reviews (6)
Customer reviews for Sony XM-GS400
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Sony XM-GS400
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
70 x 4 | |
| Peak Power Output (Watts x Channels) | 175 x 4 | |
| Power at 2 Ohms (Watts x Channels) | 80 x 4 | |
| Bridged Power (Watts x Channels) | 160 x 2 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Minimum Impedance | 2 | |
| Best Frequency Response | 10-100k Hz | |
| THD at Rated RMS Power | 1% | |
| Signal to Noise Ratio | 93 dB | |
| Input Voltage | 14.4v | |
| Features | ||
| Amplifier Class | Not Given | |
| Low-Pass Crossover Frequency | 50-300 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 50-300 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | 0-10 dB | |
| Bass Boost Frequency | 40 Hz | |
| Fan Cooled | Yes | |
| Fuse Rating | 60 | |
| Speaker Level Inputs | --- | |
| Preamp Outputs | No | |
| Width (inches) | 10-3/4 | |
| Height (inches) | 2-1/8 | |
| Depth (inches) | 8 | |
| Parts Warranty | 90 Days | |
| Labor Warranty | 90 Days | |
Product Research
Features
Overview: The XM-GS400 is is a four channel amplifier with independent controls for the front and rear sections. Both the front and rear sections are bridgeable, so the amp can be used in 4-channel, 3-channel, or 2-channel mode.
Protection Circuitry: The amp has three protection circuits:
- Thermal: turns the amp off when the operating temperature is too high
- Short circuit: turns the amp off when the speaker outputs are short-circuited
- DC Offset: turns the amp off when it generates direct current
Crossover: The front and rear sections of the amp have independent crossover controls:
- Mode: 3-position switch; Low Pass, Off (crossover is bypassed), High Pass
- Frequency: 50-300 Hz; continuously variable
Subsonic Filter: The front and rear sections of the amp also have independent subsonic filter controls. The cutoff frequency is continuously variable from 6 Hz to 70 Hz.
Bass Boost: For added low frequency output, the amplifier has bass boost circuits centered at 40 Hz, variable from 0 to +10 dB. There are separate bass boost controls for the front and rear amplifier sections.
Power/Ground Terminals: The power and ground screw terminals are 0.55" wide.
Remote Terminal: The remote turn on screw terminal is 0.35" wide.
Speaker Outputs: Each speaker output screw terminal is 0.37" wide.
Speaker-level Input Harness: An 8-pin speaker level input harness is included, allowing you to easily connect the amplifier to a factory radio or a receiver without preamp outputs.
Auto Turn-on: When using the speaker level inputs, the amp will automatically turn on when it senses an input signal.
