Crown XTi 6002 Power amplifier — 1200W x 2 at 8 ohms, 6,000W x 1 at 4 ohms bridged

Name: Crown XTi 6002
Brand: Crown
SKU: 859XTI6002
Price: 2799.0 USD
Availability: LimitedAvailability
Rating: 5.0 (1 reviews)

Item # 859XTI6002

Crown's XTi 2 Series power amplifiers don't just make your speakers sing — they serve as vital lynchpins for...

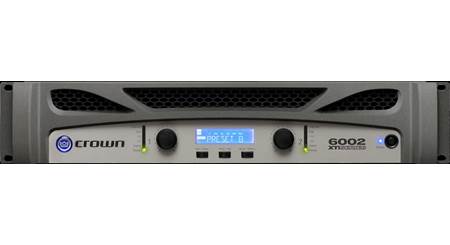

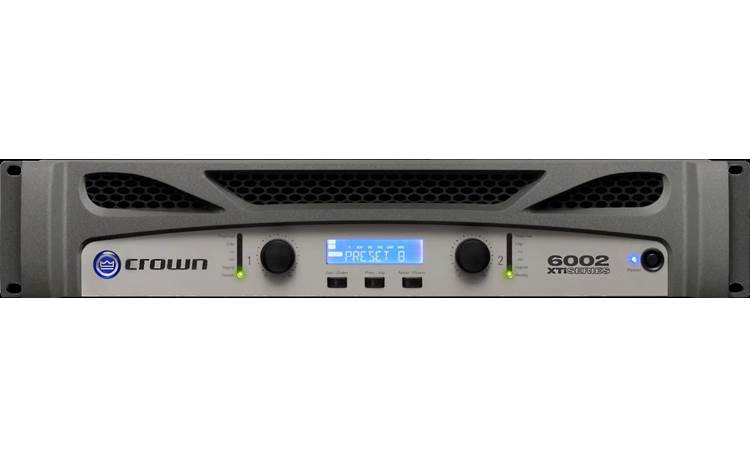

The front panel includes gain controls for each channel, LED indicators, an LCD screen with three menu buttons, and the power switch.

1/5

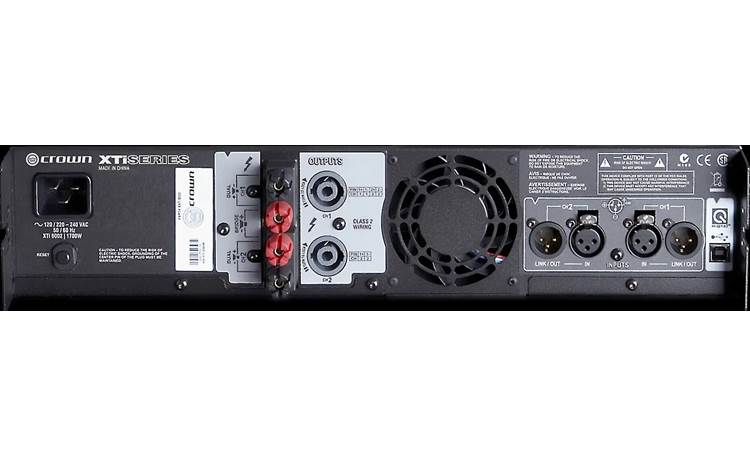

The rear panel offers a circuit breaker reset, XLR inputs plus Neutrik Speakon and binding post outputs, as well as loop-thru XLR Link/Out conectors.

2/5

Only at Crutchfield

3/5

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

All four models of Crown XTi Series 2 amplifiers.

Crown XTi 6002 The front panel includes gain controls for each channel, LED indicators, an LCD screen with three menu buttons, and the power switch.

Crown XTi 6002 The rear panel offers a circuit breaker reset, XLR inputs plus Neutrik Speakon and binding post outputs, as well as loop-thru XLR Link/Out conectors.

Crown XTi 6002 All four models of Crown XTi Series 2 amplifiers.

Crown's XTi 2 Series power amplifiers don't just make your speakers sing — they serve as vital lynchpins for...

Item # 859XTI6002

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$2,799.00

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Dominic DeVito

Power and protect your system

Crown's XTi 2 Series power amplifiers don't just make your speakers sing — they serve as vital lynchpins for your sound system, allowing your music to reach the masses without compromise or overexertion. The Crown name on the front of these amps ensures you've got a trustworthy power source that's loaded with innovative features, like advanced limiters that give you full control, plus integrated signal processing tools for dialing in the perfect tone. When it's time to raise the hair on the back of the crowd's neck, a Crown XTi 2 amplifier does the heavy lifting for you.

The rear of the XTi 6002 power amplifier offers XLR inputs, plus Speakon and binding post outputs, as well as loop-through XLR Link/Out output connectors.

Crown's most powerful XTi 2 Series amp

The Crown XTi 6002 amplifier revs up your system with 1200 watts per channel at 8 ohms, 2100 watts per channel at 4 ohms, and up to 6000 heavyweight watts in bridged mode. The proportional speed fan features three user-defined settings — normal, early, and full-speed — to help keep things cool within the front-to-rear airflow system. The universal tracking switch-mode power supply maintains efficiency and reliability. The rear panel features a built-in circuit breaker to protect against overload. Steel construction with a cast aluminum front panel helps keep this dynamo robust under repeated use.

Up front the amp boasts independent level control knobs and LEDs, an on/off switch, LCD screen, and three menu control buttons. You'll be able to monitor the amp's presets and processing status through the LCD screen.

The Crown XTi 6002 offers balanced XLR inputs, as well as binding posts and Neutrik Speakon® outputs for the speakers, plus XLR loop-thru connectors for connecting additional amps. Integrated cast aluminum rack handles promote smooth transport between the van and the gig, and these amps are eminently rackable and stackable.

Push it to the limit

Looking for a way to push your sound to the edge without going too far afield? Crown's Peakx Plus Limiter technology gives you total control over threshold, attack, and release times, so you can dial in your sound at the boundaries without worry about excess stress on your system. It's defeatable, just in case you want to work around it.

Built-in processing

The XTi 6002 gives you plenty of options for shaping your sound from the rack. It's got 6 parametric filters per channel for the input EQ, plus high- and low-pass crossovers. 8 parametric filters per channel on the output EQ give you further adjustments. You also get built-in delay and 30 total presets, 29 of which are user-defined.

Crown's SubHarmonic Synth feature takes your low-frequency signal, then "synthesizes" a new signal with the same characteristics, just one octave lower. The XTi 6002 sums the two signals and sends the result to your subwoofer. You can adjust for frequency, gain, and filter type to get the most out of your low end.

HiQnet for further adjustments

You can connect the XTi 2 Series amp to your laptop using the amplifier's USB plug, providing access to optional HiQnet Band Manager or Audio Architect software which you can download. These software programs allow you to tweak your amp's and system settings right from your laptop, and save the settings for future gigs. They can also give you real world feedback on how different components can fit into your system down the road.

Product highlights:

General Information:

2-channel power amplifier with built-in digital signal processing
power output:
- 1200 watts per channel at 8 ohms
- 2100 watts per channel at 4 ohms
- 3000 watts per channel at 2 ohms
- 4200 watts (mono) at 8 ohms in bridged mode
- 6000 watts (mono) at 4 ohms in bridged mode
frequency response: 20-20,000 Hz (-1 dB)
signal-to-noise ratio: 103 dB
total harmonic distortion: 0.5% (20-20,000 Hz)

Features:

independent right- and left-channel level controls
LCD screen with sel/prev/next buttons
rear panel circuit breaker/reset switch
digital signal processing:
- defeatable Peakx Plus Limiters for each channel
- input EQ: 6 parametric filters per channel
- high-pass and low-pass crossover filters
- output EQ: 8 parametric filters per channel
- 50 ms of total delay
- SubHarmonic Synth
proportional speed fan with front-to-rear airflow and three user-defined settings
initial power, DC voltage, short circuit, thermal, overload, and current limiting protection
front-panel LEDs indicate power, signal, -10dB and -20dB below clipping, ready, clipping, and temperature
integrated cast aluminum handles

Connections:

inputs: balanced XLR
outputs: binding posts and Neutrik Speakon
XLR Link/Out outputs to send signal to another amp
USB connection for HiQnet applications

Other Information:

weight: 24 lbs.
19"W x 3-1/2"H x 16-1/4"D (2 rack spaces)
warranty: 6 years (3 years if purchased before 1/1/20)
MFR # XTI6002
Item # 859XTI6002
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Crown XTi 6002 owner's manual

Power amp
AC power cord
Operation Manual

Researched by Crutchfield's Russ B.

Features & specs

General
Number of Channels	2
Power Class	---
Watts per channel 8 ohms	1200
Watts per channel 4 ohms	2100
Watts per channel 2 ohms	3000
Watts bridged	4200
Fan cooled	Y
DSP	Y
Filters	LPF, HPF
Rack spaces	2
Height (inches)	3-1/2
Depth (inches)	16-1/4
Width (inches)	19
Weight	24 lbs
Inputs
RCA	---
1/4"	---
XLR	2
Outputs
1/4"	---
Binding post	2
Spring post	---

Product Research

Features

Amplifier Presets: The Crown XTi2 Series amplifier comes pre-loaded with presets that makes it easy to configure the amplifier for your type of applications.

Stereo DSP Off (Preset 1): This is the default mode the amplifier is set to from the factory. The amplifier is configured for stereo mode with all processing disabled.
Bridge (Preset 2): Putting the amplifier in Bridge (bridge-mono) mode delivers the power of both amp channels into a single 8 or 4 ohm load.
Xover (Preset 3): Putting the amplifier in Xover mode enables a 1.2kHz 4th order (24dB/octave) filter that sends frequencies of 1.2kHz and below to Channel 1 output and frequencies of 1.2kHz and above to Channel 2 output.
BRG SUBS (Preset 4): Putting the amplifier in BRG SUBS (bridged subs) mode allows you to bridge the amplifier for use with a single 8 or 4 ohm subwoofer. The inputs are automatically summed, a 90Hz 4th order (24dB/octave) LowPass filter is enabled, and the output mode is put into bridge-mono mode.
SUBSYNTH (Preset 5): Putting the amplifier in SUBSYNTH mode allows you to turn on the SubHarmonic Synth feature for use with a subwoofer on both channels. The inputs are automatically summed, a 90Hz 4th order (24dB/octave) filter is enabled on both Channel 1 and Channel 2, and the SubHarmonic Synth feature is turned on at +12dB level.

Power Rating: Maximum average power in watts at 0.5% THD, 1 kHz.

Impedance Load	Dual Mode (stereo)	Bridged Mode (mono)
Impedance Load	Wattage	Wattage
2 ohm	3,000 watts	N/A
4 ohm	2,100 watts	6,000 watts
8 ohm	1,200 watts	4,200 watts

Peakx Limiters: Peakx Limiters provide the ultimate in performance and protection for your entire system. This advanced algorithm was specifically developed and tuned to work with this amplifier and power-supply to achieve higher SPL will less audible artifacts. This means less distortion, less shutdowns, and maximum safe power delivered to your speakers. The Peakx Limiters can be easily turned on or off by channel right from the front panel eliminating the need to be digging around in the back of the dark rack.

XLR Inputs/Outputs: The XTi2 Series amplifier provides two 3-pin XLR input connectors (one per channel). Two 3-pin XLR output connectors are provided (one per channel) to loop-thru signal from one amp to another.

Outputs: The XTi2 Series amp feature two 4-Pole Speakon output connectors that will accept 2-pole or 4-pole Speakon connectors. The Channel 1 Speakon connector is wired for both channels so it can be used for bridged-mono wiring or for stereo wiring of two speakers to a single Speakon connector. There is also one pair of binding posts per channel that will accept banana plugs or bare wire.

HiQnet USB Connector: The power amp's USB (type-B) port allows you to connect the amplifier to a computer for use with System Architect and Band Manager software (not included). The System Architect Software is required to have full control over all integrated processing features which can be downloaded from the following URL - http://hiqnet.harmanpro.com/. When controlling more than one XTi2 at a time you will need USB Hub. We recommend using a powered USB Hub.

Adjustable Fan Speeds: The XTi2 Series amplifiers employ flow-through, front-to-back ventilation and internal fans with forced-air cooling for rapid, uniform heat dissipation. You can tailor the fan speed to specific applications. The default mode is NORMAL and should work fine for most applications. EARLY mode turns the fan on sooner at a "lower" temperature, and FULL-SPEED mode turns the fan on full-speed full-time. Full-speed mode is not recommended for "dirty" environments.

LED Indicators: The power amplifier features ten LEDs (five for each output channel) to indicate status of amplifier.

Ready Indicator: Two green LEDs, one for each channel, illuminate when the amplifier is ready to produce audio.
Single Presence: Two green LED's, one for each channel, illuminate when the channel input signal exceeds -40dBu.
-10: Green LED flashes when output signal level exceeds -10dB below clip.
-20: Green LED flashes when output signal level exceeds -20dB below clip.
Clip: Two red LED's, one for each channel, illuminate when the channel's output is being overdriven.
Thermal: Two red LED's, one for each channel, illuminate when thermal compression begins.

Power: The Crown XTi 6002 amplifier requires AC power for operation and features a Nema 5-20 style AC power cord. A 20-amp rated circuit with a Nema 5-20 outlet will be required, or a 20-amp circuit and an optional plug adapter (sold separately) may be used.
