Mackie DRM12A DRM Series 12" arrayable powered PA speaker — 2,000 watts peak

Features

Overview: The Mackie DRM12A is an arrayable powered loudspeaker that can deliver class-leading power via its ultra-efficient Class-D amplifiers, along with acoustic correction and time-alignment using Mackie's Advanced Impulse DSP. The DRM12A features a single XLR line-level input jack and an XLR Thru jack for daisy-chaining multiple speakers. The Mackie powered loudspeaker can be flown in a suspended array, pole-mounted, or floor-mounted (additional hardware required - sold separately). The DRM12A is an ideal choice for large theaters, band PA systems, houses of worship, rehearsal spaces, gymnasiums, A/V rentals, and more.

Advanced Impulse DSP: The DRM12A incorporates Mackie's Advanced Impulse DSP that uses precision-tuned FIR (Finite Impulse Response) filters for acoustic correction and time-alignment, producing crystal clear, punchy sound typically found only in very large touring systems. This is accomplished by measuring the negative frequency response and time domain impacts that each transducer and horn in the system introduces, both on-axis and off-axis. The Advanced Impulse DSP then reverses and corrects each anomaly before the signal hits the speaker, allowing it to output a fully corrected flat and time-aligned signal.

Amps & Drivers: With 2000W total power, the Mackie DRM12A features a 12" high-excursion woofer, powered by a 1620W low-frequency power amplifier, and three 1" titanium diaphragm compression drivers, powered by a 380W high-frequency amplifier. Both amps are ultra-efficient class-D type.

Cabinet: The Mackie powered array speaker cabinet is constructed of road-worthy plywood, with internal bracing for optimal acoustic performance, and covered in a highly-durable textured coating. The four drivers are protected by a heavy-gauge, powder-coated steel grille. The DRM12A features a unique ported design that provides a smooth and punchy low-frequency response while providing cool air directly to the internal amplifiers.

Input & Output: The DRM12A features a single female XLR connector for a line-level signal input. An additional male XLR connector provides the Thru connection when using multiple DRM12A speakers.

Power: The DRM12A features a Neutrik PowerCon AC input designed for use with the AC power-to-Neutrik PowerCon cable provided. This features a twist-lock connection similar to Neutrik speaker cables. The powered array speaker also includes an AC Thru port for daisy-chaining power to multiple speakers. An IEC 3-pin-to-Neutrik PowerCon power cable and an AC Thru cable are both included.

Additional Controls & Display:

• LCD Display: A high-resolution color TFT LCD display can clearly display loudspeaker settings including Levels, EQ, Speaker Voicing Modes, and more.
• Control Knob: A push-button rotary encoder lets you scroll and select options on the corresponding LCD screen.
• Power: A rear-panel rocker switch is used to power the DRM12A On/Off.

DRM Control Dashboard: The rear-panel LCD Display and Control Knob are used for displaying and changing the configurable options in the DRM12A. Six Menu options include: Main, Array, Sub, EQ, Delay, and Config.

• Main: Displays the I/O Metering, Speaker Mode, Subwoofer HPF selection, EQ, and Delay settings. Only the Main Output Level can be adjusted on this screen.
• Array Mode: Lets you change the loudspeaker's voicing to best suit the application. Four Voicing Modes are available:
  • Single: This mode is used if only connecting a single DRM12A or a single DRM12A on each side of a stage or room.
  • Dual: This mode is used if connecting two DRM12As or two DRM12As per side.
  • 3-4: This mode is used if connecting three or four DRM12As in a setup.
  • 3-4 Long: This mode is used for the top one or two speakers of an array with three or four DRM12As per side. Long throw mode allows the sound from the upper speakers to reach an audience that is much farther away.
• Sub: Provides two options when pairing the DRM12A with a subwoofer:
  • DRM Sub: Sets the crossover point at 90Hz, when connecting an optional Mackie DRM18S subwoofer (sold separately).
  • Var: Lets you select the crossover point between 40-160Hz, when connection a subwoofer other than a Mackie DRM18S.
• EQ: A 3-band parametric EQ provides shelving High, peaking Mid, and shelving Low equalization. In addition, you can select Flat, for no equalization, or RTA (Real-Time Analyzer). RTA provides a "visual" frequency response of the current signal via 15 level bands. The three EQ bands include:
  • High: 2kHz to 20kHz (± 12dB)
  • Mid: 200Hz to 2kHz (± 12dB)
  • Low: 20Hz to 200Hz (± 12dB)
• Delay: Lets you time-align the sound from the DRM12A when used with multiple speakers in a system. Delay time can range from 0.0 ms (ft, m) to 100 ms (112.5 ft, 34.2 m).
• Config: Configuration options include:
  • Memory: Settings can be saved and recalled in up to 6 memory presets.
  • Lock PIN: Lets you lock and unlock the DRM's controls using a 4-digit PIN code (default: 1234).
  • Backlight: Changes the brightness of the LCD display. Options include: Off, Dim, and On.
  • Front LED: Determines if the front Power LED will illuminate or not when the PA speaker is on.
  • Reset: Resets all parameters back to their factory default.
  • About: Displays the current information about the loudspeaker, including the model, firmware version, DSP version, and temperature.

Protections: The Mackie DRM12A incorporates multiple safety features, including:

• Limiting: A compression circuit which helps protect it from damaging transient peaks. The compressor is designed to be transparent and isn't noticeable under normal conditions.
• Over Excursion: A subsonic filter circuit prior to the power amp prevents ultra-low frequencies from being amplified, which helps keep the driver from bottoming out.
• Thermal: If the amplifier overheats, a built-in thermal switch will activate, muting the signal. After it has cooled down sufficiently, the switch will reset itself and resumes normal operation.

Mounting: The Mackie DRM12A features 3 options for mounting:

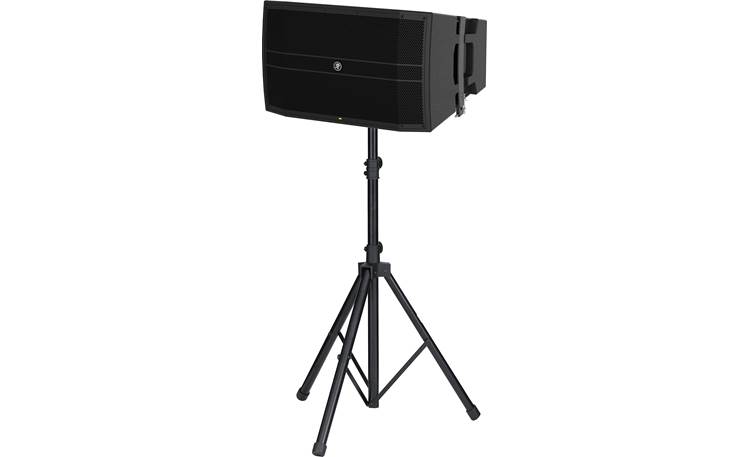

• Pole: Two 35mm pole-mount openings let you mount the PA speaker on a pole or tripod (both sold separately). One angles the speaker downward by 30˚ for output parallel to the floor, and one with a 30˚ downward angle to aim at the audience below the speaker.
• Fly (Array): The DRM12A can be suspended or flown using an optional Mackie FB100 Flybar Kit (sold separately). Integrated attachment points on each speaker allow them to be stacked on top of each other. The DRM12A speaker's angled cabinet design allows up to four DRM12As to be stacked in a flying array to form a convex shape, providing a wide audience coverage area. The DRM12A can also be flown in an array along with up to two Mackie DRM18S subwoofer cabinets using the FKDRM18S Flyware Kit (sub and kit sold separately). DRM12As can be stacked with up to 2 subwoofer(s) - either on top or on bottom. The DRM12A features seven M10 flypoints for use with Mackie's optional PA-A2 Eyebolt Kit (sold separately) for suspending a single speaker.
• Floor: One or more DRM12As can be placed on a floor or stage using the optional FB100 Flybar Kit. This allows the speaker array to sit a few inches above the floor with speakers angled upwards towards the audience.

Specifications:

• Frequency Response (-3dB): 65Hz - 20kHz
• Frequency Range (-10 dB): 50Hz - 20kHz
• Horizontal Coverage Angle: 110˚
• Vertical Coverage Angle: 20˚
• Maximum SPL Peak: 135dB
• Low Frequency Driver: 12"
• High Frequency Driver: (3) 1" Compression drivers
• Total Peak Power: 2000 Watts
• Low Frequency Amp:
  • Peak Power: 1620 Watts
  • THD: < 1%
  • Amplifier: Class D
• High Frequency Amp:
  • Peak Power: 380 Watts
  • THD: < 1%
  • Amplifier: Class D
• DSP: 4 Array modes
• Audio Input: (1) Balanced female XLR
• Audio Output: (1) Balanced male XLR
• Impedance:
  • Input: 8kΩ balanced
  • Output: 600Ω balanced
• Crossover:
  • Type: 24dB/octave
  • Crossover Frequency: 1.0kHz
• Input Power: 100 - 240VAC, 50 - 60Hz
• AC Connector: Locking Neutrik PowerCon (3-pin IEC on other end)
• Power Supply: Switchmode
• Enclosure: Plywood with black textured coating
• Grille: Perforated steel with black powder-coating
• Operating Temperature: 32 - 104˚ F
• Dimensions: Width: 24.7", Height: 15.2", Depth: 18.0"
• Weight: 55 lbs.
