About the Mackie DRM212-P

Product highlights:
- 2-way PA speaker
- 12" low-frequency driver
- 1.4" compression-driver tweeter
- handles up to 800 watts program, 1600 watts peak
- frequency range: 60-20,000 Hz
- impedance: 8 ohms
- 5/8" plywood enclosure with black textured finish
- NL-4 speakON input and output
- dual-angle pole mounting
- seven M10 fly points
- protection circuit for high-frequency driver
Specifications
- coverage: 90° horizontal; 60° vertical
- maximum SPL: 128 dB
- power rating: 800 watts RMS (1600 watts peak)
- frequency range: 70-18,000 Hz (-3 dB)
- impedance: 8 ohms
- dimensions: 14.7"W x 25"H x 16.2"D
- weight: 42 lbs.
- warranty: 3 years
- MFR # DRM212-P
- Item # 863DRM212P
What's in the box:
- Passive 12" 2-way loudspeaker
- Owner's manual
More details on the Mackie DRM212-P

Features & specs
General | ||
---|---|---|
Drivers per speaker | 2 | |
Woofer Size (inches) | 12 | |
Tweeter Size (inches) | 1.4 | |
System Frequency response | 60Hz-20kHz | |
Maximum SPL | 128 | |
Impedance | 8 | |
Inputs | (1) Female SpeakON | |
Width (inches) | 14-3/4 | |
Height (inches) | 25 | |
Depth (inches) | 16-1/4 | |
Weight | 42 lbs |
Product Research
Features
Overview: The Mackie DRM212-P is a professional 2-way passive loudspeaker featuring custom transducers housed in a touring-grade plywood cabinet designed for consistent performance in all applications. The Mackie DRM212-P can be floor- or pole-mounted and is equipped with M10 anchor points for suspending or "flying" the speaker.
Drivers: The Mackie DRM212-P features a 12" high-excursion woofer and a 1.4" titanium dome compression driver. A precision internal crossover @ 1.5kHz features premium-grade components and precise tuning for maximum clarity and performance.

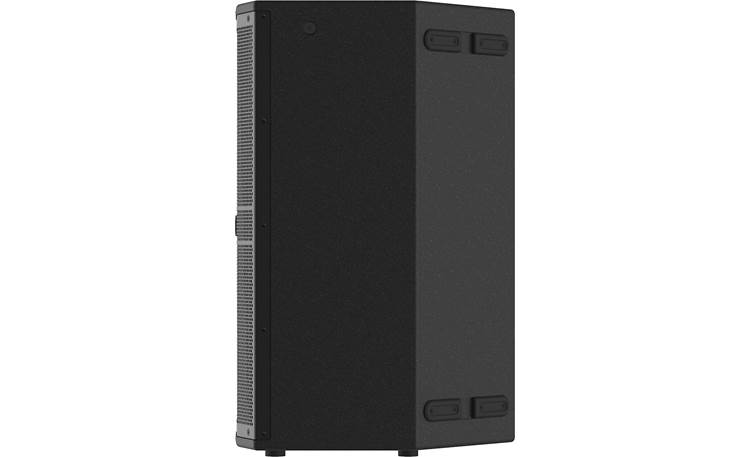

Cabinet: The Mackie passive loudspeaker cabinet is constructed of road-worthy plywood, with internal bracing for optimal acoustic performance, and covered in a highly-durable textured coating. The two drivers are protected by a heavy-gauge, powder-coated steel grille. The DRM212-P features a unique ported design that provides a smooth and punchy low-frequency response.
Input & Thru Connections The DRM212-P features a female SpeakON Input connector that gets connected to the output of a power amplifier (sold separately), and a female SpeakON Thru connector (output) for daisy-chaining multiple speakers together.

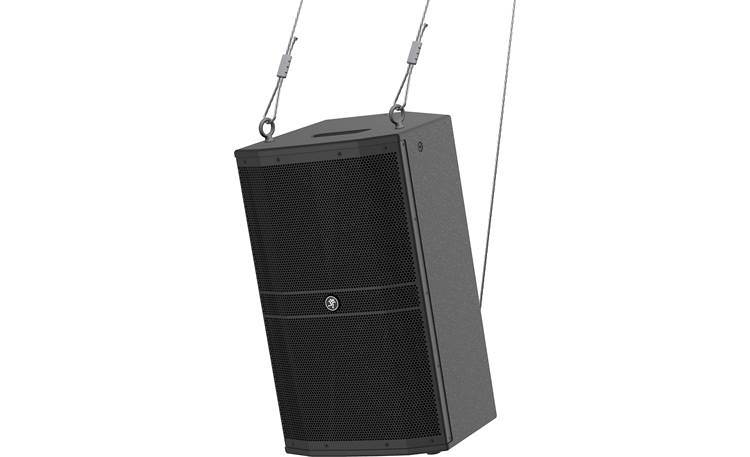

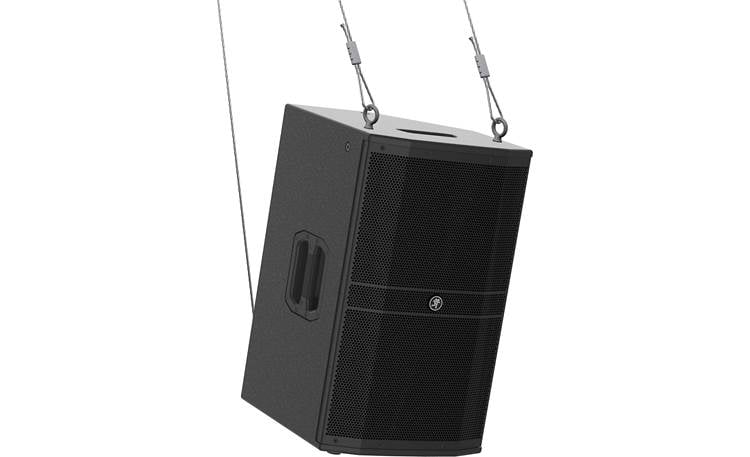

Mounting & Portability: The Mackie DRM212-P features two 35mm pole-mount openings, one vertical and one at a 7˚ downward angle, that lets you mount the loudspeaker on a pole or tripod (both sold separately). The DRM212-P can be suspended vertically using (at least) three of the ten M10 mounting points. The Mackie PA-A2 Eyebolt kit (sold separately) is an ideal option when suspending the speaker. The DRM212-P can also be placed upright on a floor or stage or can be set on its side horizontally as a stage monitor with a 50˚upward angle. Three convenient carry-handles (one on each side and one on top) are provided for portability.
Specifications:
- Frequency Response (-3dB): 60Hz - 20kHz
- Frequency Range (-10 dB): 50Hz - 20kHz
- Horizontal Coverage Angle: 90˚
- Vertical Coverage Angle: 60˚
- Maximum SPL Peak: 128dB
- Low Frequency Driver: 12"
- High Frequency Driver: 1.4" Compression driver
- Power Handling:
- Peak: 1600 Watts
- Program: 800 Watts
- Speaker Input: (1) Female SpeakON
- Speaker Thru: (1) Female SpeakON
- Nominal Impedance: 8Ω
- Crossover:
- Type: 24dB/octave
- Crossover Frequency: 1.5kHz
- Enclosure: Plywood with black textured coating
- Grille: Perforated steel with black powder-coating
- Operating Temperature: 32 - 104˚ F
- Dimensions: Width: 14.7", Height: 25.0", Depth: 16.2"
- Weight: 42 lbs.
