Features

Overview: The Mackie Thump212 is a portable powered loudspeaker designed for live use in small venues and performance centers. With two input channels that accept mic- or line-level signals and an 1/8" auxiliary input all being driven by 1400 watts of power (peak), the Thump212 is perfect for performing musicians, DJs, schools, and houses of worship.

Drivers: The Mackie Thump212 features a 2-way driver design with a 12" woofer and a 1" polymer compression driver housed in a bass-reflex enclosure.

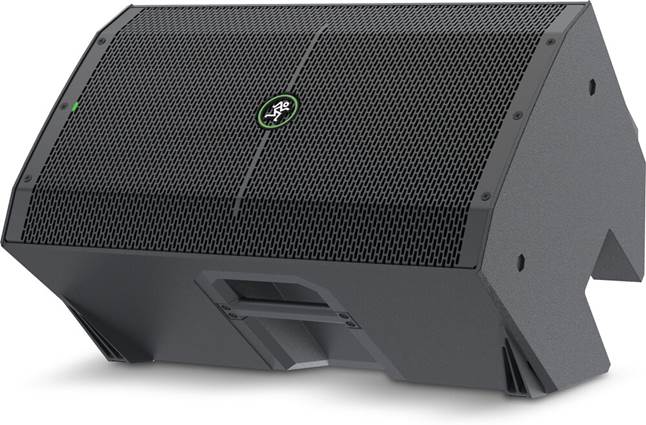

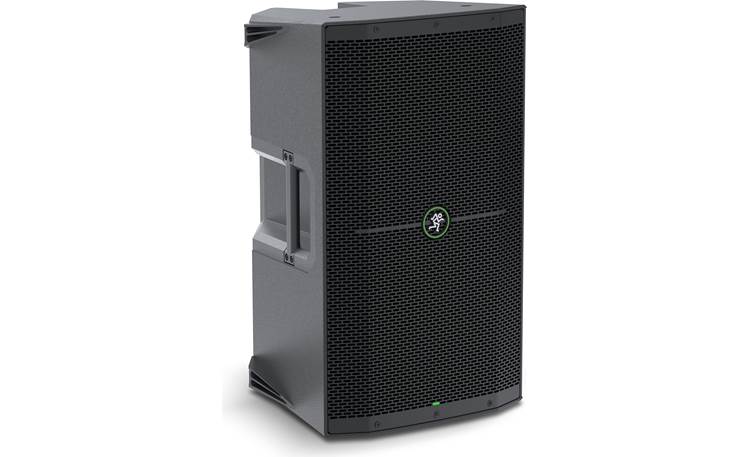

Chassis: Designed for portability and durability, the Thump212 features a rugged polypropylene chassis with a textured finish and a perforated metal grille. It includes three built-in carry-handles and a standard 35mm socket for pole-mounting.

1400W Ultra-efficient Class-D Amplification: The Thump212 features two built-in Class-D amplifiers; a low-frequency power amp providing 1200W (peak) to the woofer and a high-frequency power amp providing 200W (peak) to the 1" compression tweeter. Class-D amps are more efficient and lightweight, with far less waste heat produced versus competing designs.

Stage Monitor: The Thump212 can be used as a stage monitor. Beveled rear panels allow it to lay on either side at a 40° upward angle. The Mackie RunningMan logo on the speaker grille can be rotated for monitor placement.

Inputs: The Thump212 features two main input channels (Ch.1 & Ch.2) that can both accept balanced or unbalanced mic- or line-level signals.

• Ch.1: A combination XLR/1/4" jack with rotary Gain adjustment; includes a Mic/Line selector switch.
• Ch.2: A combination XLR/1/4" jack; also includes an 1/8" auxiliary input for connecting a portable playback device, smartphone, or tablet. Signals from both inputs are mixed and controlled by the Ch.2 Gain adjustment dial.

Output: A balanced XLR Thru jack is provided that can pass the main mixed output signal to additional powered speakers (sold separately).

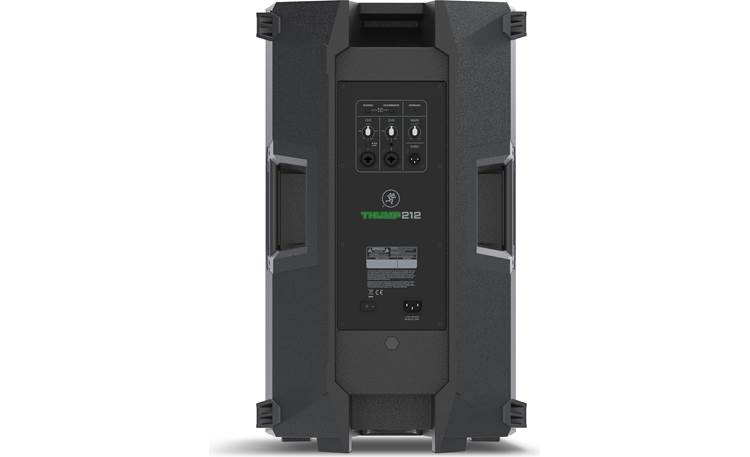

Additional Controls & Indicators: In addition to the aforementioned controls, the Thump212 rear panel also includes the following:

• Main Volume: A rotary dial adjusts the main mixed output signal level. A corresponding Overload LED indicator will light Red if the PA speaker's built-in Limiter is activated by a clipped output signal.
• Music Ducking (On/Off): This is a side-chain compressor feature that can be used to lower the music playback level of Ch.2 while a person is speaking into a microphone on Ch.1.
• Feedback Eliminator (On/Off): The built-in multi-band feedback eliminator circuit uses up to six notch filters to automatically detect and eliminate feedback while maximizing gain.

Protection: The Thump212 incorporates various safety features which include:

• Limiting: A compression circuit which helps protect it from damaging transient peaks. The compressor is designed to be transparent and isn't noticeable under normal conditions.
• Over Excursion: A subsonic filter circuit prior to the power amp prevents ultra-low frequencies from being amplified, which helps keep the driver from bottoming out.
• Thermal: If the amplifier overheats, a built-in thermal switch will activate, muting the signal. After it has cooled down sufficiently, the switch will reset itself and resumes normal operation.

Specifications:

• Frequency Response (-3 dB): 54Hz - 20kHz
• Frequency Range (-10 dB): 47Hz - 23kHz
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Maximum SPL Peak: 128dB
• Low Frequency Driver: 12"
• High Frequency Driver: 1" Polymer compression driver
• Total Peak Power: 1400 Watts
• Low Frequency Amp:
  • Peak Power: 1200 Watts
  • THD: < 1%
  • Amplifier: Class D
• High Frequency Amp:
  • Peak Power: 200 Watts
  • THD: < 1%
  • Amplifier: Class D
• Inputs:
  • (2) XLR/1/4" (balanced or unbalanced)
  • (1) 1/8" TRS (unbalanced)
• Impedance:
  • Mic/Line: 10kΩ balanced
  • 1/8" TRS: 10kΩ unbalanced
• Thru Out: Male XLR balanced
• Thru Out Impedance: 300Ω
• Crossover: 2.1kHz
• Input Power: 100 - 240VAC, 50/60 Hz
• AC Connector: 3-pin IEC
• Dimensions: Width = 13.94", Height = 24.13", Depth = 16.25"
• Weight: 27.6 lbs.
