Features

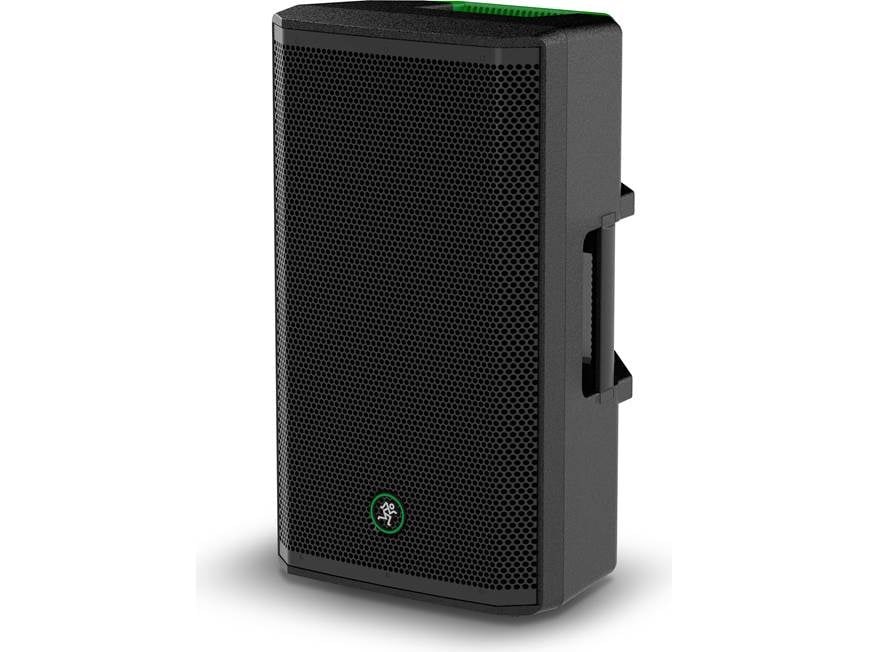

Overview: The Mackie Thrash212 is a portable powered PA loudspeaker designed for live use in small venues, rehersal spaces, busking, schools, and more. The Thrash212 features two input channels that can accept mic- or line-level signals, all being driven by 1300 watts of power (peak).

Drivers: The Mackie Thrash212 features a 2-way driver design with a 12" woofer and a 1" titanium compression driver housed in a bass-reflex enclosure.

Chassis: Designed for portability and durability, the Thrash212 features a rugged polypropylene chassis with a textured finish and a perforated metal grille. It includes four built-in carry-handles and a standard 35mm socket for pole-mounting.

1300W Ultra-efficient Class-D Amplification: The Thrash212 features two built-in Class-D amplifiers; a low-frequency power amp providing 1000W (peak) to the woofer and a high-frequency power amp providing 300W (peak) to the 1" titanium compression tweeter. Class-D amps are more efficient and lightweight, with far less heat produced versus competing designs.

Monitor Mode: The Thrash212 can be used as a stage monitor. Beveled rear panels allow it to lay on either side at a 45° upward angle. The Mackie RunningMan logo on the speaker grille can be rotated to match the PA placement.

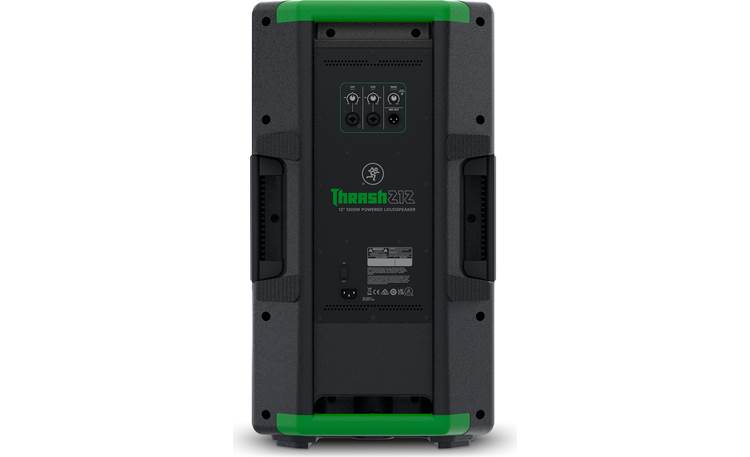

Inputs: The Thrash212 features two main input channels (Ch.1 & Ch.2) that can both accept balanced or unbalanced mic- or line-level signals. Both inputs consist of XLR/1/4" TRS combo jacks for flexibility, and include a rotary Gain control for adjusting the input signals. Labelling for each control shows Off, Line, U (Unity), Mic, and Max. The Unity setting includes a detent in the dial.

Output: A balanced XLR Thru jack is provided that can pass the main mixed output signal to additional powered speakers (sold separately).

Power: The Mackie Thrash212 requires 100-240VAC, 50/60Hz for operation and includes a 58" AC power cord.

Protection: The Thrash212 incorporates various safety features which include:

• Limiting: A compression circuit which helps protect it from damaging transient peaks. The compressor is designed to be transparent and isn't noticeable under normal conditions.
• Thermal: If the amplifier overheats, a built-in thermal switch will activate, muting the signal. After it has cooled down sufficiently, the switch will reset itself and resumes normal operation.

Specifications:

• Frequency Response (-3dB): 65Hz - 20kHz
• Frequency Range (-10 dB): 52Hz - 23kHz
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Maximum SPL Peak: 125dB
• Low Frequency Driver: 12"
• High Frequency Driver: 1" Titanium compression driver
• Total Peak Power: 1300 Watts
• Low Frequency Amp:
  • Peak Power: 1000 Watts
  • THD: < 1%
  • Amplifier: Class D
• High Frequency Amp:
  • Peak Power: 300 Watts
  • THD: < 1%
  • Amplifier: Class D
• Inputs: (2) XLR/1/4" (balanced or unbalanced)
• Impedance:
  • Mic: 20kΩ balanced
  • Line: 1MΩ unbalanced Hi-Z
• Thru Out: Male XLR balanced
• Thru Out Impedance: 600Ω
• Crossover: 2.4kHz
• Input Power: 100 - 240VAC, 50/60 Hz
• AC Connector: 3-pin IEC
• Dimensions: Width = 14.80", Height = 26.40", Depth = 13.88"
• Weight: 36.4 lbs.
