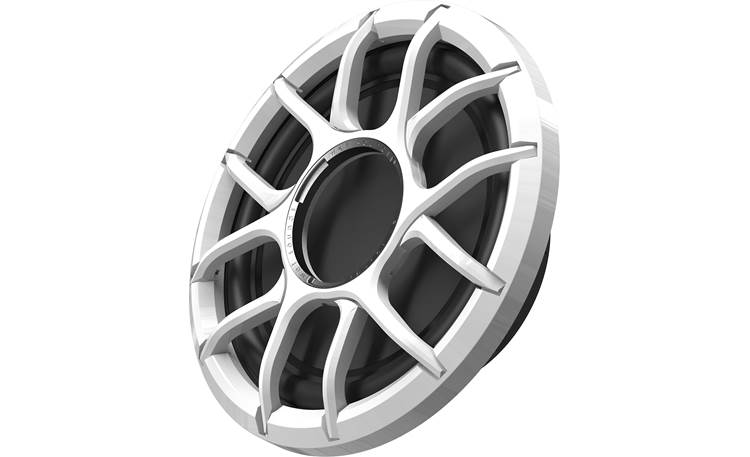

About the Wet Sounds ZERO Series 12 S4 XZ-W

Product highlights:
- 12" 4-ohm marine subwoofer

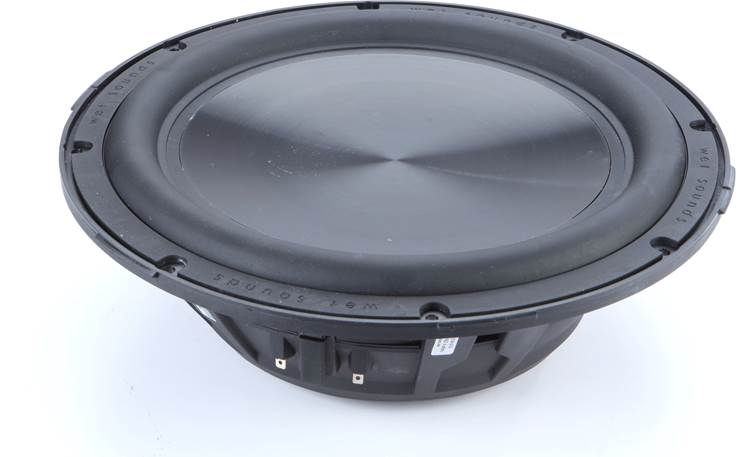

- composite propylene/mica with glass beads cone with Santoprene rubber surround
- injection-molded nylon/fiberglass (Nylas) frame
- Nomex aramid spider
- optimized for 1.0 cubic ft. sealed enclosure
- IP65 waterproof rating

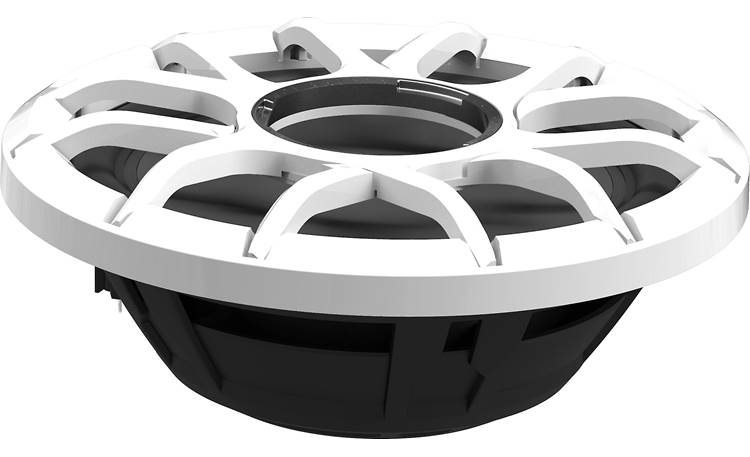

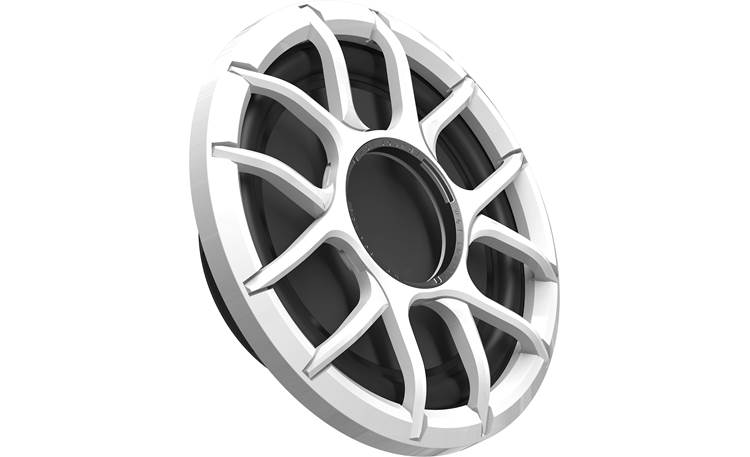

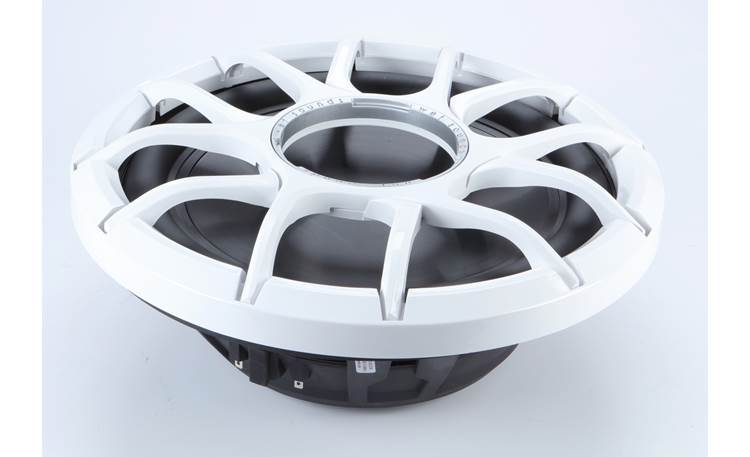

- black two-tone (matte and glossy) plastic XZ grille included
- twist-lock removable grille design
Specifications:
- power handling: up to 400 watts RMS (800 watts peak)
- frequency response: 25-2,000 Hz
- sensitivity: 85.9 dB (1 watt at 1 meter)

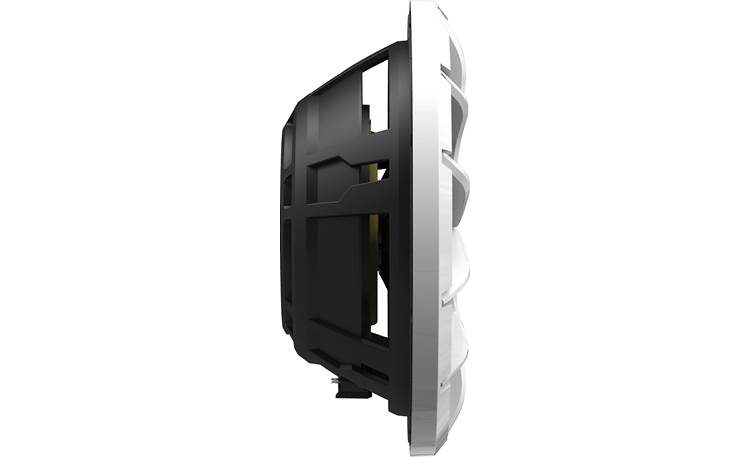

- top-mount depth: 3.72"
- cutout diameter: 11.14"
- warranty: 2 years
- MFR # ZERO 12 S4 XZ-W
- Item # 86712S4XZW
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Wet Sounds ZERO Series 12 S4 XZ-W owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 12" Marine subwoofer
- Grille
- Eight 1-1/2" Stainless steel screws
- Owner's manual
- Template
More details on the Wet Sounds ZERO Series 12 S4 XZ-W

Features & specs
Features and Specs | ||
---|---|---|
Size | 12-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Polypropylene/Mica/Glass Spheres | |
Surround Material | Santoprene Rubber | |
Basket Material | Nylas | |

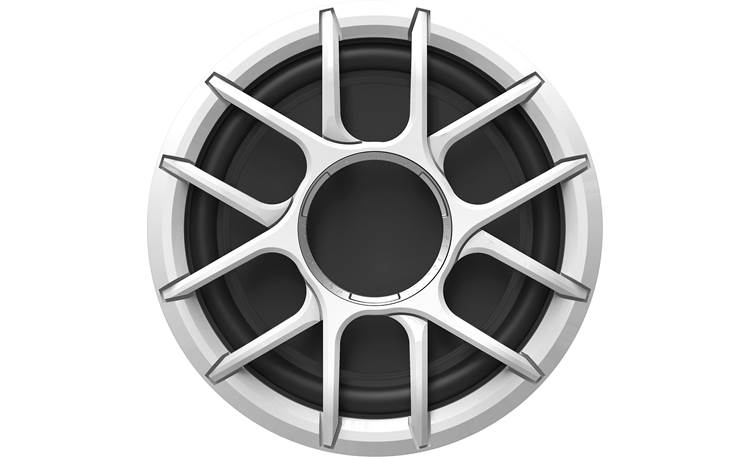

Grille | White plastic, Spoke style | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
85.9 dB at 1 watt | |
Frequency Response | 25 - 2000 Hz | |
Max RMS Power Handling | 400 | |
Peak Power Handling (Watts) | 800 | |
Top Mount Depth (inches) | 3 3/4 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 11 1/8 | |
Frame Width | 13 | |
Frame Length | 13 | |
Vas (liters) | 68.4 | |
Fs (Hz) | 28 | |
Qts | 0.54 | |
Xmax (millimeters) | 9.7 | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 1 | |
Minimum Sealed Box Volume (cubic feet) | N/A | |
Maximum Sealed Box Volume (cubic feet) | N/A | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Marine Tested: Wet Sounds uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the speakers remain durable in the difficult marine environment. Their IP65 rating certifies they are dustproof and waterproof from low pressure jets at any angle.
Nylas Basket: The speaker frame is made of Nylas, a composite mix of Nylon and Fiberglass, providing strength and stability.
Rubber Surround: Durability is further improved by the Santoprene rubber surround Wet Sounds developed for their marine speakers.

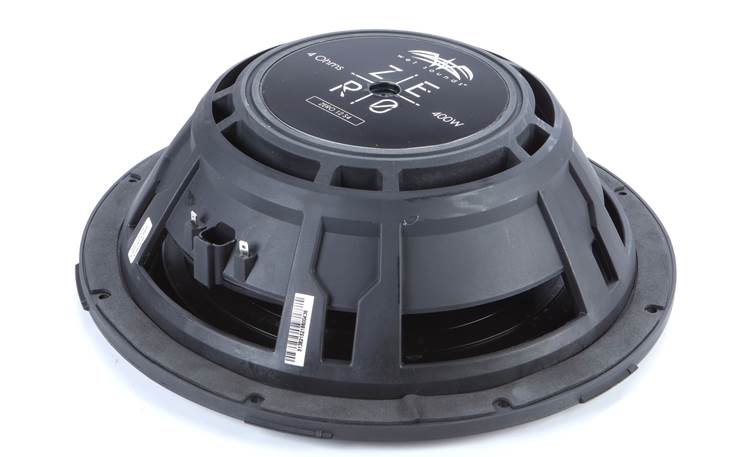

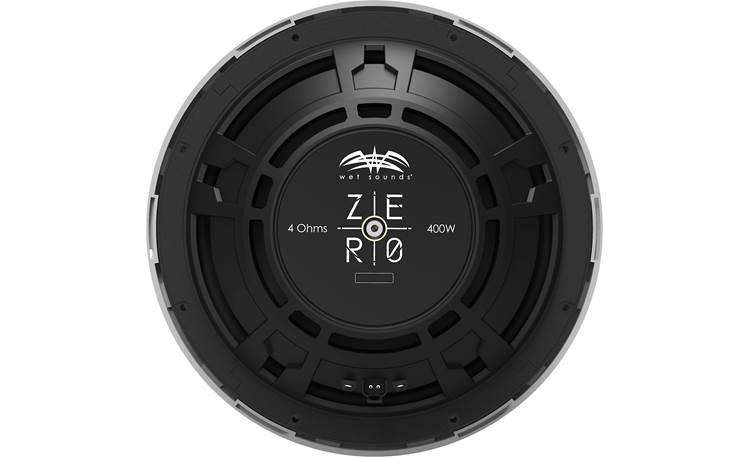

Speaker Terminals: In addition to standard male quick slide terminals, the subwoofer also has a 2-pin waterproof Deutsch terminal. Speaker wire harnesses with 2-pin waterproof Deutsch connectors are not included.
Small Sealed Enclosure: Wet Sounds recommends the sub be mounted in a 1.0 ft³ sealed enclosure.
