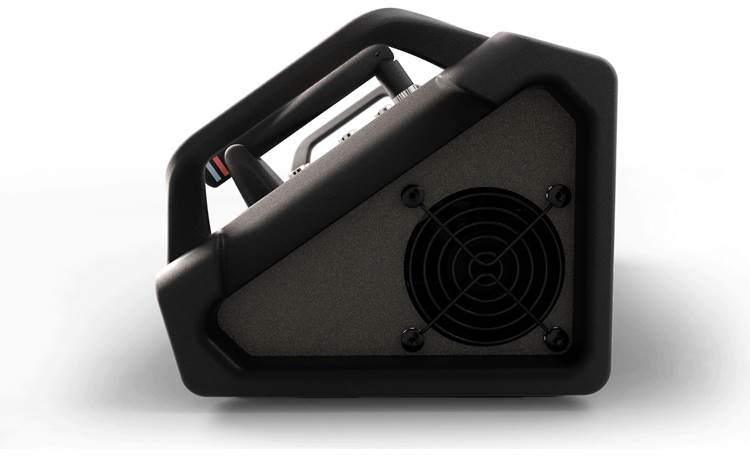

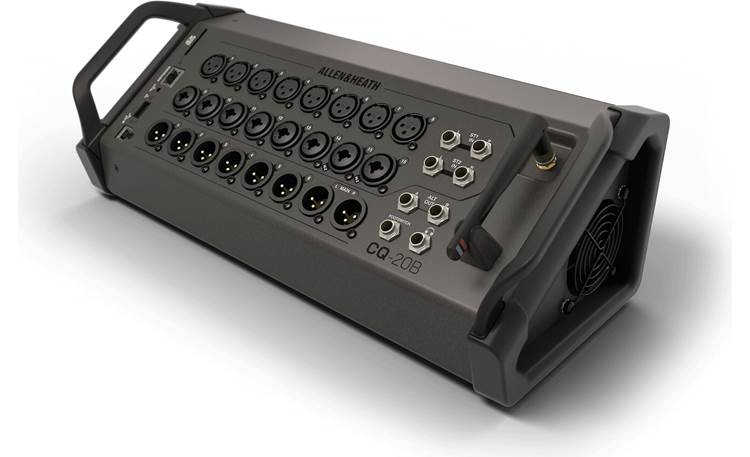

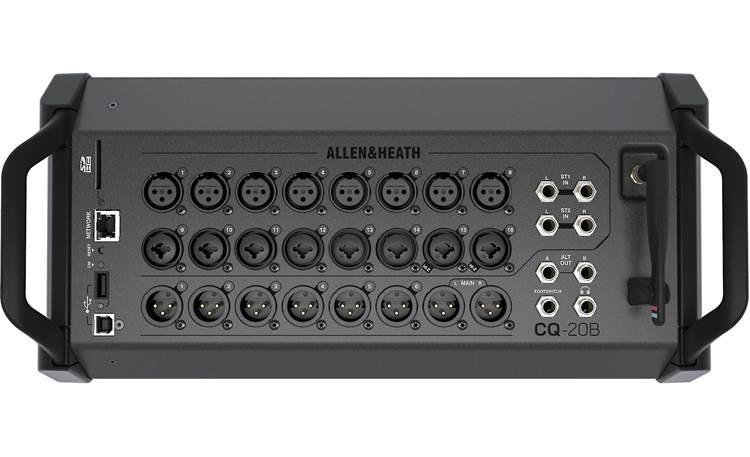

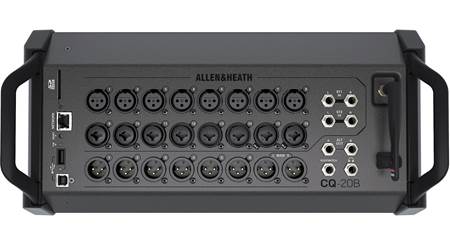

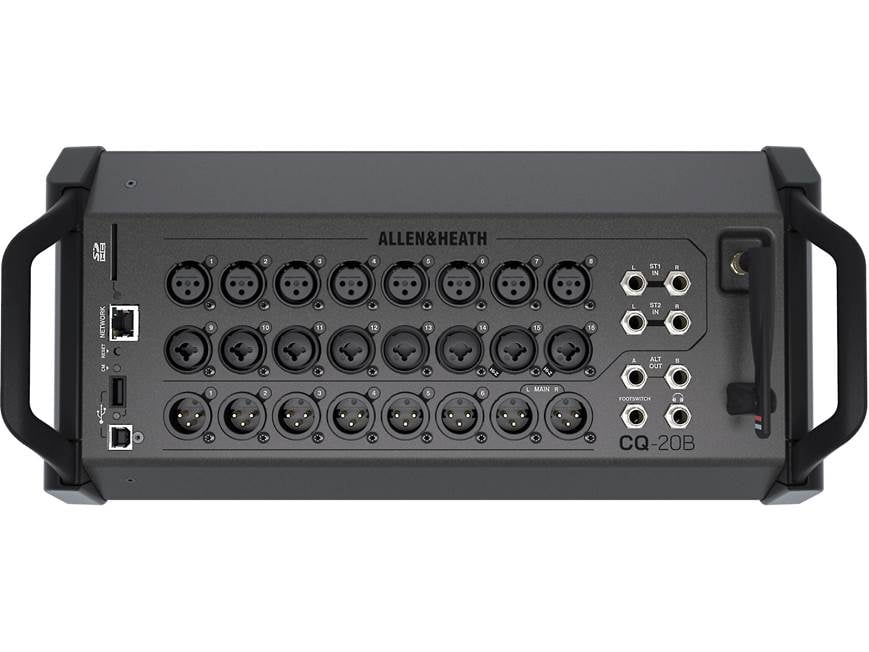

Allen & Heath CQ-20B 20-channel digital mixer — stagebox with built-in Wi-Fi®

Name: Allen & Heath CQ-20B
Brand: Allen & Heath
SKU: 878ACQ20B
Price: 999.99 USD
Availability: LimitedAvailability

Item # 878ACQ20B

The compact CQ-20B is a perfect production solution for AV specialists, musicians, and home studio producers,.

1/4

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Allen & Heath CQ-20B Only at Crutchfield

The compact CQ-20B is a perfect production solution for AV specialists, musicians, and home studio producers,.

Item # 878ACQ20B

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$999.99

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Buck Pomerantz

High-fidelity pinpoint control and distribution

Allen & Heath designed their CQ-20B compact digital mixer for business and commercial AV specialists, as well as for small live music venues, professional musicians, and home studio producers. The CQ-20B takes up to 20 input signals and lets you mix, match, and send them out to up to 8 different output destinations like PA and monitor speakers on stage or recording tracks in home and studio productions. The CQ-20B uses 96kHz digital processing to ensure pure and accurate reproduction of all sounds and that they get precisely to where they should go without added coloring or distortion.

Facilitating features

Complete Channels mode lets you customize and adjust all settings by hand from scratch.
Quick Channels mode offers quick and simple selectable setups for standard sound mixes like voices, guitars, and drums in small ensembles.
Gain Assistant automatically sets and monitors every channel's input gain, to mitigate overloads and sudden changes in volume.
Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per channel.
Automatic Mic Mixer controls the balance and priorities when multiple open mics are used for large meetings.

App control

The CQ-20B has no built-in control surface, so its digital processing, adjustments, assignments, and settings can only be accessed and monitored using the mixer's built-in WiFi and the CQ MixPad app run on your phone, tablet, or laptop.
An FX Assist tool can automatically set and dynamically adjust the parameters of 4 effects processors, including different classic and modern reverbs, echoes, compression, and other modulations.
You can control multiple channels' volumes and muting with one control via the CQ-20B's DCA assignment and Mute Group functions.

Product highlights:

20-channel digital mixer with Wi-Fi control

20 inputs:
- 8 mono mic/line (XLR)
- 8 mono mic/line (combo XLR/TRS)
- 4 stereo line (TRS)
8 outputs:
- 2 L/R Main (XLR)
- 6 Monitor/Aux (TRS)
control surface not included: control and monitor all settings and parameters via CQ-MixPad app on your phone, tablet, or laptop
- Quick Channels mode applies settings automatically
- Complete Channels mode allows full manual control
channel processing includes up to 20 dB gain, switchable +48V phantom power, high-pass filters, parametric and graphic EQ, noise gate/expanders, and compressor/limiters
multi-channel control with up to 4 assignable DCAs and 4 mute groups

Digital processing:

96K Hz sampling rate, custom bit depth up to 96-bit
Gain Assistant sets and monitors channel input gain
Feedback Assistant automatically detects and eliminates feedback
FX Assist tool controls 4 effects processors
- effects include classic and gated reverbs, echo/delays, flangers, and other modulators
AMM automatic mic mixer controls multiple open mics for meetings
can store and recall whole mixer settings and effects presets
record and playback via USB and SD card
Bluetooth streaming
built-in WiFi
- remote control via CQ-MixPad app on your iOS, Android, macOS, or Windows device
- personal monitoring via CQ4You app

Other features:

dimensions: 14.7"W x 5.3"H x 6.1"D
- accessory rack-mount kit available
weight: 5.8 lbs.
warranty: 1 year
MFR # AH-CQ20B
Item # 878ACQ20B

Researched by Crutchfield's Russ B.

Features & specs

General
Mic inputs	16
Line inputs	20
Phantom power	+48V
Channel EQ	Y
Master EQ	Y
Digital outputs	USB
Monitor outputs	6 (XLR)
Effects	Y
Talkback	---
USB Input	Y
RCA Inputs	---
Height (inches)	5-5/16
Depth (inches)	6-1/8
Width (inches)	14-3/4
Weight	5.8 lbs

Loading accessories...

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

Allen & Heath CQ-20B

20-channel digital mixer — stagebox with built-in Wi-Fi®

Low stock

$999.99
Loading...

Adding...

Bose T4S ToneMatch Mixer

4-channel digital mixer for Bose L1 Model 1S or II loudspeaker systems

Low stock

5.0 out of 5 stars
2 reviews

$699.00
Loading...

Adding...

QSC TouchMix-8

8-channel digital mixer

Low stock

5.0 out of 5 stars
4 reviews

$1,149.99
Loading...

Adding...

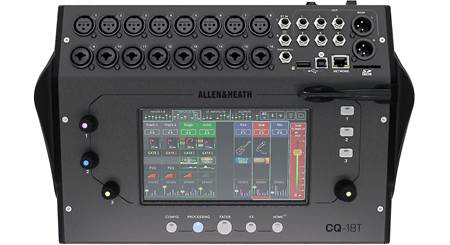

Allen & Heath CQ-18T
