Features

Overview: The weBoost Destination RV (model 470159) cellular signal booster is designed for large recreational vehicles and travel trailers to improve the cell signal inside your rig. It is designed to be a stationary signal booster, and cannot be used when the vehicle is in motion. Boosted signals result in fewer dropped calls and dead spots, improved video streaming, clearer voice calls, and faster data rates. Everyone can enjoy higher quality cell service in weak-signal areas. The Destination RV includes a high-performance, directional receiving antenna that mounts to a 25-foot telescoping mast and a small, inside (transmitting) antenna.

Benefits: The weBoost Destination RV helps increase the signal strength in typically weak signal areas. With stronger signals, your cell phone doesn't have to work as hard to find a signal, extending battery life. In addition, the long-range antenna helps keep dispatch and fleet managers in constant contact with their drivers and crews, allowing for better vehicle tracking and driver communications. Data rates are increased, meaning data upload and download times are reduced. It is compatible with all US wireless carriers, including Verizon, T-Mobile, AT&T, and U.S. Cellular, and simultaneously supports multiple users. weBoost cell phone signal boosters are 5G ready.

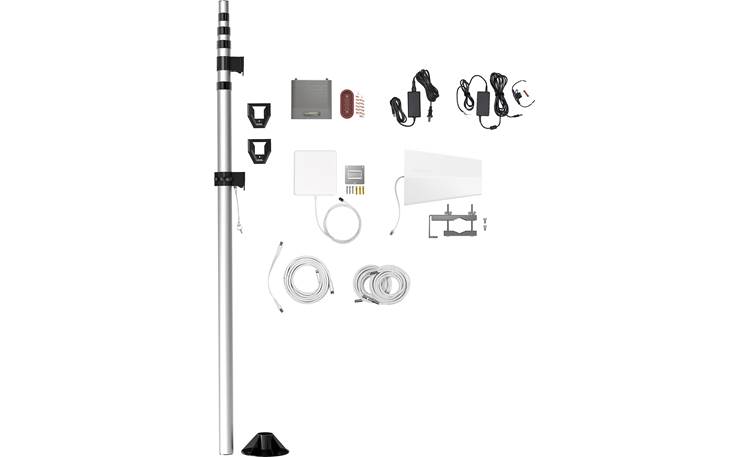

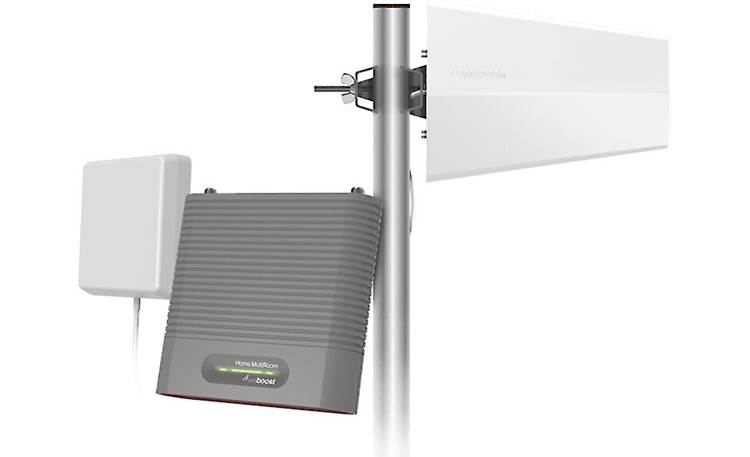

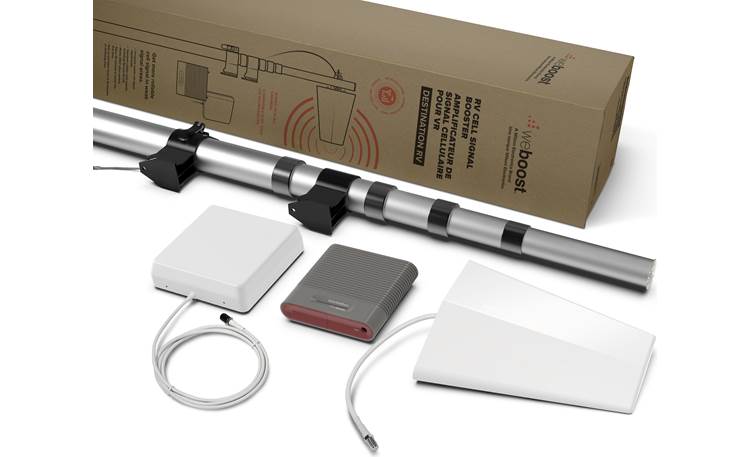

Installation: The Destination RV cell phone signal booster consists of four main components: the booster, outside and inside antennas, and the telescoping pole. The pole should not be installed on the RV until the vehicle is parked, and the stabilizer jacks and wheel chocks are in place. Installation of each component is as follows:

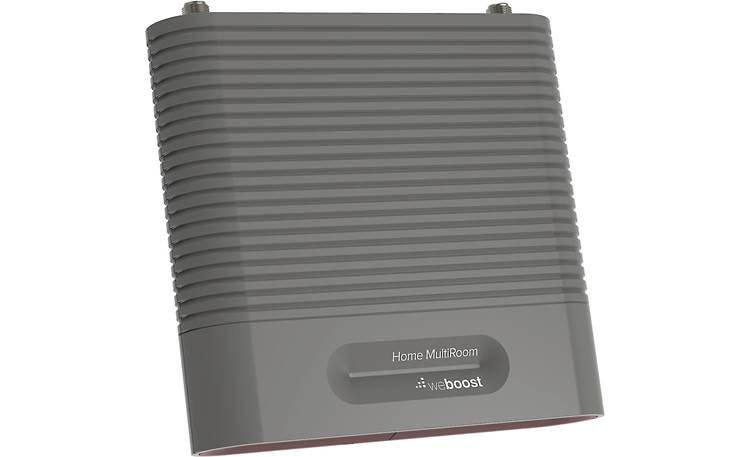

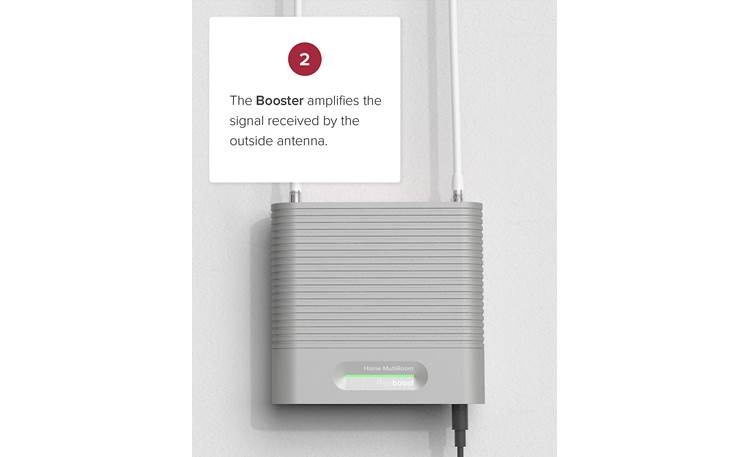

• Booster: The booster can be mounted inside of a cabinet using the included bracket, and powered by the included AC adapter. The booster has coax connections for the signal input (from the outside antenna) and signal output (to the inside antenna). Long and short lengths of coax cable are included for connecting the booster.
• Telescoping Pole: The telescoping pole can be mounted to the side of the RV or travel trailer. The pole has upper and lower mounting feet that slip into the included adhesive-backed pole wall mounts that are attached to your RV/travel trailer. The wall mounts should be at least 4 feet apart. Pins are provided to lock the pole foot into the wall mount. The pole is just over 6' long when collapsed, and 25' long when extended.

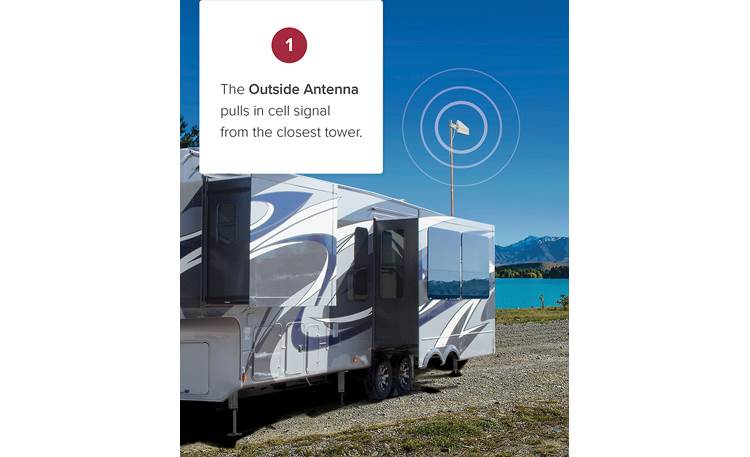

• Outside Antenna: The directional outside antenna clamps onto the upper length of the telescoping pole with the included bracket. The 30-foot coax cable attaches to the short coax pigtail on the antenna. Using the new weBoost app (or similar app), you can determine the direction of the nearest cellular tower for aiming the outside antenna.
• Inside Antenna: The indoor antenna can be placed on a shelf, in a cabinet, or in a window where you want a stronger signal. The inside antenna transmits the boosted cellular signals to everyone in the RV or trailer.

Status Lights: The Destination RV booster has an indicator light on the front panel that glows or flashes green or red to indicate the status of the booster:

• Solid Green: Booster functioning properly
• Blinking Green and Red: Band has reduced gain due to a feedback loop (oscillation). It's a safety feature to prevent harmful interference.
• Blinking Green and Yellow: Band has reduced gain as a safety feature to prevent harmful interference with a nearby cell tower.
• Solid Yellow: Band has shut off due to overload from nearby cell tower. You should adjust the outside antenna.
• Solid Red: Band has shut itself off due to oscillation.
• Light Off: The booster is not receiving power from the power supply.

Specifications:

• Frequencies:
  • Band 12/17: 700 MHz
  • Band 13: 700 MHz
  • Band 5: 850 MHz
  • Band 4: 1700/2100 MHz
  • Band 25/2: 1900 MHz
• Maximum Gain: 65dB
• Impedance: 75 ohms
• Power Requirements: 5V / 4.5A (provided by included AC adapter)
• Antenna Connectors: F-connectors
• Dimensions:
  • Booster: Width 6.037", Height 5.991", Depth 1.689"
  • Outside Antenna: Width 2.622", Height 8.597", Depth 11.37"
  • Inside Antenna: Width 6.216", Height 6.612", Depth 2.102"
  • Telescoping Pole:
    • Length: Minimum 6'-1.5", Maximum 25'
    • Diameter: Bottom 2.338", Top 1.647"

Legal Disclosure: The Destination RV cell phone signal booster is a consumer device, and is FCC certified to current technical specifications. Before you use the product, you must register the device with your wireless provider, and have your provider's consent. Most wireless providers consent to the use of signal boosters, however, some providers may not consent. If you are unsure, contact your provider. You must operate the device with approved antennas and cables as specified by the manufacturer. Antennas must be installed at least 8" from any person. You should know that E911 location information may not be provided, or may be inaccurate for calls served by using this device.
