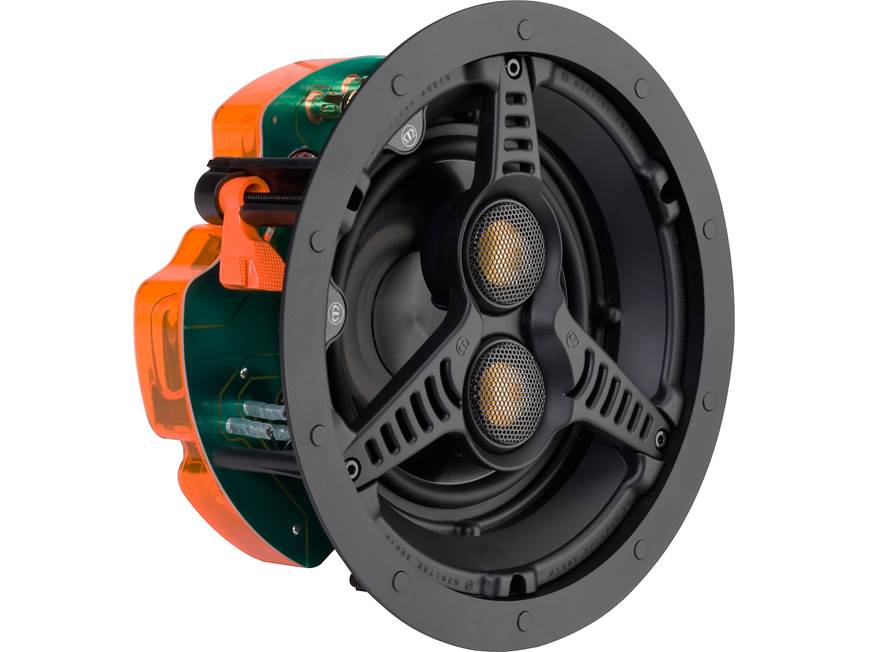

Monitor Audio C165-T2

Features

Two-Way Driver Design: The Monitor Audio C165-T2 in-ceiling speaker utilizes a two-way driver design, featuring two pivoting 1" C-CAM Gold Dome tweeters and a proprietary 6.5" MMP II woofer. Engineered for excellent detail resolution and full-range sound, the C165-T2 will deliver great sound for distributed audio applications.

• Dual 1" C-CAM Gold Dome Tweeters: The gold dome tweeters are formed from a ceramic-coated aluminum/magnesium alloy, gold anodized to a specific thickness for ideal stiffness and damping characteristics. The new profile and surround geometry have been developed using advanced modeling tools, to provide the optimum qualities for accurate sound reproduction. The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats. The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.
• 6.5" MMP II Cone Woofer: The 6.5" MMP II (Metal Matrix Polymer) cone woofer has a polypropylene base loaded with metallic particles to offer a rigid and responsive structure. It is manufactured using a sophisticated high-pressure injection process, which modulates cone thickness at critical points to optimize stiffness and consistency, resulting in a superior sonic performance.

Pivoting Tweeters: The 1" C-CAM tweeters are able to pivot (up/down and left/right) to direct the sound to your desired listening area.

Stereo Spring-Post Terminals: The Monitor Audio C165-T2 is outfitted with two sets of speaker terminals which allow the C165-T2 to be used as a single stereo speaker. These gold-plated spring-post terminals accept bare wire (up to 10AWG), banana plugs (sing/dual), and angled pin-connectors.

Stereo Application: Because of its stereo inputs and dual tweeters, the C165-T2 in-ceiling loudspeaker is perfect for distributed audio applications. Since the C165-T2 reproduces both stereo channels from a single location, it will deliver outstanding performance from a wide variety of mounting locations where a pair of stereo speakers would be impractical.

"Trimless" Magnetic Grille: The C165-T2 in-ceiling speaker features a steel-mesh grille that is held in place by high strength Neodymium magnets covering the entire speaker for a true "trimless", stealth look. The grille is paintable to blend with the living environment; additional scrim material is provided for trouble free painting.

Tri-Grip Fixing System: Monitor Audio's innovative Tri-Grip fixing system is easier to install than conventional clamping schemes and provides 3x the surface area and a better surface seal, maximizing bass response and midrange clarity. The Tri-Grip fixings are made from a tough re-enforced polymer, giving a secure installation.

• Cutout Size: 8.3125" (diameter)
• Mounting Depth: 4.5625"
• Ceiling Thickness: 0.125" to 1.5"

Protective Covers: The Monitor Audio C165-T2 features a dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
