About the Monitor Audio C180
Full-range sound with zero footprint
Full-range sound with zero footprint
Planning an in-ceiling music or home theater system? Monitor Audio's C180 in-ceiling speaker is worth a look. It uses some of the same technology found in the company's higher-end speakers, including Monitor's directionally aimable gold dome tweeter.
Use the C180 for music as part of a low-profile, custom-installed whole-house audio system. Or use it as an overhead effects speaker in a Monitor Audio home theater system.

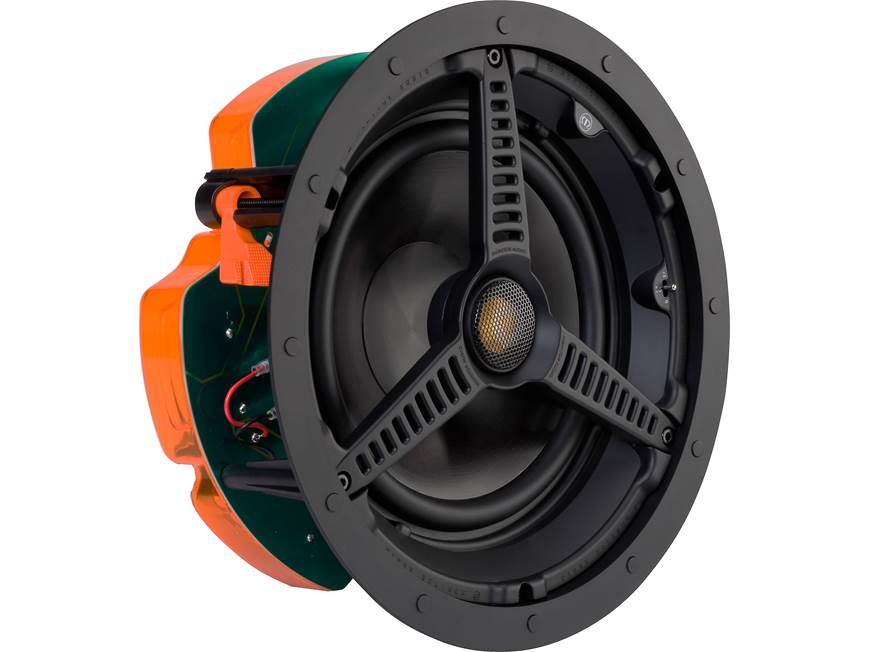

Monitor Audio's C180 in-ceiling speaker features an aimable tweeter, which lets you direct sound toward you.
Signature sound from Monitor's gold dome tweeter
The C180 uses Monitor's signature 1" C-CAM® (Ceramic-Coated Aluminum/Magnesium) gold dome tweeter for clear, detailed highs and realistic reproduction of instruments, vocals, and dialogue. It's the same tweeter found in many of Monitor's highly acclaimed bookshelf and floor-standing speakers.
A tweeter level control switch on the front baffle lets you boost or cut high frequencies to best suit your room's acoustics — a feature typically reserved for more expensive models.
Solid midrange and bass
This speaker uses a beefy 8" MMP® II (Metal Matrix Polymer) woofer for textured, accurate midrange and punchy bass. An advanced crossover network helps ensure smooth, full-range sound throughout the speaker's frequency range.
DIY installation
If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.
Product highlights:
- ideal for an in-ceiling music system or overhead effects channel in a home theater system
- pivoting 1" gold dome C-CAM® (Ceramic-Coated Aluminum/Magnesium) tweeter for detailed sound
- three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room's acoustics
- 8" MMP® II (Metal Matrix Polymer) woofer
- unobtrusive frame and low-profile grille for discreet installation
- recommended amplifier power: 30-120 watts
- frequency response: 50-25,000 Hz
- sensitivity: 90 dB
- impedance: 6 ohms
- patented Tri-Grip® mounting system ensures maximum surface seal for better bass and midrange clarity
- paintable removable magnetic steel grille
- cutout diameter: 9-3/4"
- overall diameter: 11-1/4"
- mounting depth: 4-7/8"
- weight: 6 lbs.
- warranty: lifetime
- Our 60-day money-back guarantee
- MFR # CC180
What's in the box:
Monitor Audio C180 owner's manual
- In-ceiling speaker
- Grille
- Paint skim
- Installation Guide
- Important Safety Instructions
- Cutout Template
Reviews
Customer reviews
Loading reviews...
Monitor Audio C180 reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Monitor Audio C180
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Single | |
| Tweeter | Hard-Dome | |
| Aimable Tweeter | Yes | |
| Woofer Composition | Metal Matrix Polymer | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | No | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | No | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | 1 | |
| Midrange Size | N/A | |
| Speaker Shape | Round | |
| Woofer Size | 8 | |
| Cutout Width | 9.75 | |
| Cutout Height | 9.75 | |
| Mounting Depth | 4.875 | |
| Power Range (Watts) | 30-120 | |
| Sensitivity | 90 dB | |
| Impedance (Ohms) | 6 | |
| Frequency Response | 50-25kHz | |
| Parts Warranty | Lifetime | |
| Labor Warranty | Lifetime | |
Product Research
Features
Two-Way Driver Design: The Monitor Audio C180 in-ceiling speaker utilizes a two-way driver design, featuring a pivoting 1" C-CAM Gold Dome tweeter and a proprietary 8" MMP II woofer. Engineered for excellent detail resolution and full-range sound, the C180 will deliver great sound for distributed audio, home theater, and stereo applications.
- 1" C-CAM Gold Dome Tweeter: The gold dome tweeter is formed from a ceramic-coated aluminum/magnesium alloy, gold anodized to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modeling tools, to provide the optimum qualities for accurate sound reproduction. The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats. The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.
- 8" MMP II Cone Woofer: The 8" MMP II (Metal Matrix Polymer) cone woofer has a polypropylene base loaded with metallic particles to offer a rigid and responsive structure. It is manufactured using a sophisticated high-pressure injection process, which modulates cone thickness at critical points to optimize stiffness and consistency, resulting in a superior sonic performance.
Tweeter Control: The 1" C-CAM tweeter is able to pivot (up/down and left/right) to direct the sound to your desired listening area. A HF (High Frequency) level adjustment also aids in high frequency performance. With the High Frequency Level Control set to "0", the in-ceiling speaker will give you a neutral sound. Switching to the "+3db" setting will give the high frequencies a boost, giving you more clarity and presence in the treble. If you want more prominence in the bass frequencies, switch to the "-3db" setting. The HF level adjustment switch is located on front of the baffle behind the grille.
Spring-Post Terminals: The Monitor Audio C180 is outfitted with two gold-plated spring-post terminals to connect your speaker wire. The spring-post terminals which accept bare wire (up to 10AWG), banana plugs (sing/dual), and angled pin-connectors.
"Trimless" Magnetic Grille: The C180 in-ceiling speaker features a steel-mesh grille that is held in place by high strength Neodymium magnets covering the entire speaker for a true "trimless", stealth look. The grille is paintable to blend with the living environment; additional scrim material is provided for trouble free painting.
Tri-Grip Fixing System: Monitor Audio's innovative Tri-Grip fixing system is easier to install than conventional clamping schemes and provides 3x the surface area and a better surface seal, maximizing bass response and midrange clarity. The Tri-Grip fixings are made from a tough re-enforced polymer, giving a secure installation.
- Cutout Size: 9.75" (diameter)
- Mounting Depth: 4.875"
- Ceiling Thickness: 0.125" to 1.625"
Protective Covers: The Monitor Audio C180 features a dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
The Monitor Audio C180 replaces these items
- pivoting 1" gold dome tweeter and 8" polymer woofer
- splash-proof and humidity-proof for installation in bathrooms or pool areas
- frequency response: 50-25,000 Hz
