Monitor Audio Studio

Features

MPD (Micro Pleated Diaphragm) High Frequency Transducer: The MPD (Micro Pleated Diaphragm) high frequency transducer has been designed to provide incredible articulation due to its low mass diaphragm. MPD transducers work in the same way as a super-fast accordion by rapidly squeezing the pleats to produce a smooth, wide and naturally fast response way into the ultra-sonic band (up to 100 kHz). As a result, the sound is more lifelike, releasing the high harmonic spectrum of every note without the distortion that blurs definition. There is honeycomb cover over the tweeter that helps with high frequency dispersion and imaging.

Dual 4" Midrange/Midbass Drivers: The Studio bookshelf loudspeaker's dual 4" midbass/midrange drivers are modified versions of those used in Monitor Audio's flagship Platinum PL500 II loudspeaker. Their sound is clear and natural, with a deep bass and plenty of midrange detail. The drivers are designed to be incredibly low in distortion and use the same magnetic design principles and material choice as the class-leading Platinum speakers from Monitor Audio. The dual 4" drivers utilize Monitor Audio's RDT II, C-CAM, and DCF technologies to create optimum midrange and midbass sound.

• RDT (Rigid Diaphragm Technology) II: RDT II is a composite "sandwich" structure made from ultra-thin low mass-skins, bonded to a honeycomb Nomex core material. Its very light, very strong, and responds with great speed without bending. RDT II uses C-CAM for the front skin, while the rear skin is made from a woven carbon fiber material. This structure reduces distortion by over 8 dB above 300 Hz.
• C-CAM (Ceramic Coated Aluminum/Magnesium): C-CAM is an innovative alloy material originally developed by the aerospace industry. It exhibits ideal qualities for use as loudspeaker cones, being extremely rigid, yet light enough to yield high overall efficiency. C-CAM is formed from an alloy of aluminum and magnesium, which undergoes stress-relieving processes-in manufacturing to avoid surface deformation and molecular weakness. A layer of pure ceramic (alumina)is deposited onto the surfaces to produce a completely rigid exterior. C-CAM cones are designed to have high resistance to bending stress. When formed into a cone, C-CAM material provides increased clarity and reduced distortion compared to conventional cone materials.
• DCF (Dynamic Coupling Filter): The dual 4" driver's also utilize DCF (Dynamic Coupling Filter) technology to optimize and reduce high-frequency cone break-up and increase the critical voice coil circumferential rigidity.

High-grade Crossover Network: The Monitor Audio Studio's two-way crossover network incorporates high-grade polypropylene film capacitors, air-core, and laminated steel-core inductors that have been selected to preserve the best possible signal integrity and smoothest audible transition between the loudspeaker's high and low frequency drivers.

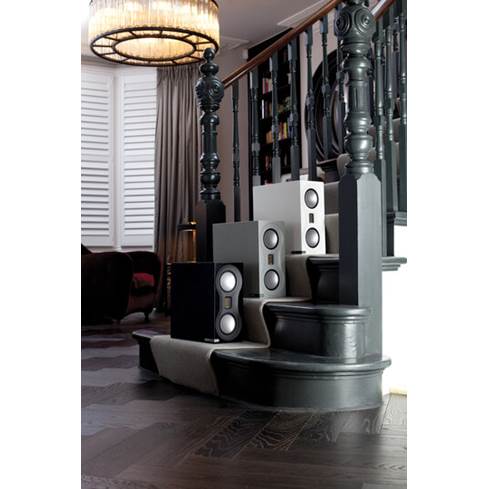

Handcrafted Grille-Less Cabinet: The Monitor Audio Studio bookshelf loudspeaker features a beautiful handcrafted enclosure that is available in a sleek satin black, white, or grey finish. The cabinet's grille-less design ensures the speaker's sound is clear and true, and lets the drivers become an eye-catching focal point.

• Single Through-Bolt Mount: The loudspeaker's drivers are individually mounted on a through-bolt which fixes at the back of the cabinet and tensions the driver at the front. Cleverly this triple-action feature braces the cabinet structure for lower box coloration while removing the need for conventional front fixings, reducing unwanted driver/cabinet resonance and simultaneously boosting aesthetics.
• HiVe II Port Technology: The Studio bookshelf loudspeaker's bass reflex enclosure is tuned using two rear mounted HiVe II ports at the top and bottom of the cabinet. The dual ports ensure the pressure inside the cabinet is symmetrically balanced and that there is no turbulence and subsequent air noise. HiVe II technology ensures air moves in and out much quicker than a conventional port, resulting in fast, powerful bass coupled with superior transient response.

Binding Post Terminals: The Monitor Audio Studio is outfitted with binding post terminals that will accept bare wire (up to 10AWG), pin-connectors, spade-lugs, and banana-plugs (single only). The binding post terminals are rhodium plated to provide the lowest contact resistance and long-term consistency.

Mounting & Placement Options: The Monitor Audio Studio bookshelf loudspeakers are designed to be placed on speakers stands (sold separately - see Accessories Tab) or a large, flat, rigid tabletop surface. Self-adhesive rubber feet are included to protect and isolate the speaker cabinet and mounting surface (the rubber feet add approximately 0.125" to the overall height of the speaker).

• When arranging a two-channel system, the listening position and the loudspeakers should form an equilateral triangle. The speakers should be positioned approximately 6' to 10' apart. The ideal distance from the rear wall varies depending on tastes and room acoustics, however, the speakers need to be a minimum of 3' from the side walls. They should be positioned 8 to 18" from the rear wall depending on how the bass reacts to the room and your personal tastes.
• If there is insufficient bass present from the loudspeakers, try moving the speakers closer to a wall. The opposite approach is recommended if there is excessive bass. If stereo imaging is being lost, try "toeing-in" the speakers slightly. The sound should appear to originate from the center point between the speakers, not the speakers themselves.

Note: The Monitor Audio Studio does not offer any brackets, keyhole slots, or threaded inserts to wall-mount the speakers.
