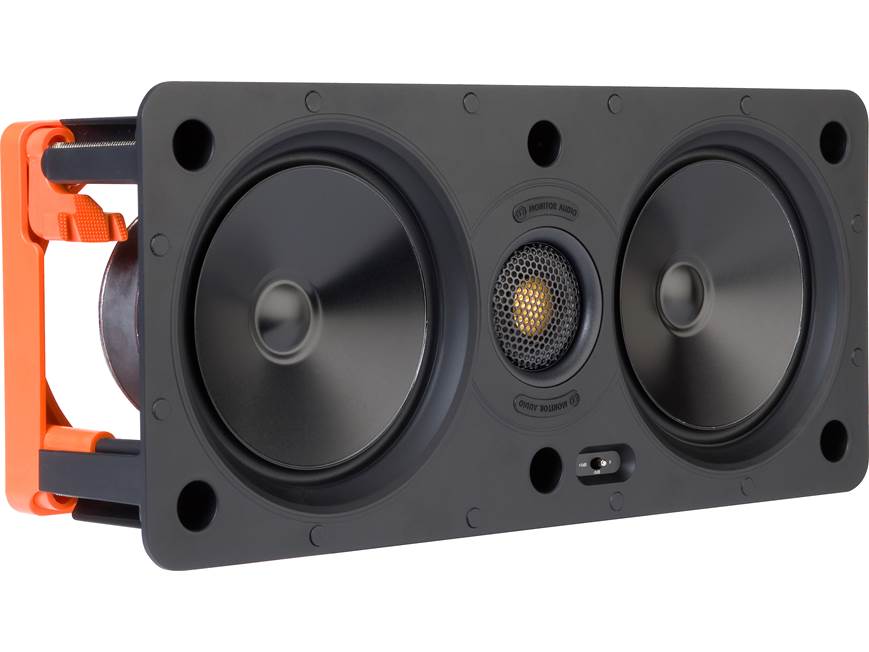

Monitor Audio W250-LCR In-wall multi-purpose speaker

Item # 893W250LCR

A versatile in-wall speaker that can be installed vertically or horizontally in your music or home theater system.

A versatile in-wall speaker that can be installed vertically or horizontally in your music or home theater system.

California customers:
Please click here for your Proposition 65 warning.

Item # 893W250LCR

In stock
$495.00 -$220.00 Special purchase
$275.00 each

Other options

About the Monitor Audio W250-LCR

Kramer Crane

A versatile in-wall speaker

Want crystal-clear center channel sound without taking up any shelf space? Then check out Monitor Audio's W250-LCR in-wall speaker. It delivers accurate, dynamic sound that's great for movie soundtracks and music alike.

A versatile in-wall speaker

Want crystal-clear center channel sound without taking up any shelf space? Then check out Monitor Audio's W250-LCR in-wall speaker. It delivers accurate, dynamic sound that's great for movie soundtracks and music alike.

This multi-talented speaker can also be used as a left- or right-channel speaker. The drivers are specially configured to provide optimal performance whether you mount the speaker vertically or horizontally.

Monitor Audio W250-LCR in-wall speaker

Mount the W250-LCR horizontally as an in-wall center-channel speaker, or vertically as a left- or right-channel surround speaker.

Monitor Audio's secret sauce

This speaker's 1" dome tweeter is made from Monitor's high-tech ceramic-coated aluminum/magnesium alloy. This exceptionally stiff, lightweight material allows the driver to respond swiftly and precisely to the audio signal for greater accuracy.

The tweeter also gets an anodized coating of gold that ensures smooth, extended highs. It also pivots, so you can aim it toward your preferred listening spot for more direct sound. Solid, accurate mids and bass come courtesy of dual 5" woofers.

Adjust the sound for your room

The W250-LCR features a three-position tweeter output switch (-3db, 0, +3db), which lets you fine-tune the high frequencies to your room and taste in sound.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.


Product highlights:

  • ideal for use as a center-, left-, or right-channel home theater speaker, or in a high-performance stereo system
  • can be mounted vertically or horizontally
  • 1" pivoting gold dome tweeter for detailed sound and extended high-frequency response
    • tweeter uses ultra-rigid, lightweight C-CAM® (Ceramic-Coated Aluminum/Magnesium alloy) cone material to provide high efficiency and low distortion
    • high-frequency level adjustment switch (+3dB, 0dB, -3dB)
  • dual 5" MMP® II (Metal Matrix Polymer) bass drivers
  • frequency response: 60-30,000 Hz
  • recommended amplifier power: 30-100 watts
  • sensitivity: 88 dB
  • impedance: 8 ohms
  • patented Tri-Grip® mounting system ensures maximum surface seal for better bass and midrange clarity
  • paintable bezel and removable magnetic steel grille
  • overall dimensions (including grille): 7-1/16" x 15-3/16"
  • cutout dimensions: 5-3/4" x 13-7/8"
  • mounting depth: 4"
  • warranty: lifetime
  • MFR # W-250LCR

What's in the box:

  • In-wall speaker
  • Grille
  • Paint skim
  • Installation Guide
  • Important Safety Instructions
  • Cutout Template

Customer reviews for Monitor Audio W250-LCR

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Monitor Audio W250-LCR

Stacey B.

Features & specs

Quantity in Package Single
Tweeter Hard-Dome
Aimable Tweeter Yes
Woofer Composition Metal Matrix Polymer
Woofer Surround Rubber
Connector Type Spring post
Bi-Amp Inputs No
Built-in Back-box No
Moisture Resistance
Indoor (Moisture-resistant) No
Outdoor (Partial Exposure) No
Outdoor (Full Exposure) No
Tweeter Size 1
Midrange Size N/A
Woofer Size 5
Speaker Shape Rectangle
Cutout Width 5.75
Cutout Height 13.875
Mounting Depth 4
Power Range (Watts) 30-100
Sensitivity 88 dB
Impedance (Ohms) 8
Frequency Response 60-30kHz
Parts Warranty Lifetime
Labor Warranty Lifetime

Product Research


LCR Design: The Monitor Audio W250-LCR is a multi-purpose in-wall speaker that can be used as a center speaker, front left or right speaker, and surround left or right speaker. Its suitable for music and home theater applications, and can be mounted in a portrait or landscape orientation.

Two-Way Driver Design: The Monitor Audio W250-LCR in-wall speaker utilizes a two-way driver design, featuring a 1" C-CAM Gold Dome tweeter and two proprietary 5" MMP II woofers. Engineered for excellent detail resolution and full-range sound, the W165 will deliver great sound for home theater and stereo applications.

  • 1" C-CAM Gold Dome Tweeter: The gold dome tweeter is formed from a ceramic-coated aluminum/magnesium alloy, gold anodized to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modeling tools, to provide the optimum qualities for accurate sound reproduction. The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats. The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.
  • Dual 5" MMP II Cone Woofers: The 5" MMP II (Metal Matrix Polymer) cone woofer has a polypropylene base loaded with metallic particles to offer a rigid and responsive structure. It is manufactured using a sophisticated high-pressure injection process, which modulates cone thickness at critical points to optimize stiffness and consistency, resulting in a superior sonic performance.

High Frequency Level Adjustment: The Monitor Audio W250-LCR provides a high frequency level adjustment for super-fine audio tuning (this adjustment is found on the front baffle behind the grille). With the HF settingon the "0" position, the speaker will give you a neutral sound with no additional adjustments made. Switching to the "+db" position will give the high frequencies a boost, giving you more clarity and presence in the treble. Switching to the "-db" will do the opposite and can be useful if you want more prominence in the bass frequencies.

Spring-Post Terminals: The Monitor Audio W250-LCR is outfitted with two gold-plated spring-post terminals to connect your speaker wire. The spring-post terminals which accept bare wire (up to 10AWG), banana plugs (sing/dual), and angled pin-connectors.

"Trimless" Magnetic Grille: The W250-LCR in-wall speaker features a steel-mesh grille that is held in place by high strength Neodymium magnets covering the entire speaker for a true "trimless", stealth look. The grille is paintable to blend with the living environment; additional scrim material is provided for trouble free painting.

Tri-Grip Fixing System: Monitor Audio's innovative Tri-Grip fixing system is easier to install than conventional clamping schemes and provides 3x the surface area and a better surface seal, maximizing bass response and midrange clarity. The Tri-Grip fixings are made from a tough re-enforced polymer, giving a secure installation.

  • Cutout Size: 5.6875" (w) x 13.875" (h)
  • Mounting Depth: 4.0"
  • Drywall Thickness: 0.25" to 1.75"

Loading accessories...

Customer Q&A

1 question already asked

Can these speakers be installed ON a wall as opposed to within a wall cavity? I do not have a standard depth study cavity of the wall these would be installed on. Aesthetics are not an issue as these will be installed behind an acoustically transparent projector screen.
otremba3235  Apr 05, 2024
1 answer
Hey Peter, thanks for the question. So if you wanted to try and install these on the wall, they would need to be mounted into some form of enclosure mounted on the wall as they are made to be secured into the wall itself. We do not carry anything like that and I was not really able to find a reference piece for it so you may be looking at a custom built enclosure for these. If you don't want to go through that then you could also consider some on-wall options like this from Monitor:
red  Apr 06, 2024 (Staff)
