About the Monitor Audio WMBOX

Product highlights:
- unloaded back box for Monitor Audio's Creator Series in-wall speakers
- helps improve your speaker's performance and reduce sound traveling to other rooms
- easy-to-use stud mounting hardware included
- 11-1/4"W x 37-3/4"H x 6-1/2"D
- weight: 3 lbs.
- warranty: 5 years
- MFR # WMBOX
- Item # 893WMBOX
What's in the box:
Monitor Audio WMBOX owner's manual
If you need assistance accessing this owner's manual, please give us a call.- In-wall back box
- 4 Brackets. Foam panel (pre-installed)
- 16 Screws
- Flexible strip caulk
- Quick Start Guide
More details on the Monitor Audio WMBOX

Product Research
Features

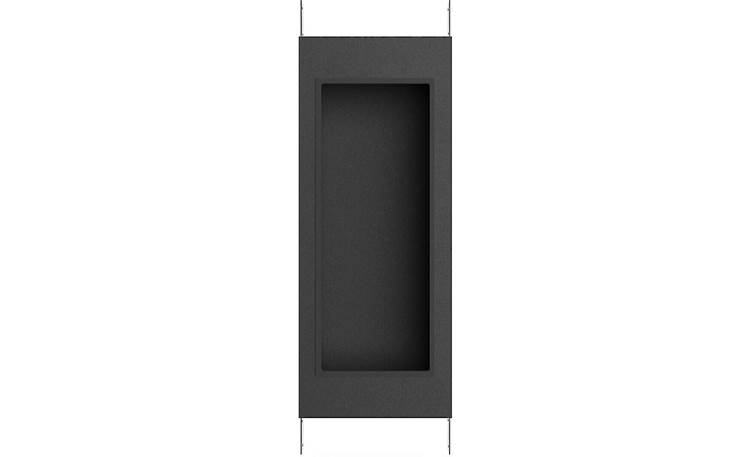

In-Wall Back Box: The WM-BOX is an in-wall back box that is compatible with select Monitor Audio Creator Series in-wall speakers - including the W1M-E, WIM, W2M, W2M-CP, and W3M. It's sealed design, MDF (medium density fiberboard) construction, and interior foam panel delivers improved audio performance and isolation of sound "bleeding" into other rooms when compared to mounting your compatible in-wall speaker without a back box.
Mounting Options: The included pre-drilled holes, mounting brackets and screws allow the WM-BOX to be mounted in the wall vertically (not horizontally). If you flush-mount the brackets using the pre-drilled holes and screws, the WM-BOX fits in a custom 11.25" opening between two studs. If you offset the mounting brackets using the pre-drilled holes and screws, the WM-BOX can mounting in between 12" OC studs.
- Outer Dimensions: 11.25" (w) x 37.75" (h) x 6.5" (d)
- Cutout Opening: 7.875" (w) x 20.8125" (h) x 5.0" (d)
- Weight: 3 lbs

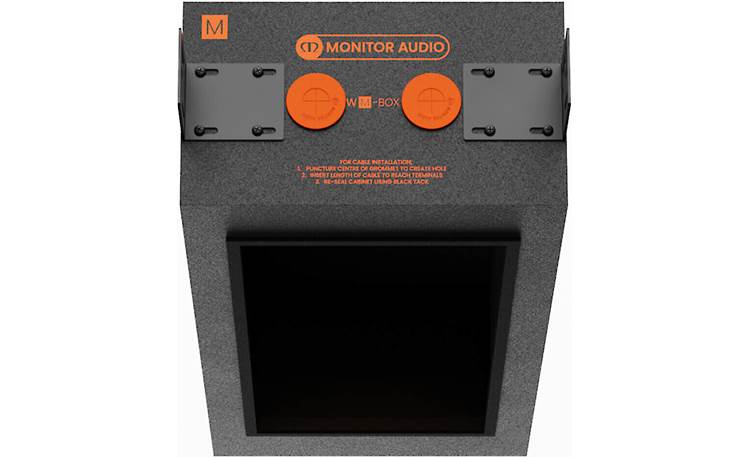

Wire Management: Two grommets and two cable access holes allow you to neatly route your speaker wire inside the WM-BOX to your compatible Monitor Audio Creator Series in-wall speaker.
