Features

AcousticCoverage Series: QSC's AcousticCoverage series is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality.

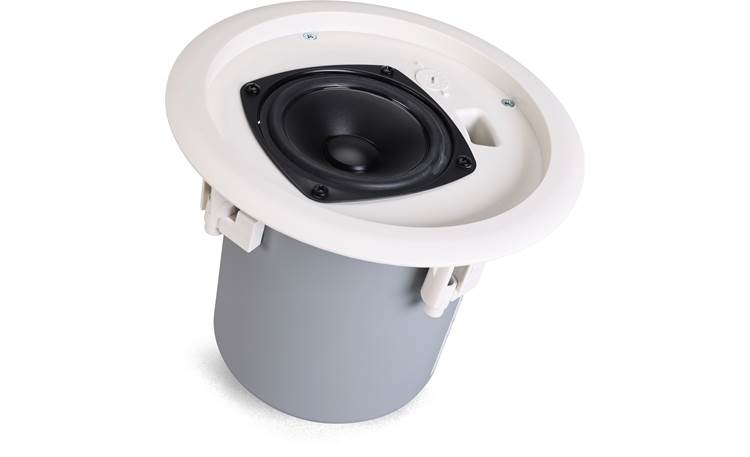

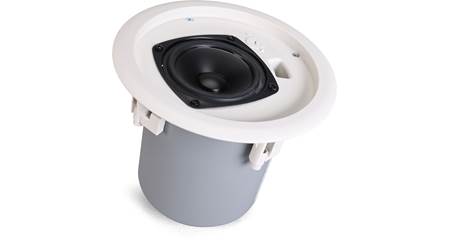

In-Ceiling Loudspeaker: The QSC AcousticCoverage AC-C4T is a ceiling mounted 4" full-range loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

4" Driver: A high quality 4" polypropylene cone transducer with butyl rubber surround offers pristine clarity through the critical vocal range for increased speech intelligibility. With 140-degrees of conical coverage, the AC-C4T reduces the number of loudspeakers required for even coverage in low ceiling applications.

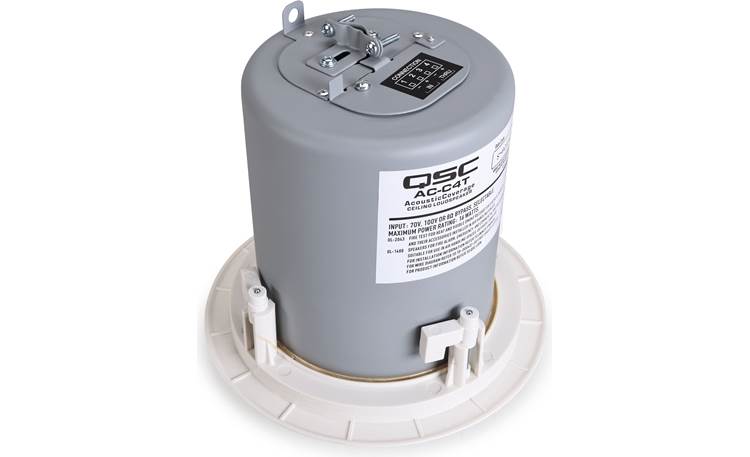

Ported Baffle: The easy to install blind mount assembly features a ported baffle which optimally tunes the galvanized steel backcan for added musicality, creating low frequency extension down to 70 Hz.

70/100V or 8-Ohm: The AC-C4T utilizes a 16-watt low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8-ohm bypass.

4-Pole Euroblock Connector: Installers will appreciate the 4-pole Euroblock connector for loop thru wiring, located under a quick access swivel plate. Eliminating the termination hassles of star topology wiring designs, the Euroblock of the AC-C4T can accept four 18AWG pairs

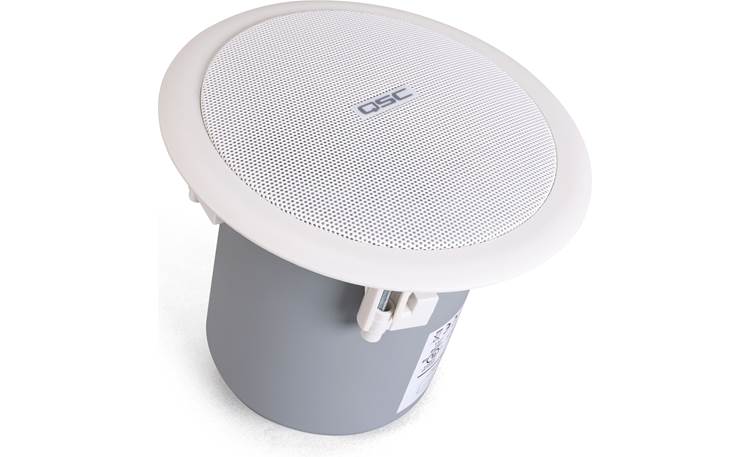

Paintable White Baffle & Grille: The AC-C4T baffle and grill are QSC standard white to match complimenting QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C4T may also be painted to match any décor.

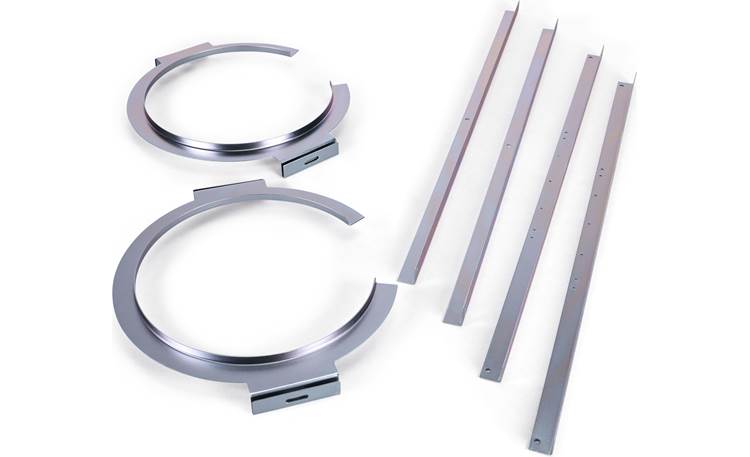

Installation Hardware: Integrated dog-ear clamps, C-rings, and tile rails are included with each pair packed assembly, complete with joining screws and cut-out templates. A safety tether tab is affixed to the adjustable conduit clasp plate for seismic sensitive installations.
