Features

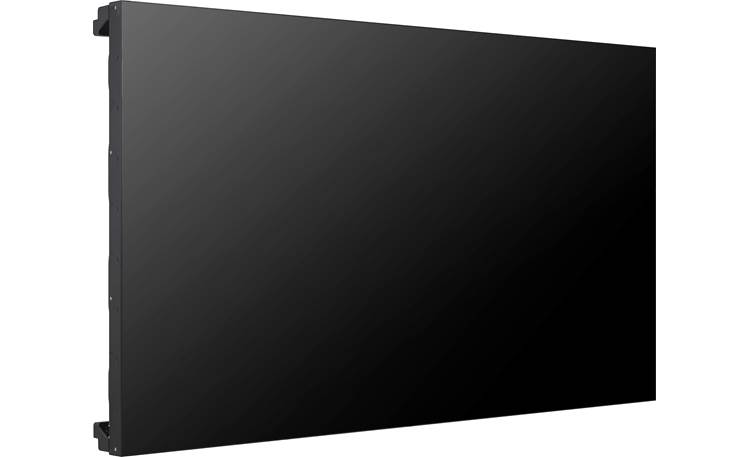

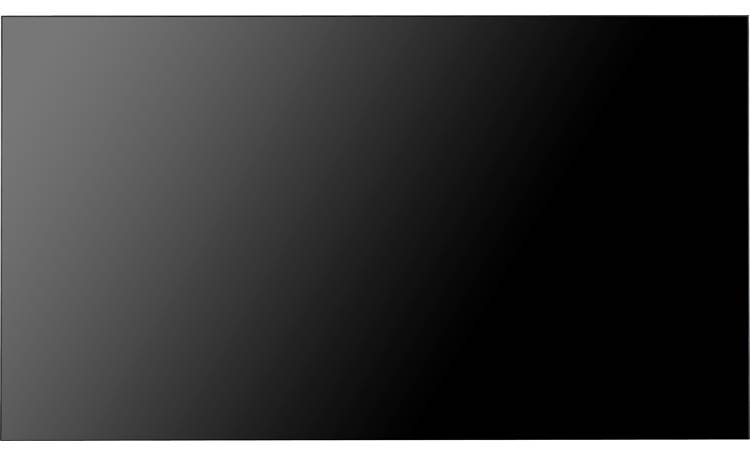

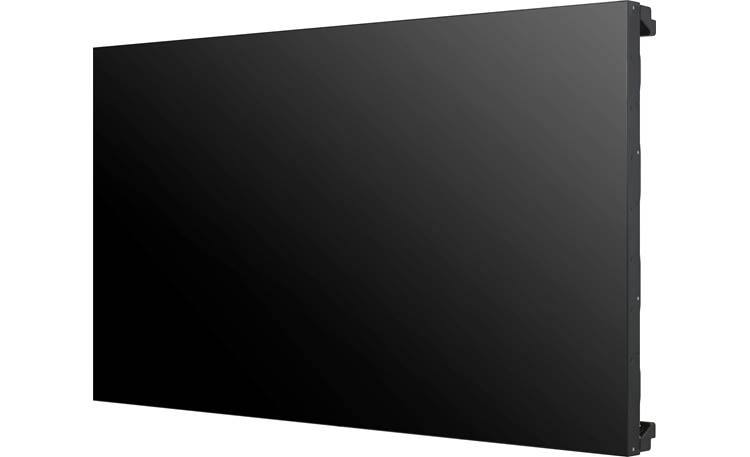

24/7 Rated: The LG VL5F Series display monitor is engineered to operate 24 hours a day, 7 days a week and also comes with a 1 year warranty guaranteeing that you are always getting the most from your commercial display. Its highly functional design allows it to deliver advertising and information in a variety of business environments.

IPS Panel: LG's IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. The viewing angle of the VL5F series is high enough to display vivid colors throughout the screen with no distortion even when mounted high on a wall. Because of this, the VL5F Series captures the attention of and captivates your viewers with lifelike colors, regardless of the viewing position.

• Screen Size: 55" (diagonal)
• Resolution: 1920 x 1080 (FHD)
• Brightness: 500 nit
• Contrast Ratio: 1,200:1 (native), 500,000:1 (dynamic)
• Color Depth: 1.07 billion colors (10-bit)
• Viewing Angle: 178 x 178 degrees
• Response Time: 8 ms

Content Management: SuperSign offers versatile content management with enhanced usability. A variety of LG digital signages, whether stand-alone, outdoor, video walls, or LED signage, can be simultaneously connected and seamlessly managed by SuperSign CMS, with a single server. Administrators are free from the restraints of managing various display types and installation places, and they can operate an array of displays easily using a PC or mobile phone. Going a step further, SuperSign CMS supports multiple accounts with different authorizations, enabling systematic and efficient management based on the role of each account

• SuperSign CMS: All-in-one content management software for editing, scheduling and distribution. Over 100 templates are available, and various special effects can be applied to make content creation easier. Contents are set as a playlist with detailed schedules and distributed to multiple displays installed at large places, wherever they are, with a single server. Users can manage content using their mobile phone as well as PC.
  • Intuitive UX: Simplicity, flow, and highlights. The GUI has been designed strictly based on user convenience and workflow. It shows integral content management items with a simple dashboard and each menu leads users to move on to the next step unconsciously without difficulties.
  • Content Editor: Basic templates are provided with visual guides for more convenient content creation. Even beginners can easily edit content just by dragging and dropping videos/images or entering text. In addition, SuperSign CMS supports a variety of video effects for flexible content production. Once each content is saved, users can set the playback duration, edit sequences or set them to play in random order as a playlist.
  • Scheduling & Distribution: Users can adjust the date and time for content playback for each display and distribute to their displays. Once the schedules are set and distributed to displays, users can check all schedules via a visualized calendar for each player. Beyond simple playback scheduling, SuperSign CMS gives users more flexibility and convenience for smoother content operation
• SuperSign Media Editor: An application for cropping and encoding videos and images. SuperSign Media Editor is specially offered for video walls with irregular layouts or LG Ultra Stretch signage which requires additional editing of original content sources. This editor is a standalone program that requires a SuperSign CMS license. It can be downloaded from the global LG partner portal.
• LG Simple Editor: Simple content editing and distribution freeware dedicated for LG Smart signage. Contents can be distributed via USB or network connection. This editor can be downloaded from the product description webpage for your SuperSign on LG.com.

Monitoring & Control: SuperSign also offers effective and reliable monitoring and control.

• SuperSign Control+: All-in-one control and real-time monitoring software. Your displays are remotely controlled by multiple accounts with a single server, and the log info and issues of each device are recorded. They are then categorized and managed as groups according to their status, enabling systematic and efficient management. This is an optional paid software license that leverages significantly more features than SuperSign Control.
  • All-In-One Dashboard: The first screen displays a dashboard which contains a brief summary of the current status, letting users check all devices at a glance. Device status is classified into 3 states and all the issues and histories are reported. Additionally, devices needing priority examination are shown as top issues requiring rapid response
  • Customizable Rule Settings: Alerts and warnings can be customized according to various parameters such as power, fan and temperature as managers see fit. When errors occur, alarms can be immediately sent out using e-mail or the SNMP protocol even if managers are out of office.
  • Real-Time Thumbnail View: Actual screen images of connected displays are regularly captured and sent in short intervals for real-time monitoring. Colored icons in the top right of the screen describe the current status so managers can intuitively assess the status.
• SuperSign Control: SuperSign Control gives managers the ability to control multiple LG displays at once. A single account is provided, which is able to check device information, set up basic properties such as power, picture mode, volume, time and even update firmware. Basic software to control up to 100 displays via network. Essential factors such as power, volume and scheduling can be remotely adjusted and firmware update is supported. This is free software available via download from the global LG partner portal.

Color Temp & White Balanced: Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using the included remote control. The VL5F Series also allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

Video Inputs: The LG VL5F Series is outfitted with a variety of video inputs including HDMI, DVD-D, Display Port (DP), and VGA (RGB).

• Dual HDMI: Dual HDMI 1.4 inputs support up to 1080p/60Hz video (not compatible with 4K).
• DVD-D In:
• DP In/Out: The Display Port In and Out can be used to daisy chain multiple LG VLF Series display monitors.
• VGA (RGB) In:

Audio In/Out: The display monitor offers a stereo minijack (3.5mm) input and output.

USB Auto Playback: USB data cloning makes managing multiple displays efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.

Remote Control: The included IR (infrared) remote provides wireless operation of the LG VLF Series display monitor. The monitor also offers an IR in, LAN in, and RS232C in/out:

• IR In: The IR In and included IR receiver allows you to extend the remote control range of the included IR remote.
• LAN In: A RJ45 LAN jack allows control from a web browser on your laptop or desktop computer.
• RS232C In/Out: The RS232 port In/Out offers support of RS232 commands via a 3rd party controller or PC.

User-Friendly Menu: The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, you can avoid having to do trial-and-error when exploring desired functions and managing displays. The GUI (Graphic User Interface) is carefully designed with a 4-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

Mounting Options: The LG VL5F Series is designed to be wall-mounted using an optional bracket (sold separately). Its large screen will captivate the attention of your passersby, or you can tile multiple LG VLF5 Series display together for an even larger visual experience. The LG VL5F can be mounted either horizontal (portrait) or vertically (landscape) to fit your desired application.

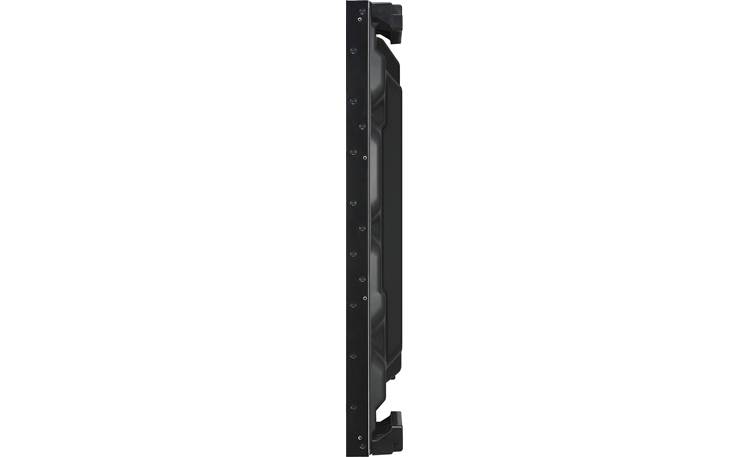

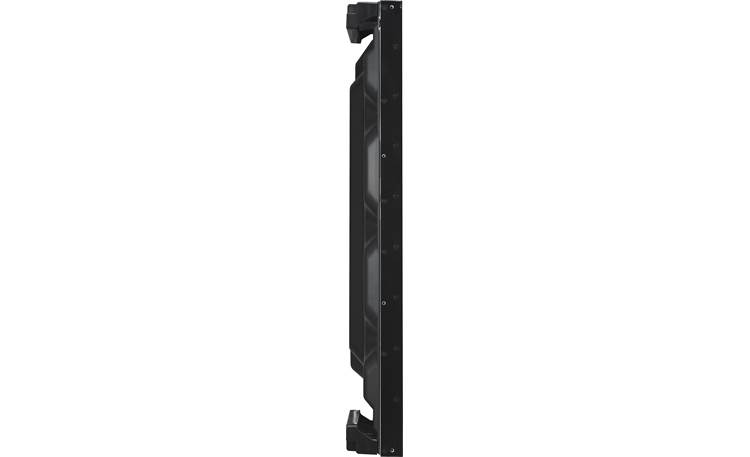

• Narrow Bezel Design: The VL5F Series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5mm bezel-to-bezel design. The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse your viewers.
• Video Wall: The VL5F Series even includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
