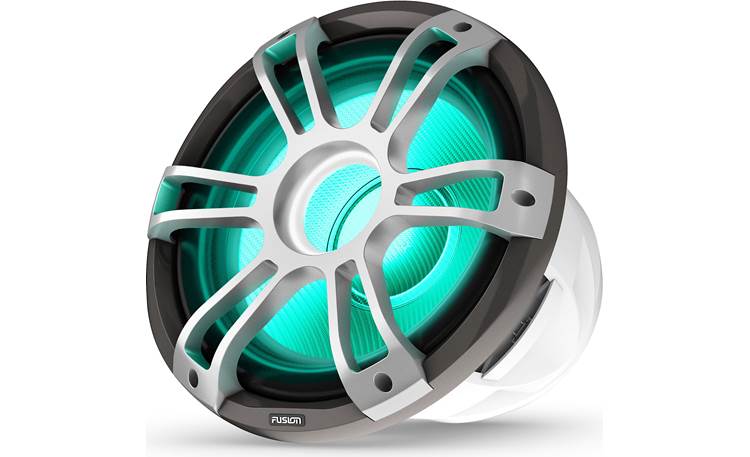

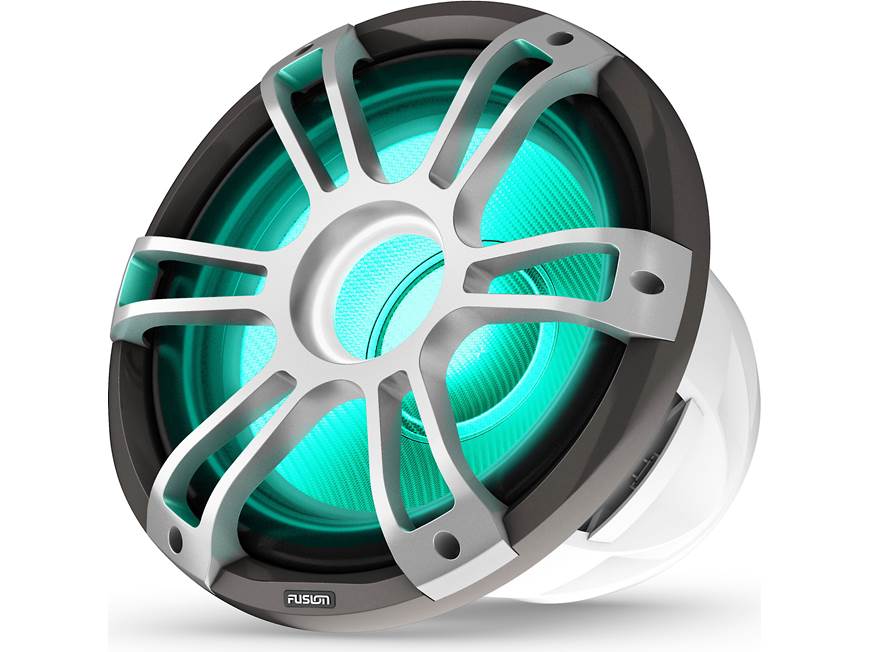

About the Fusion Signature Series 3i Marine Subwoofer
Product highlights:
- 12" marine subwoofer (SG-SL123SPG)
- polypropylene cone with rubber surround
- features CRGBW (Cool White, Red, Green, Blue, Warm White) LED lighting
- sealed basket and motor structure with Molex connectors
- includes 2-wire Deutsch connector for audio, 6-wire Deutsch connector for lighting
- IP65 and ISO12216 rated for water resistance
- grille included
Specs:
- power handling: 700 watts RMS (1400 watts peak)
- frequency response: 20-2000 Hz
- impedance: 4 ohms
- sensitivity: 86 dB

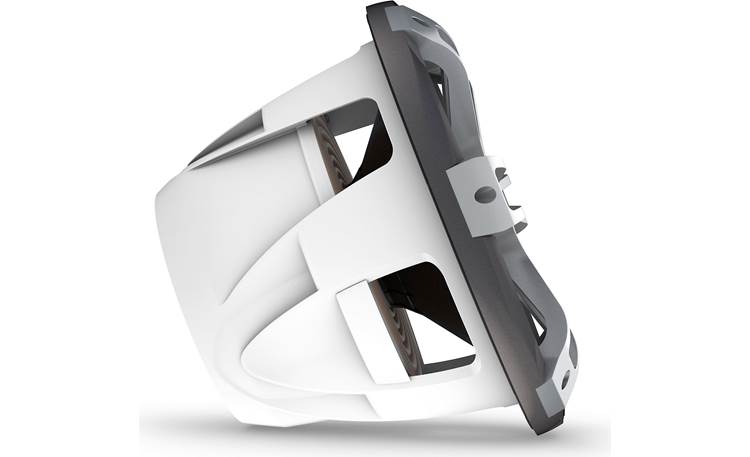

- mounting depth: 8.061"
- cutout diameter: 12"
- frame diameter: 13.88"
- sealed box volume: 2.12 cubic feet
- ported box volume: 8.83 cubic feet
- warranty: 3 years
- MFR # 010-02775-11
- Item # 9170277511
What's in the box:
Fusion Signature Series 3i Marine Subwoofer owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 12" marine subwoofer (gray) with attached 7" speaker & CRGBW input harnesses
- Spoke-style speaker grille (fixed)
- 6" Speaker harness
- 6" CRGBW harness
- Six 2" screws
- Installation instructions (En/ Sp/ Fr/ Others)
- Safety information
- Cutout template
More details on the Fusion Signature Series 3i Marine Subwoofer
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12-inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Polypropylene | |
| Surround Material | Santoprene rubber | |
| Basket Material | Plastic | |
| Grille | Gray, spoke-style, fixed | |
| Free-Air | Yes | |
| Dual Voice Coil | No | |
| Sensitivity |
86 dB at 1 watt | |
| Frequency Response | 20 - 2000 Hz | |
| Max RMS Power Handling | 700 | |
| Peak Power Handling (Watts) | 1400 | |
| Top Mount Depth (inches) | 8 1/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 12 | |
| Frame Width | 13.88 | |
| Frame Length | 13.88 | |
| Vas (liters) | 0 | |
| Fs (Hz) | 0 | |
| Qts | 0 | |
| Xmax (millimeters) | 0 | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 2.12 | |
| Minimum Sealed Box Volume (cubic feet) | N/A | |
| Maximum Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 8.83 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 5 | |
Product Research
Features
True Marine: Fusion describes the subwoofer as True Marine Accredited, meaning it's designed specifically for the marine environment and backed by Fusion's three year warranty. The subwoofer has been tested to ensure it meets or surpasses IP65 standards (waterproof and dustproof on the front of the speaker) and comply with ISO12216 standards for watertightness in areas II, III and IV of the vessel.
Polypropylene Cone: Polypropylene cone technology incorporated into the subwoofer provides high-fidelity bass reproduction along with exceptional self-damping properties. The polypropylene cone is attached with a heavy-duty Santoprene-rubber surround.

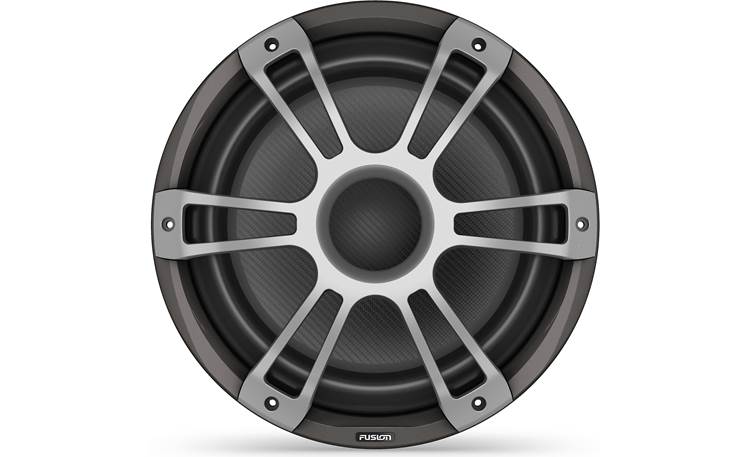

Grille: A spoke-style grille is fixed to the subwoofer and is not designed to be removed.
Compass Safe Distance: The minimum distance the subwoofer should be mounted from a compass to avoid any interference is listed in the manual as approximately 15 feet.
Subwoofer Terminals: The Fusion marine subwoofer has a seven inch length of speaker wire attached that mates with the included six inch harness using 2-way DT Series Deutsch Connectors.

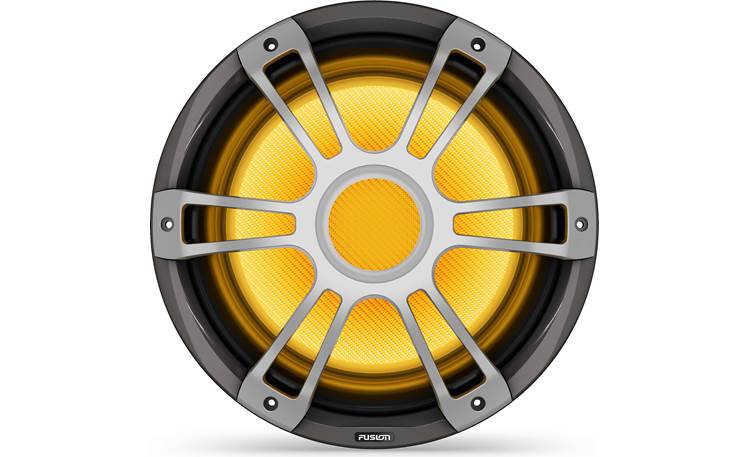

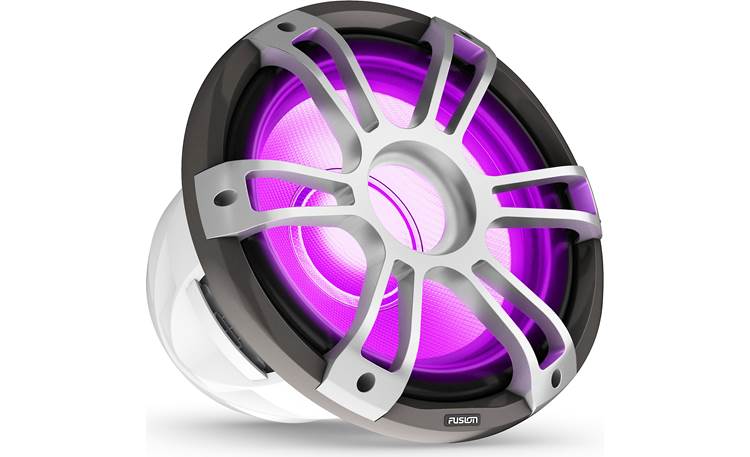

CRGBW LED Illumination: There are multi colored LEDs mounted in the back of the subwoofer grille, to create a glow on the cone. Depending on what combination of wires is connected, the LEDs can light red, green, blue, yellow, magenta, cyan, cool white, or warm white. Similar to the speaker wire, the LED power harnesses use 6-way DT Series Deutsch Connectors. A 12 volt power supply is needed to turn the LEDs on and Fusion recommends a switch and a 3-amp fuse in the power wire. The LEDs can also be controlled using Fusion's optional MS-CRGBW RC remote (item number 917CRGBWRC, sold separately).
Stainless Steel Hardware: The provided mounting screws are stainless steel.
Enclosure: Enclosure recommendations are given in the installation manual:
- Sealed: 2.12 ft³
- Ported: 8.83 ft³ (with a 4.0" diameter 5.0" long port tube)
The Fusion Signature Series 3i Marine Subwoofer replaces these items:

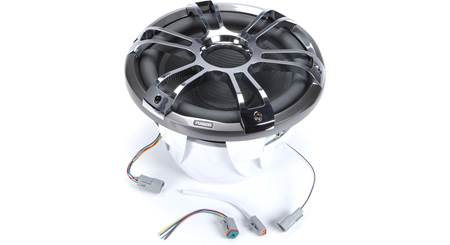

Fusion SG-SL122SPC
- polypropylene cone with rubber surround
- features CRGBW (Cool White, Red, Green, Blue, Warm White) LED lighting
- power handling: 700 watts RMS (1400 watts peak)
