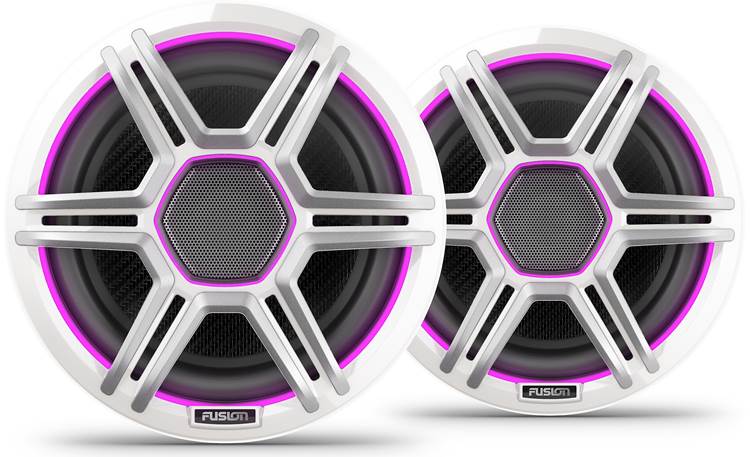

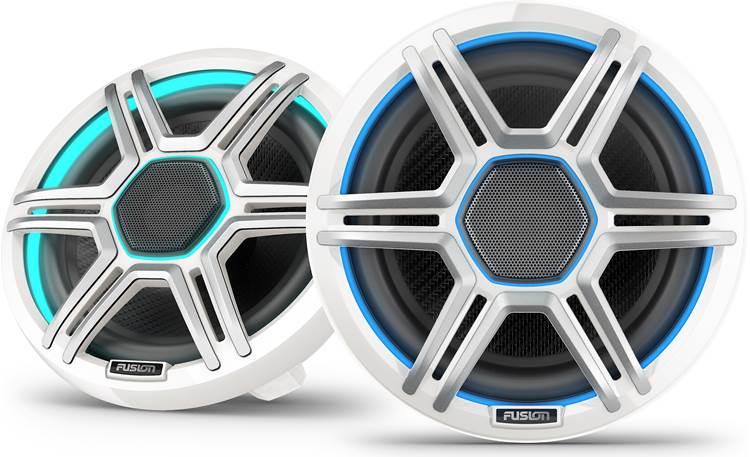

Fusion Apollo AP-FL77SPW 7.7" marine CRGBW LED speakers (Sport White Grilles)

Name: Fusion Apollo AP-FL77SPW
Brand: Fusion
SKU: 9170291811
Price: 649.99 USD
Availability: InStock

Item # 9170291811

These Fusion Apollo 7.7" marine speakers deliver powerful sound, thanks to power handling up to 100 watts RMS...

Front

1/18

2/18

Only at Crutchfield

3/18

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

From Fusion: Apollo Speakers & Subwoofers

Back

Fusion Apollo AP-FL77SPW Only at Crutchfield

These Fusion Apollo 7.7" marine speakers deliver powerful sound, thanks to power handling up to 100 watts RMS...

Item # 9170291811

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$649.99 pair

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Jon Paul

Sound, style, and and splashy colors

These Fusion Apollo 7.7" marine speakers deliver powerful sound, thanks to power handling up to 100 watts RMS (400 peak) and innovative acoustic design elements. Their built-in CRBGW lighting sets the mood for your cruises by adding Warm White and Cool White to industry-standard RGB options, creating a wide range of color blends for almost any ambiance. Sharply styled and designed to handle the extremes of a marine environment, Fusion's Apollo speakers will be a great addition to your boat.

CURV cone technology and more

Boating is hard on speakers. Heat, humidity, salt, spray, and high-pressure hose-downs at the dock can shorten the life of any speaker that's not built for life on the water. Fusion's Apollo marine speakers meet the toughest standards for UV stability and salt/fog resistance.

But just because these speakers are tough doesn't mean they're not sensitive. Fusion's CURV cone design, a woven composite fiber that's heat-pressed into a light yet super-strong shape, delivers awesome sound. Plus, treated silk dome tweeters, brawny voice coils, and sealed componentry ensure impressive performance. Sport Gray grilles are included, with other options available separately.

A rock-solid warranty

The water-resistant design complies with high standards for UV stability and salt/fog resistance, so these speakers will perform at their peak even after prolonged exposure to the elements. As part of Fusion's True Marine™ line, these rugged marine speakers are backed by a 3-year warranty.

Add a remote

Fusion's optional MS-CRGBWRC wireless remote controller gives you total control over the built-in LED lighting. You can change the color, brightness, speed, and mode by using the touch controls.

Product highlights:

pair of 7.7" 2-way marine speakers
built-in CRGBW LEDs (Cool White, Red, Green, Blue, Warm White)
includes 2-wire Deutsch connectors for audio, 6-wire Deutsch connectors for lighting
specially formed CURV woven fiber cone with rubber surround
treated 1" silk dome tweeter
built-in tweeter protection
sealed, water-resistant construction
complies with ISO12216 and IP66/67 standards for water and weather resistance

Specs:

handles up to 100 watts RMS (400 watts peak power)
frequency response: 60-22,000 Hz
sensitivity: 91 dB
impedance: 4 ohms
warranty: 3 years
MFR # 010-02918-11
Item # 9170291811
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Fusion Apollo AP-FL77SPW owner's manual

Two 7.7" 2-way marine speakers
Two spoke-style grilles (white)
Two 6" speaker harnesses
Two 6" CRGBW harnesses
Twelve 1-1/2" screws
Installation instructions (En/ Sp/ Fr/ Others)
Safety information
Cutout template

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	7.7
Design	2-way
Tweeter Design	Dome
Tweeter Composition	Silk
Woofer Composition	Woven fiber composite
Woofer Surround	Rubber
Parts Warranty	3 Years
Labor Warranty	3 Years
Specifications
Sensitivity	91 dB at 1 watt
Frequency Response	60 - 22k Hz
Max RMS Power Handling	100
Peak Power Handling (Watts)	400
Impedance (Ohms)	4
Top-mount Depth (Inches)	3 1/4
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	6 3/16
Bolt Circle	6.926

The Fusion Apollo AP-FL77SPW replaces these items:

Fusion Signature Series 3i Marine Coaxial Speakers

Product Research

Features

Marine Subwoofer: Fusion Apollo series speakers and subwoofers are designed specifically for the marine environment and backed by Fusion's three year warranty. The speakers have been tested to ensure they meet or surpasses IP66/67 standards for waterproof and dustproof integrity.

Curv Woofer Cone: CURV technology incorporates a woven fiber composite, heat pressed to form a lighter and stronger cone. This improves sound definition and increases output, along with creating better resistance to the marine environment.

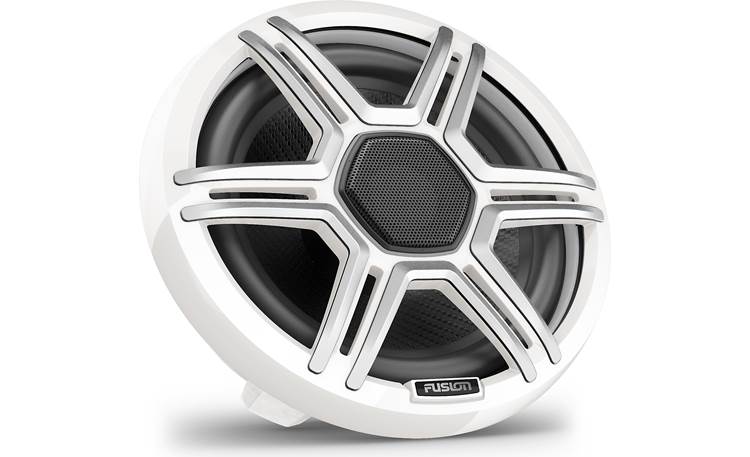

Grille: The Fusion speakers include removable spoke-style grilles.

Compass Safe Distance: The minimum distance the speakers should be mounted from a compass to avoid any interference is listed in the manual as approximately 9-3/4 feet.

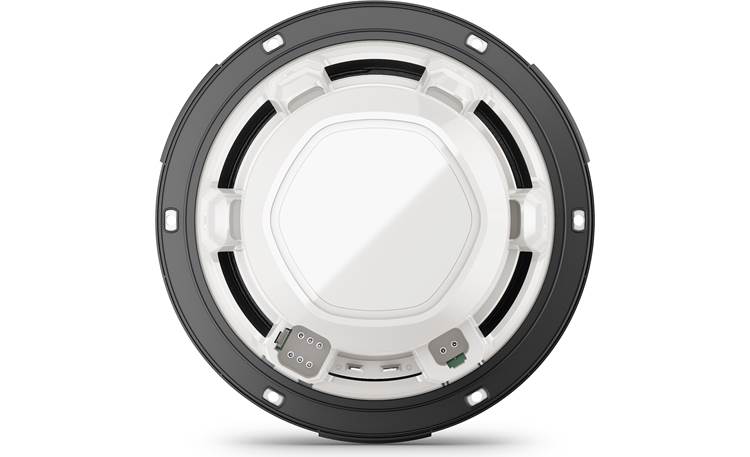

Speaker Terminals: The Fusion marine speakers feature a 2-pin socket that mates with the included six inch speaker harness using DT Series Deutsch Connectors. The other end of the speaker harness features bare-ended wire.

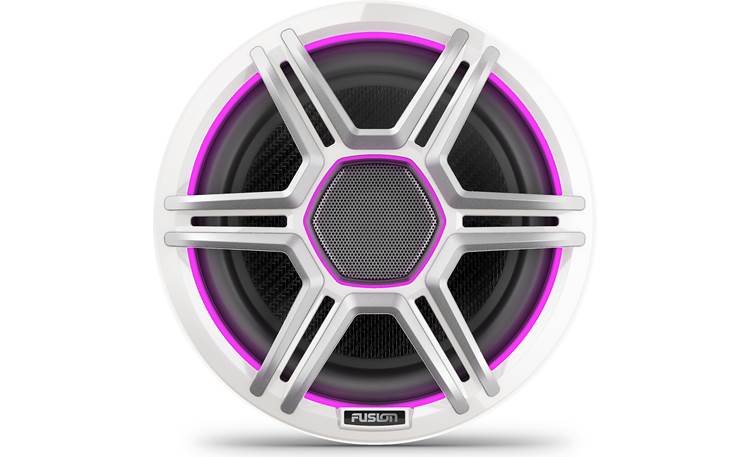

Dual-Hue CRGBW LED Illumination: There are multi-colored LEDs mounted around the perimeter of each speaker grille, creating a glow on the cone, as well as around the hexagonal tweeters, providing a distinct look. Depending on what combination of wires is connected, the LEDs can light red, green, blue, yellow, magenta, cyan, cool white, or warm white. Similar to the speaker wire, the LED power harnesses use 6-way DT Series Deutsch Connectors. A 12 volt power supply is needed to turn the LEDs on and Fusion recommends a switch and a 3-amp fuse in the power wire. The LEDs can also be controlled using Fusion's optional MS-CRGBW RC remote (item number 917CRGBWRC, sold separately).

Stainless Steel Hardware: The provided mounting screws are stainless steel.

Enclosure: Enclosure recommendations are given in the installation manual:

Sealed: 0.71 ft³
Ported: 1.06 ft³ (with a 3" diameter 6.3" long port tube)

The Fusion Apollo AP-FL77SPW replaces these items:

Fusion Signature Series 3i Marine Coaxial Speakers

7.7" CRGBW coaxial marine speakers

White, Sports Grilles

specially formed CURV woven fiber cone
treated silk dome tweeter
handles up to 100 watts RMS (280 watts peak power)
