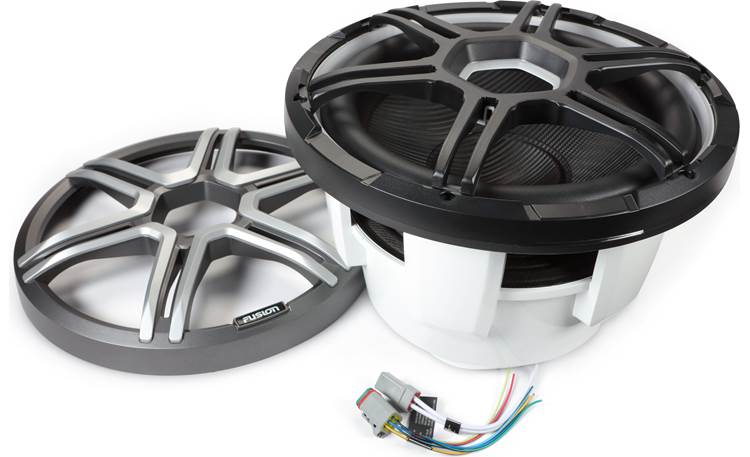

Fusion Apollo AP-SL12SPW 12" marine CRGBW LED subwoofer (Sport Gray Grille)

Name: Fusion Apollo AP-SL12SPW
Brand: Fusion
SKU: 9170291853
Price: 949.99 USD
Availability: InStock

Item # 9170291853

This thunderous 12" marine subwoofer delivers powerful bass performance and CRGBW lighting

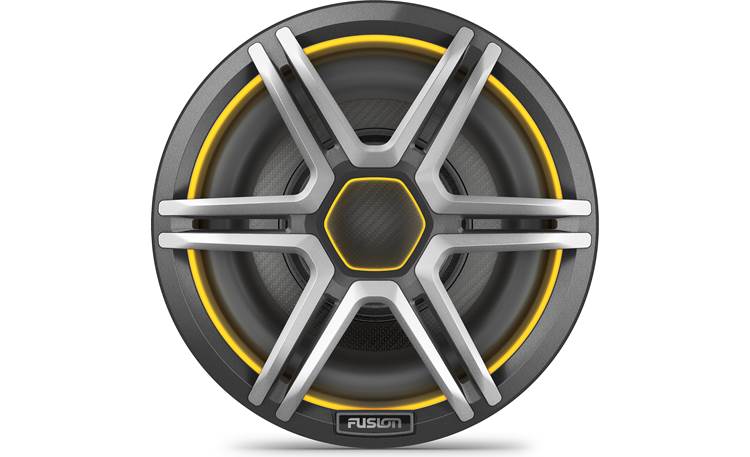

Front

1/6

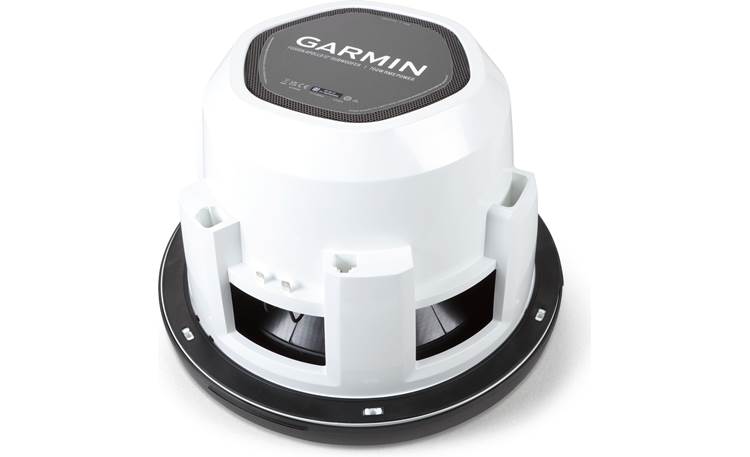

Back

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

From Fusion: Apollo Speakers & Subwoofers

Fusion Apollo AP-SL12SPW Only at Crutchfield

This thunderous 12" marine subwoofer delivers powerful bass performance and CRGBW lighting

Item # 9170291853

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$949.99 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Jon Paul

Deep bass and and splashy colors

This Fusion Apollo 12" marine subwoofer delives powerful bass performance, thanks to power handling up to 700 watts RMS (1400 peak) and innovative acoustic design elements. The built-in CRGBW lighting sets the mood for your cruises by adding Warm White and Cool White to industry-standard RGB options, creating a wide range of color blends for almost any ambiance. Sharply styled and designed to handle the extremes of a marine environment, this thumping sub will be a great addition to your boat's audio system.

CURV cone technology and more

Boating is hard on speakers and subs. Heat, humidity, salt, spray, and high-pressure hose-downs at the dock can shorten the life of any speaker that's not built for life on the water. Fusion's Apollo marine subs meet the toughest standards for UV stability and salt/fog resistance.

But just because this sub is tough doesn't mean it's not sensitive. Fusion's CURV cone design, a woven composite fiber that's heat-pressed into a light yet super-strong shape, delivers awesome sound. Plus, brawny voice coils, and sealed componentry ensure impressive performance. Grilles are included, with other options available separately.

A rock-solid warranty

The water-resistant design complies with high standards for UV stability and salt/fog resistance, so this sub will perform at its peak even after prolonged exposure to the elements. As part of Fusion's True Marine™ line, this rugged marine sub is backed by a 3-year warranty.

Add a remote

Fusion's optional MS-CRGBWRC wireless remote controller gives you total control over the built-in LED lighting. You can change the color, brightness, speed, and mode by using the touch controls.

Product highlights:

12" marine subwoofer
built-in CRGBW LEDs (Cool White, Red, Green, Blue, Warm White)
includes 2-wire Deutsch connectors for audio, 6-wire Deutsch connectors for lighting
specially formed CURV woven fiber cone with rubber surround
sealed, water-resistant construction
complies with ISO12216 and IP66/67 standards for water and weather resistance

Specs:

handles up to 700 watts RMS (1400 watts peak power)
frequency response: 20-2000 Hz
sensitivity: 86 dB
impedance: 4 ohms
top-mount depth: 7.667"
cutout diameter: 11.85"
frame width: 13.75"
warranty: 3 years
MFR # 010-02918-53
Item # 9170291853
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Fusion Apollo AP-SL12SPW owner's manual

One 12" marine subwoofer
Spoke-style speaker grille (gray)
6" Speaker harness
6" CRGBW harness
Six 2" screws
Installation instructions (En/ Sp/ Fr/ Others)
Safety information
Cutout template

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	12-inch
Impedance (Ohms)	4
Cone Material	Polypropylene
Surround Material	Rubber
Basket Material	Plastic
Grille	Spoke-style, gray
Free-Air	Yes
Dual Voice Coil	No
Sensitivity	86 dB at 1 watt
Frequency Response	20 - 2000 Hz
Max RMS Power Handling	700
Peak Power Handling (Watts)	1400
Top Mount Depth (inches)	7 11/16
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	11 7/8
Frame Width	13.75
Frame Length	13.75
Vas (liters)	0
Fs (Hz)	0
Qts	0
Xmax (millimeters)	0
Parts Warranty	3 Years
Labor Warranty	3 Years
Box Requirements
Ideal Sealed Box Volume (cubic feet)	2.12
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	8.83
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	4
Port length (inches)	5

Product Research

Features

Marine Subwoofer: Fusion Apollo series speakers and subwoofers are designed specifically for the marine environment and backed by Fusion's three year warranty. The subwoofer has been tested to ensure it meets or surpasses IP66/67 standards for waterproof and dustproof integrity.

Polypropylene Cone: Polypropylene cone technology incorporated into the subwoofer provides high-fidelity bass reproduction along with exceptional self-damping properties. The polypropylene cone is attached with a heavy-duty Santoprene-rubber surround.

Grille: The Fusion subwoofer includes a removable spoke-style grille.

Compass Safe Distance: The minimum distance the subwoofer should be mounted from a compass to avoid any interference is listed in the manual as approximately 19 feet.

Subwoofer Terminals: The Fusion marine subwoofer features a 2-pin socket that mates with the included six inch speaker harness using DT Series Deutsch Connectors. The other end of the speaker harness features bare-ended wire.

CRGBW LED Illumination: There are multi colored LEDs mounted in the back of the subwoofer grille, to create a glow on the cone. Depending on what combination of wires is connected, the LEDs can light red, green, blue, yellow, magenta, cyan, cool white, or warm white. Similar to the speaker wire, the LED power harnesses use 6-way DT Series Deutsch Connectors. A 12 volt power supply is needed to turn the LEDs on and Fusion recommends a switch and a 3-amp fuse in the power wire. The LEDs can also be controlled using Fusion's optional MS-CRGBW RC remote (item number 917CRGBWRC, sold separately).

Stainless Steel Hardware: The provided mounting screws are stainless steel.

Enclosure: Enclosure recommendations are given in the installation manual:

Sealed: 2.12 ft³
Ported: 8.83 ft³ (with a 4.0" diameter 5.0" long port tube)
