About the Fusion MS-FM77KIT

Product highlights:
- install Signature Series 3i Classic marine speakers in your boat with minimal protrusion
- works with Fusion Signature 3i Series speakers — will not work with other series or brands

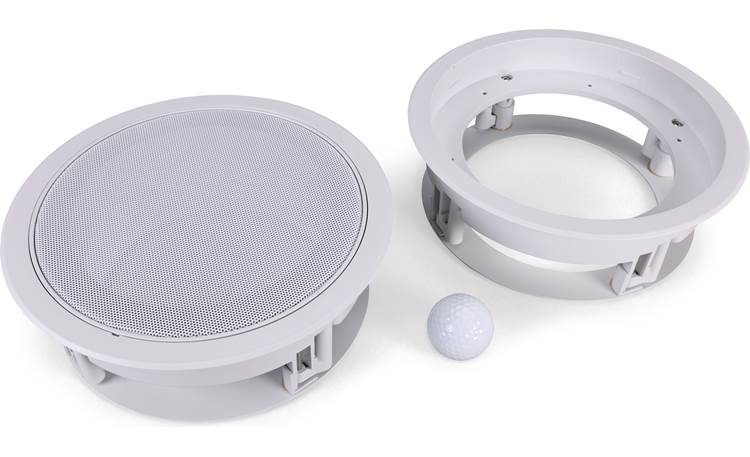

- two flush-mount baskets and two grilles
- tabs secure speakers without any additional screw holes
- mounting height: 0.08"
- max mounting depth: 4.41"
- cutout diameter: 8.46"
- warranty: 3 years
- MFR # 010-13089-10
- Item # 9171308910
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Fusion MS-FM77KIT owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Flush-mount brackets
- 2 Grilles
- Cutout template
- Installation instructions
More details on the Fusion MS-FM77KIT

Product Research
Features

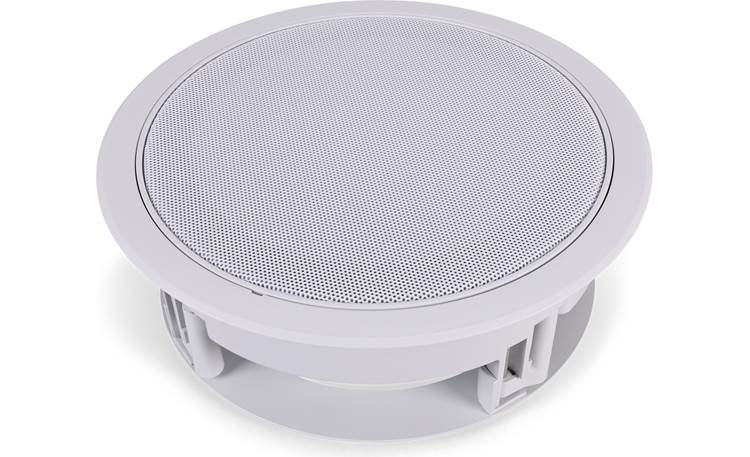

Overview: The Fusion MS-FM77KIT Signature Series 7.7" Flush Mount Kit (010-13089-10) is designed to flush mount a pair of Fusion 7.7" Signature Series 3i classic speakers (sold separately) to a bulkhead or console on your boat. The low-profile mount features a near-flat mounting profile when installed and includes a snap-in mesh grille to match the frame.

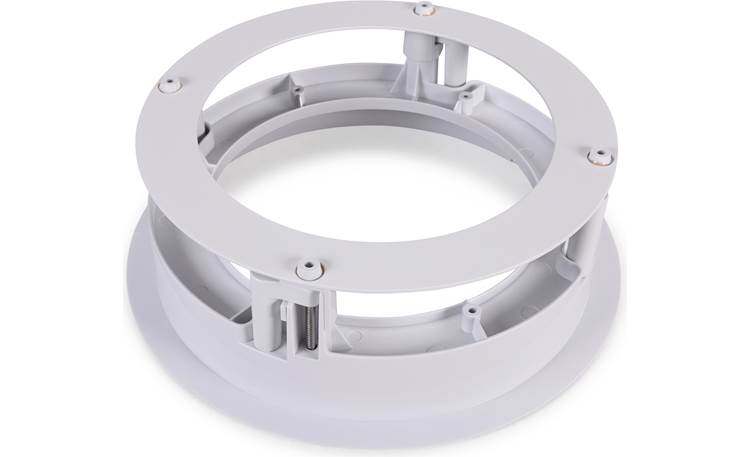

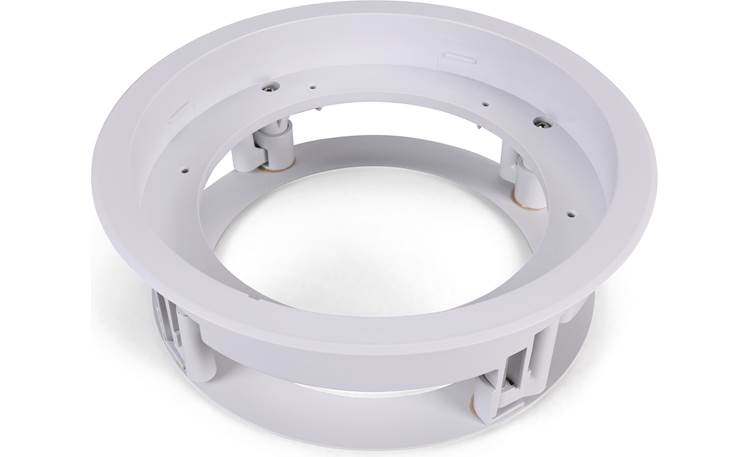

Mounting: The MS-FM77KIT will require a 8.46" (8-7/16") mounting hole to be cut into the mounting surface for installation; a cutout template is provided. With a speaker mounted in the bracket, the assembly will require approximately 4.41" of depth clearance. Once the hole is cut, the mounting bracket simply slides into it and gets locked into place with four rotating tabs around the perimeter of the bracket. Each tab has its own Phillips head screw that rotates the tab outward when tightened, locking it against the back of the mounting surface.
