Fusion MS-BB100V2 Marine Black Box Receiver

Marine Features
Variety of Sources
Audio Section
Mounting Options

Marine Features

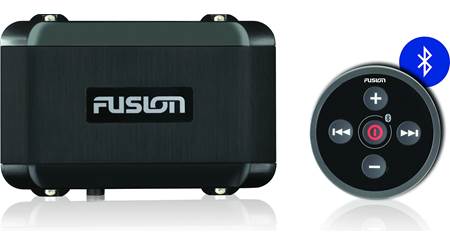

Fusion Black Box Entertainment: The Fusion MS-BB100 Black Box Entertainment System consists of a hide-away amplifier and source module, a wired remote control, wiring harness, mounting hardware, plus a NMEA 2000 system cable.

Hide-Away Amplifier & Source Module: The Fusion MS-BB100 Black Box Entertainment System includes a hide-away amplifier & source module ("Black Box"). This Black Box features a built-in amplifier and provides all source connectivity. The hide-away module is controlled by the included wired remote control. The hide-away black box is IPX3 certified, but should not be mounted where it is in direct contact with water or extreme temperatures.

Note: The MS-BB100's hide-away box can be completely disconnected from the constant +12V power supply with no settings lost.

Wired Remote Control: The MS-BB100 includes an IPx7 waterproof remote for quick source selection and volume adjustment. The wired remote comes supplied with a 6.5' connection cable and requires a round cutout for flush-mount installation. Either mount the wired remote with a conventional dash finish or integrate it into a glass helm for a flush surface mount.

Optional Remotes: Fusion offers an optional wired remote control with LCD and a wireless ANT remote (both sold separately).

• Wired Remote w/ LCD:  Install Fusion's MS-NRX300 Wired Remote (917NRX300, sold separately) in a second zone of your vessel, for localized zone volume level and global source control.
• ANT Wireless Stereo Remote: The Fusion ARX Remote (MS-ARX70, sold separately) is an ANT wireless stereo remote. ANT is an ultra-low-power (ULP) wireless networking protocol operating in the 2.4GHz band with a wireless range of 33'. Able to interface with compatible Fusion stereos, the ARX Remote can control playback in up to four audio zones.

NMEA 2000 Certified w/ Fusion-Link: The MS-BB100 Black Box Entertainment Systemis a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world's leading Multi-Function Displays (MFD) for on-screen audio control; creating a centralized control station for the entire vessel and a more user-friendly experience. NMEA 2000 is the most popular marine standard for data communication within vessels. When pairing the MS-BB100 with a NMEA 2000 supported Chartplotter or Fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time.

Fusion-Link Remote Control App: Download the Fusion-Link remote control app onto your Apple iPod/iPhone (iOS 6.0+) or Android smartphone (OS 2.2+) and turn your mobile device into a wireless remote control from the Fusion MS-BB100 Black Box Entertainment System. Once downloaded, the app allows navigation of all entertainment sources, independent volume zone control, and control over multiple Fusion Entertainment Systems connected to the same NMEA2000 network or via Bluetooth from your mobile device.

Fusion-Link Lite App: You can even download the free Fusion-Link Lite app from the Garmin Connect IQ Store to enable wireless control via ANT technology from your compatible Garmin watch (sold separately). Compatible Garmin watches include the VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, & Forerunner 935.

Variety of Sources

Bluetooth Music Streaming: With the Bluetooth receiver embedded into the wired remote, there is a reduced the likelihood of interference occurring between your smartphone/tablet and the receiver. The Fusion MS-BB100 Black Bow Entertainment System features built-in Bluetooth with support for wireless audio streaming (A2DP) and playback control (AVRCP). You'll be able to stream stored music and music apps from most Bluetooth source device directly to the Fusion marine system. With an effective range of 10 Mtrs (33ft), you can enjoy seamless streaming of your favorite audio tracks without having to return to the stereo to change tracks. Effective range measured in a straight line, range will differ depending on placement of the Bluetooth module and obstructions.

• Pairing: Before you can wireless stream music from your Bluetooth-enabled mobile device, you will first need to "pair" it with the MS-BB100 system. The system can only be paired with one device at a time.
• Controls: The MS-BB100 allows you to control basic playback functions of your streaming music from the included marine wired remote. Playback functions include Play, Pause, Previous Track, and Next Track.
• No Song/Artist Info: The unit does not display song/artist/album information.

Note: The unit only supports wireless audio streaming and does not offer any type of wireless hands-free phone communication.

USB Port: The Fusion MS-BB100's USB port enables playback & basic control of MP3 music files stored on your USB thumbdrive device (up to 32GB) through the marine system. Your USB thumbdrive must be formatted in FAT 32 with no more than 250 MP3 music files. Playback controls consist of Play/Pause and Previous/Next Track from the included wired remote. The unit does not display song/artist info. In addition, USB devices that can be charged via USB will be charged when plugged into the MS-BB100's USB port (0.5A) and the watercraft's ignition switch is set to On.

Android Open Accessory (AOA) 2.0: The Fusion MS-BB100 supports Android Open Accessory (AOA) 2.0, which lets  you connect your Android smartphone (OS 4.1-7.1.2) to the unit's USB port and listen to stored music and music apps from your Android device through the Fusion marine system. You'll be able to control basic playback functions such as Play/Pause and Previous/Next Track. Other advanced music navigation will still be done from your Android smartphone's touchscreen. You'll continue to view song/artist information from the Android device's touchscreen. You'll still be able to access other functions and applications from your Android smartphone's touchscreen, while listening to music through the receiver. If you make a call or answer a call from your smartphone while listening to music in this mode, the music will pause until you are finished with the call and then start back up again.

Note: This stereo is not compatible with Android devices in MTP or PTP mode.

iPod/iPhone Connectivity: The Fusion MS-BB100's USB port can also be used to connect your Apple iPod/iPhone/iPad with Lightning-connector. The MS-BB100 supports audio playback, basic playback functions (like Play/Pause & Previous/Next Track), as well as charging of your compatible Apple device. The Fusion MS-BB100 system is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 8/4/2017):

Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the system and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available

Aux Input: The Fusion MS-BB100 is fitted with stereo RCA auxiliary input for connecting an external audio device.

AM/FM Tuner: The MS-BB100 Black Box Entertainment System features a built-in AM/FM radio that offers manual & seek tuning. It is compatible with US & European tuning.

Audio & Tuner Section

25W x 4Ch Amplifier: The Fusion MS-BB100's hide-away black box employs a 25 watt RMS (50W Peak) x 4 channel stereo amplifier for driving two pair of full-range marine speakers.

3V/6Ch Pre-Outs: The Fusion MS-BB100 features 3V/6ch pre-outs for Zone 1, Zone 2, and Sub. The sub out is associated with Zone 1. All pre-outs provide a full-range signal.

Tone Control: You can adjust the bass, midrange, and treble for each zone.

Multi-Zone Technology: The MS-BB100 Black Box Entertainment System features multi-zone technology which enables two audio Zones with independent volume control from the receiver's built-in amplifier and pre-outs. Each audio Zone will play the same source and at the same volume level.

Note: If you desire independent volume control, you will need  download the Fusion-Link remote control app onto your Apple iPod/iPhone (iOS 6.0+) or Android smartphone (OS 2.2+), or purchase Fusion's MS-NRX200i wired remote (917NRX200I, sold separately).

Mounting Options

Hide-Away Amplifier & Source Module: This device should be mounted in a location is not exposed directly to extreme temperatures or conditions. Extended exposure to high temperatures or direct submersion will cause failure. The device must be mounted in a location with adequate ventilation on a vertical surface. Its connectors should be pointed downward to prevent moisture from entering the terminals.

• Width = 6.125"
• Height = 2.375"
• Depth = 4.375"

Flush-Mounted Wired Remote Control: The wired remote control mounts flush to the bulkhead and requires a round cut-out to accommodate. A self-adhesive foam gasket is included to provide a secure seal between the cut-out and the wired remote. A threaded-mounting collar is used to secure the wired remote to the mounting surface.

• Cutout Diameter = 2.25"
• Cutout Depth = 1.875"
• Mounting Height = 0.4375"
• Frame Diameter = 2.5625"
