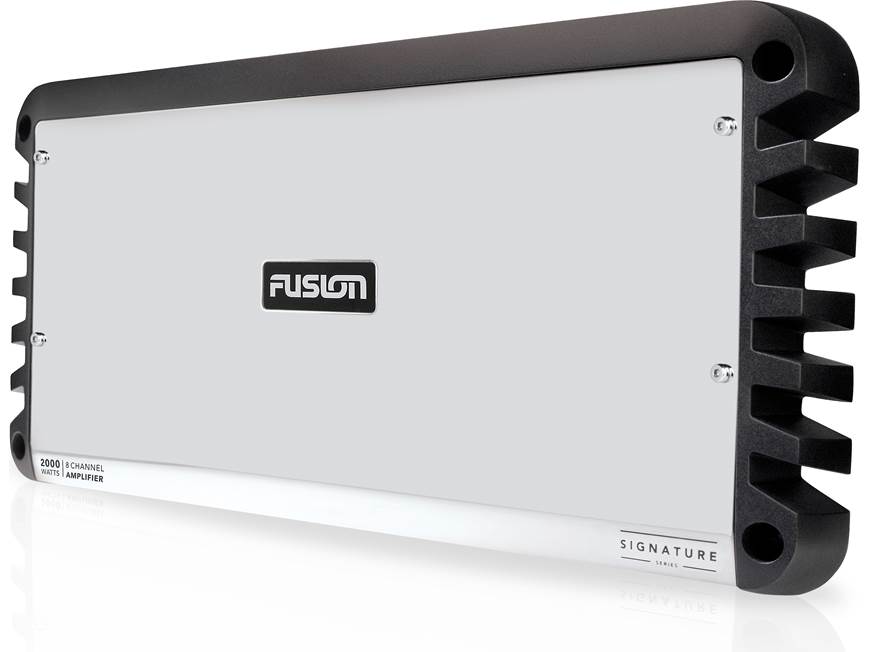

About the Fusion SG-DA82000
Tough marine performance
Tough marine performance
Fusion's Signature Series marine amps are made to deliver power reliably in the most challenging conditions. They're designed to resist moisture while putting out the power your music needs to be heard clearly over the wind and waves. This Signature Series SG-DA82000 eight-channel amplifier delivers 100 watts RMS to each of your Zone 1, 2, 3, and 4 speakers, so you'll get plenty of sound wherever you are onboard.
Multiple configurations
You can also use the amp in 6-channel mode, powering four speakers in Zones 1 and 3 while sending two subwoofers 280 watts RMS each with the Zone 2 and 4 channels bridged. Or you could use it to power 4 high-performance tower speakers with 240 watts each. Separate high- and low-pass crossovers for each Zone let you adjust the tone for each listening area. A bass boost on the Zone 2 and 4 channels will punch up the bass when you're using those channels to power subs.
Tough and good looking
The stylish stainless-steel front panel resists corrosion, plus it adds an undeniable touch of style to your installation. The amp's rugged aluminum alloy chassis acts as a heat sink, dissipating heat and increasing efficiency. A conformal-coated circuit board and water-resistant design ensure that this marine-rated amp will stand up to conditions that turn lesser electronics into ballast. As part of Fusion's True Marine line, the SG-DA82000 is backed by a 3-year warranty.
SG-DA82000 connection panel
Product highlights:
- 8-channel marine amplifier
- 100 watts RMS x 8 at 4 ohms
- 140 watts RMS x 8 at 2 ohms
- 280 watts RMS x 4 at 4 ohms bridged
- variable low- and high-pass filters (32-320 Hz, 12 dB/octave)
- variable bass boost (0-9 dB at 45 Hz)
- conformal-coated circuit board
- weather-resistant construction
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 40A x 4
- dimensions: 16-9/16"W x 2-1/4"H x 8-5/16"D
- warranty: 3 years
- MFR # 010-02162-00
What's in the box:
Fusion SG-DA82000 owner's manual
- 8-Channel Marine amplifier
- Four 40-amp ATC fuses (installed)
- Four spare 40-amp ATC fuses
- Cleaning cloth (6"x6")
- 2.5mm Allen wrench
- 3mm Allen wrench
- Four 1" Screws
- Installation manual (English/ French/ Italian/ German/ Spanish/ Portuguese/ Dutch/ Danish/ Swedish)
- Safety information
Reviews (3)
Customer reviews for Fusion SG-DA82000
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Fusion SG-DA82000
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) | 100 x 8 | |
| Frequency Response at Rated RMS Power | --- | |
| THD at Rated RMS Power | 1% | |
| Signal to Noise Ratio | 85 dB | |
| Input Voltage | 14.4v | |
| Peak Power Output (Watts x Channels) | 250 x 8 | |
| Power at 2 Ohms (Watts x Channels) | 140 x 8 | |
| Bridged Power (Watts x Channels) | 280 x 4 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Features | ||
| Amplifier Class | D | |
| Low-Pass Crossover Frequency | 32-320 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 32-320 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | 0-12 dB (Zones 2 and 4 only) | |
| Bass Boost Frequency | 45 Hz | |
| Fan Cooled | No | |
| Fuse Rating | 160 | |
| Speaker Level Inputs | No | |
| Preamp Outputs | No | |
| Height (inches) | 2-3/16 | |
| Width (inches) | 16-5/8 | |
| Depth (inches) | 8-5/16 | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
Product Research
Features
Marine Amplifier: The Fusion SG-DA82000 eight-channel marine amplifier is effectively four full range 2-channel amps built into one chassis. Each pair of channels is independently bridgeable, so the amp can be wired as 8-channel, 7-channel, 6-channel, 5channel, or 4-channel. Each 2-channel section of the amp (inputs, outputs and controls) is labeled as a zone; Zone 1, Zone 2, Zone 3, and Zone 4. The amp's conformal-coated PCB (printed circuit board) protects it against the harsh marine environment. The amp's removable stainless steel top cover protects the control panel and the connection panel on the side. Its one-piece die-cast heat sink helps to dissipate heat from the internal components to provide greater reliability and longer sustained power output.
Class-D Amplifier Technology: The SG-DA82000 features a high efficiency Class-D design with these output specifications (14.4 volt power supply, <1% THD+N):
- Power:
- 4Ω: 100 watts RMS x 8
- 2Ω: 140 watts RMS x 8
- Bridged (4Ω): 280 watts RMS x 4
- Signal to Noise Ratio:
- @ Rated Power: 85 dB (4Ω)
- @ 1 Watt: 53.1 dB (4Ω)
Protection Circuitry: The amp is equipped with circuitry to keep it operating safely. The circuitry protects against overheating (thermal), reversed power polarity, over/under voltage, and short circuited output conditions.
Connections:
- RCA Inputs: four pair of stereo RCA inputs; Zone 1, Zone 2, Zone 3, and Zone 4
- Speaker Outputs: eight pair of set-screw terminals; the terminals will accept up to 10-gauge wire; the included 2.5mm Allen wrench is used to tighten/loosen the set screws
- Power: set-screw terminal; accepts up to 2-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screws
- Ground: set-screw terminal; accepts up to 2-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screws
- Remote Turn-on: set-screw terminal; accepts up to 10-gauge wire; the included 2.5mm Allen wrench is used to tighten/loosen the set screws
- Fuses: four 40-amp ATC fuses are mounted on the side of the amp
Controls: There are independent controls for each zone, located on the top panel under the removable stainless steel cover. (A 3mm Allen wrench is included to remove the cover screws.) A flat-head screwdriver (not included) is required to adjust the rotary controls. The controls include:
- Level: rotary controls; continuously variable from 300mV to 8V (RMS)
- Crossover Frequency: rotary controls; continuously variable from 32 Hz to 320 Hz
- Crossover Selector: 3-position switches; select low-pass, high-pass, or full range (crossover bypassed)
- Bass Boost: rotary controls for Zone 2 and Zone 4 only; variable from 0 to +12dB, centered at 45 Hz
