About the Fusion XS-F40CWB

Product highlights:

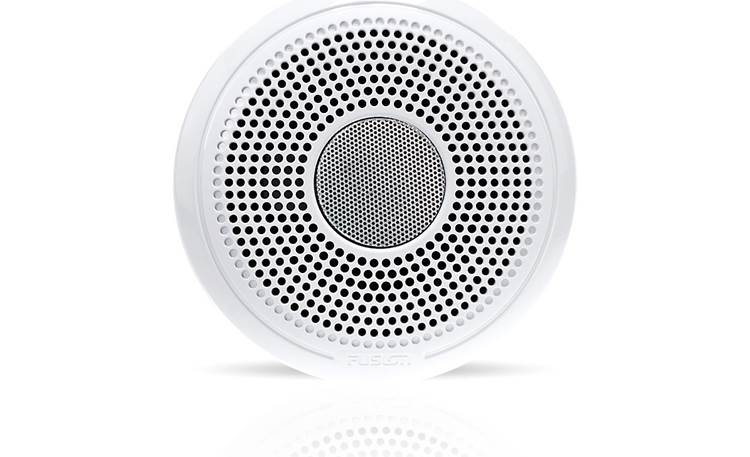

- 4" 2-way marine speakers (pair)
- sealed, water-resistant construction
- polypropylene cone with rubber surround
- aluminum dome tweeter
- UV-resistant grille
- comes with both black and white grilles
- meets IP65 water and dust resistant standards
- True Marine accredited (passed extensive testing)
- complies with ASTM standards for UV stability and salt/fog resistance
- power handling: 30 watts RMS (120 watts peak)
- frequency response: 100-18,000 Hz
- sensitivity: 87 dB
- impedance: 4 ohms
- cutout diameter: 3.696"
- frame diameter: 5.07"
- mounting depth: 2.125"
- warranty: 3 years
- MFR # 010-02199-00
- Item # 917F40CWB
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Fusion XS-F40CWB owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way Marine speakers
- 2 White grilles (installed)
- 2 Black grilles
- Twelve 1" Stainless steel screws
- Installation instructions (English/ French/ Italian/ German/ Spanish/ Portuguese/ Dutch)
- Safety and Product information
- Template
More details on the Fusion XS-F40CWB

Features & specs
General | ||
---|---|---|
Speaker Size | 4 | |
Design | 2-way | |
Tweeter Design | Dome | |
Tweeter Composition | Aluminum | |
Woofer Composition | Polypropylene | |
Woofer Surround | Rubber | |
Parts Warranty | 3 Years | |
Labor Warranty | 3 Years | |
Specifications | ||
Sensitivity |
87 dB at 1 watt | |
Frequency Response | 100 - 18k Hz | |
Max RMS Power Handling | 30 | |
Peak Power Handling (Watts) | 120 | |
Impedance (Ohms) | 4 | |
Top-mount Depth (Inches) | 2 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 3 3/4 | |
Bolt Circle | 4.6405 |
Product Research
Features
True Marine: Fusion describes these speakers as True Marine Accredited, meaning they are designed specifically for the marine environment and backed by Fusion's 3 year warranty. The speakers are tested to ensure they meet or surpass IP65 standards (waterproof and dustproof on the front of the speakers).
Compass Safe Distance: The minimum distance the speakers should be mounted from a compass to avoid any interference is listed in the manual. (Approximately 6' from the sides and 8½' from the front and rear of the speakers.)
Speaker Terminals: Each speaker has a six inch length of wire attached, terminated with male quick slides (0.25" positive and 0.205" negative).
Stainless Steel Hardware: The provided mounting screws are stainless steel.
Enclosure: If the speakers are mounted in an enclosure, Fusion recommends 0.14 ft³ sealed. An enclosure is not necessary, the speakers will operate in free-air.
The Fusion XS-F40CWB replaces these items:
- heat-pressed poly cones using German CURV technology
- titanium dome tweeter
