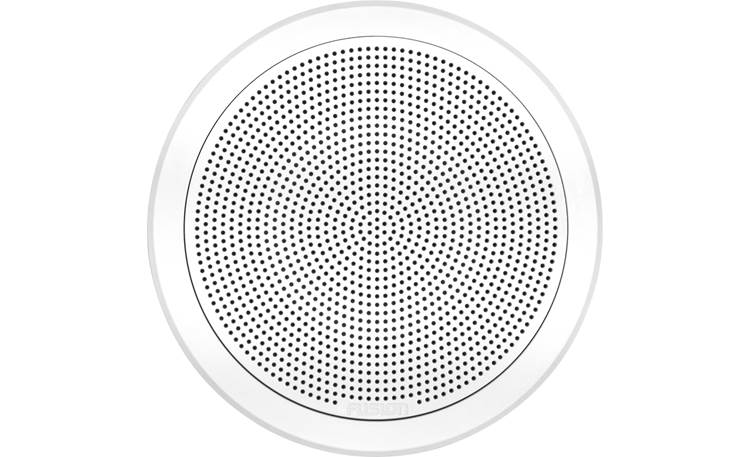

Fusion FM-F77RW FM Series 7.7" flush-mount marine speakers (Round White Grilles)

Name: Fusion FM-F77RW
Brand: Fusion
SKU: 917FMF77RW
Price: 239.99 USD
Availability: LimitedAvailability

Item # 917FMF77RW

Fusion's flush-mount speakers bring high-performance audio and a low-profile flush-mount design to your boat.

Front

1/6

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Fusion's flush-mount speakers bring high-performance audio and a low-profile flush-mount design to your boat.

Item # 917FMF77RW

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$239.99 pair

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Jon Paul

Clean sound and clean design

Fusion's flush-mount speakers bring high-performance audio and a low-profile flush-mount design to your boat. These sleek 7.7" speakers offer a mounting profile that tops out at 3/32” (2.5mm), so they'll fit nearly flat and blend right into today's marine design trends. Another plus — Fusion's innovative “speaker legs” keep the speaker in place so you don't have to drill holes in your boat.

Made for life on the water

These Fusion FM Series speakers combine beauty and brawn, with power handling up to 50 watts RMS (200 peak). Designed by people who love both music and boating, these speakers undergo rigorous testing to ensure that they're ready to rock, even in the extremes of a marine environment.

Three-year warranty

They're made to withstand heat, humidity, salt, spray, and high-pressure hose-downs at the dock, so they'll perform for seasons to come. As part of Fusion's True Marine™ line, these Signature Series speakers are even backed by a 3-year warranty.

Available in Black or White

Product highlights:

7.7" 2-way marine speakers (pair)
polypropylene cone with rubber surround
aluminum dome tweeter
flush-mount design
round grilles
Fusion True Marine™ accredited
- sealed, water-resistant construction
- UV-resistant grille
- meets IP65 water and dust resistant standards
- complies with ASTM standards for UV stability and salt/fog resistance

Specs:

power handling: 50 watts RMS (200 watts peak)
frequency response: 80-18,000 Hz
sensitivity: 91 dB
impedance: 4 ohms
cutout diameter: 6.32"
frame diameter: 7.102"
mounting depth: 3.153"
warranty: 3 years
MFR # 010-02300-00
Item # 917FMF77RW
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Fusion FM-F77RW owner's manual

Two 2-way Marine speakers
2 Grilles
Installation instructions (English/ French/ Italian/ German/ Spanish/ Portuguese/ Dutch/ Danish/ Finnish/ Norwegian/ Swedish/ Chinese)
Safety and Product information
Template

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	7.7
Design	2-way
Tweeter Design	Dome
Tweeter Composition	Aluminum
Woofer Composition	Polypropylene
Woofer Surround	Cloth
Parts Warranty	3 Years
Labor Warranty	3 Years
Specifications
Sensitivity	91 dB at 1 watt
Frequency Response	80 - 18k Hz
Max RMS Power Handling	50
Peak Power Handling (Watts)	200
Impedance (Ohms)	4
Top-mount Depth (Inches)	3 3/16
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	6 3/8
Bolt Circle	0

Product Research

Features

True Marine: Fusion describes these speakers as True Marine Accredited, meaning they are designed specifically for the marine environment and backed by Fusion's 3 year warranty. The speakers are tested to ensure they meet or surpass IP65 standards (waterproof and dustproof on the front of the speakers).

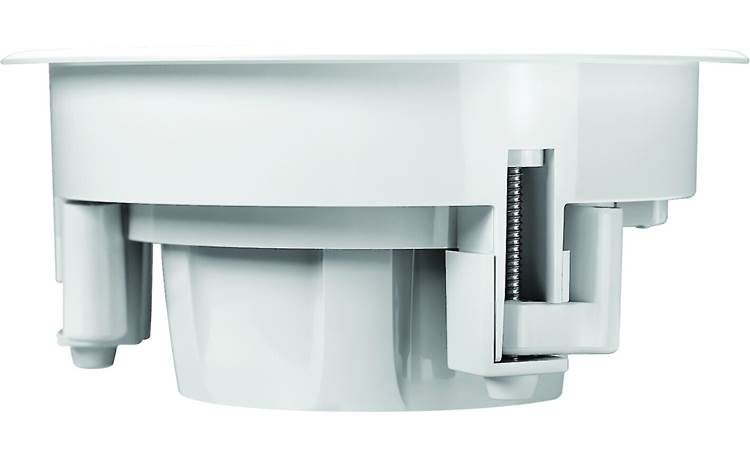

Mounting: Unlike most marine speakers, the FM-F77RWs are designed to mount in a round cutout using three rotating cam-locks. The cam-locks rotate into place when you start tightening the mounting screws, then clamp over the ceiling/wall material to securely hold the speaker. The panel the speaker mounts to must be at least ⅛" thick, and less than 1" thick. Each speaker requires a round opening, approximately 6⅜" diameter, and a minimum mounting depth of 3¼". The cams extend just over ¼" beyond the speaker frame.

Compass Safe Distance: The minimum distance the speakers should be mounted from a compass to avoid any interference is listed in the manual. (Approximately 8' from the sides and 9½' from the front and rear of the speakers.)

Speaker Terminals: Each speaker has a seven inch length of speaker wire attached, terminated with male quick slides (0.25" positive and 0.187" negative).

Enclosure: If the speakers are mounted in an enclosure, Fusion recommends 8 liters (0.28 ft³) sealed. An enclosure is not necessary, the speakers will operate in free-air.

Power Handling: Fusion lists two RMS power figures in the manual; RMS Power of 50 watts, and a Recommended Amplifier Power range of 20-150 watts RMS per channel.

Woofer Size: Fusion calls this speaker a 7.7", which is similar to its frame size. However, the diameter of the woofer cone is approximately 4½".
