Overview

by Crutchfield's Jon Paul

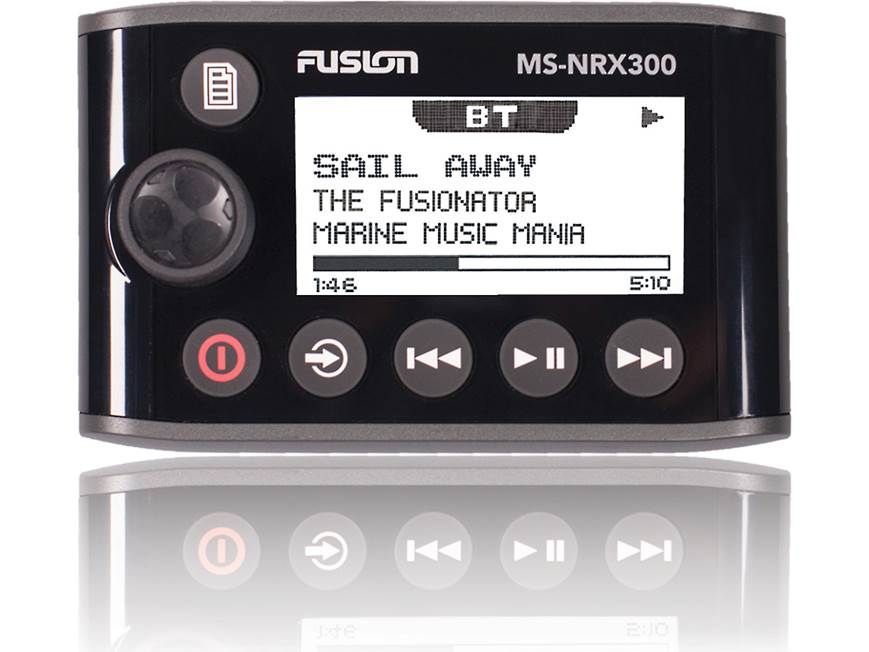

Not your average marine remote

A wired remote with an LCD screen is a wonderful thing to have, especially when you're on a larger boat. Knowing which song's playing is great, but it's much more important to know what the weather is doing — or about to do. That's what makes Fusion's MS-NRX300 marine-rated remote control/repeater such a great addition to your vessel's entertainment/information system.

KEEP READING

Not your average marine remote

NMEA 2000-certified

This NMEA 2000-certified remote/repeater can communicate with other NMEA 2000 devices connected to the network. This wired remote gives you the multi-zone entertainment control you want, plus important info you need, like depth, speed, and wind direction. With the MS-NRX300, you'll be able to quickly access important NMEA 2000 network data — all in a device that fits in the palm of your hand. The MS-NRX300 monitors the following data:

Wind direction
Wind speed
Depth
Speed over ground
Speed through water
Heading
Position
Water temperature
Atmospheric pressure
ETA

Versatile, tough, and easy to install

Installing an MS-NRX300 remote in each of the independent audio zones of your vessel will give you localized zone volume and global source control. You can control each audio zone independently using multiple remotes connected to a compatible Fusion receiver, or manage your whole system from a single remote. Wherever you are, you'll see what you're doing on the multi-line 2.6" LCD screen. The bonded glass screen makes it easy to access your iPod music library and view track, artist and song information day or night.

The MS-NRX300 features a fully sealed enclosure that's rated IPX7 for water resistance, so it's perfectly happy when used on a swim platform or out on deck in the salt and spray. As a part of Fusion's rugged "True Marine" lineup, it's backed by a 3-year warranty.

Connect this remote to your NMEA 2000 network

This versatile remote is also easy to install. It comes complete with the cabling you'll need to integrate it into an existing NMEA 2000 network. All you need to do is connect the receiver and the MS-NRX300 to the same backbone for instant communication.

You'll need an additional cable to connect this remote to Fusion MS-IP700, MS-AV700 and first-gen MS-RA205 marine receivers: the CAB000860 cable for NMEA 2000 networks or the CAB000859 cable for Fusion audio-only networks.

NMEA 2000 note: To learn more about NMEA 2000 connectivity, check out our article explaining "nautical networking".

READ LESS

Product highlights:

marine-rated, NMEA 2000-certified remote/repeater
control entertainment features, and access NMEA 2000 network data
info is easy to see on the multi-line 2.6" LCD screen
install multiple remotes for localized zone volume and global source control
sealed enclosure rated IPX7 for water resistance
bonded-glass screen stands up to rough conditions
works with a variety of Fusion receivers
compatible with all Fusion-Link partnered multi-function-displays when connected to a supported Fusion marine stereo.
installation cabling included
warranty: 3 years
MFR # 010-01628-00

What's in the box:

Fusion MS-NRX300 owner's manual

Marine wired remote control (attached 3' proprietary cable)
Dust cover
20' NMEA 2000 backbone cable
NMEA 2000 T-connector
NMEA 2000 female terminator
NMEA2000 in-line terminator
2 End-caps
Gasket
4 Screws
Mounting Template
Quick Start Manual
Installation Instructions
Important & Safety Product Information

Reviews (22)

Loading reviews...

Average review:

22 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

filterStar

Customer photos

Customer provided image, click to load a larger version.

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Was this helpful?

<< >>

Details

Researched by Crutchfield's Stacey B.

The Fusion MS-NRX300 replaces these items:

FUSION MS-NRX200I

Product Research

Features

Marine Wired Remote: Fusion's MS-NRX300 marine wired remote can be used to add localized control of a compatible Fusion marine entertainment system (sold separately) to any vessel.

Compatible Fusion Products: The MS-NRX300 marine wired remote is compatible with the following Fusion marine stereos -

MS-UD Series: MS-UD750, MS-UD650, MS-UD755
MS-AV Series: MS-AV750, MS-AV650, MS-AV700i, MS-AV755
MS-RA Series: MS-RA70N, MS-RA205, MS-RA210, MS-RA670, MS-RA770
MS-BB Series: MS-BB100, MS-BB300
MS-IP Series: MS-IP700i

Connectivity: You can connect the MS-NRX300 remote control to a Fusion stereo using a Fusion remote control network or an existing NMEA 2000 network, depending on the stereo. Some stereo models support the powered NMEA 2000 network connection only.

Powered By Fusion Radio: Some Fusion radios have the ability to power the wired remotes (up to 3). If equipped, you must turn on the NRX POWER setting in the compatible radio's menu.
NEMA 2000 Backbone: The MS-NRX300 can be connected and received power via an already existing NEMA 2000 network using NEMA 2000 backbone cable.
Optional Power Cable: If the Fusion radio does not have the NRX POWER option in Menu and is being used in a "stand-alone" installation where this is no existing NEMA 2000 network or backbone, you will need Garmin's 010-11079-00 cable (sold separately) for power.

Multi-Zone Capability: You can install a MS-NRX300 remote in each independent audio zone, up to four zones depending on your Fusion marine entertainment system, to create localized volume control, as well as, global source control. Now you have even more control in creating a customized audio entertainment experience around your vessel.

Optically-Bonded 2.6" LCD Screen: The MS-NRX300 features a large, high-contrast, daylight viewable, optically-bonded 2.6" LCD screen that provides a crystal clear display and prevents fogging on the high seas - making it easy to navigate and stay in control of your marine audio entertainment experience. You can adjust the display's backlight brightness and contrast level.

IPX7 Waterproof: Perfect for installation on a swim platform, deck or within the cabins, the MS-NRX300 is designed and engineered for the marine environment. The MS-NRX3000 complies with IPX7 waterproof standards.

NMEA 2000 Certified: The MS-NRX300 is certified for connection to any NMEA 2000 network making for a quick and easy installation. Once connected, the wired remote will double as a NMEA Repeater. The MS-NRX300 remote control can be configured to display supported NMEA2000 network data from compatible marine electronics connected to the same network. The following information is available -

Wind Direction
Wind Speed
Depth
Speed Over Ground
Speed Through Water
Heading
Position
Water Temperature
Atmospheric Pressure
ETA

Mounting Options: The MS-NRX300's innovative design allows you the option of either surface-mounting the wired remote to the bulkhead or the ability to flush-mount the wired remote and integrate it into a glass helm. The wired remote control mounts flush to the bulkhead using the four included screws (3.75" x 1.6875" apart) and also requires a 1.625" cut-out to accommodate routing of the attached cable. A self-adhesive foam gasket is included to provide a secure seal between the cut-out and the wired remote. The outer dimension of the wired remote's front-panel is 4.375" (w) x 2.8125" (h) x 1.125" (d).

Specifications:

Operating Voltage: 10.8 - 16Vdc Negative ground
Current Consumption: 110mA @12Vdc
NMEA 2000 LEN: 3 (150mA)
Operating Temperature: from 32 to 122°F
Storage Temperature: from -4 to 158°F

The Fusion MS-NRX300 replaces these items

FUSION MS-NRX200I

Wired marine remote and NMEA 2000 repeater

4 reviews

info is easy to see on the multi-line 2.6" LCD screen
install multiple remotes for localized zone volume and global source control
sealed enclosure rated IPx5 for water resistance

Accessories

Loading accessories...

Q&A

11 questions already asked

The device recognizes the iPhone when attached via the USB, but no sound is generated. Is there a setting or configuration that can remedy this?

shawn Oct 05, 2022

1 answer

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.

zachary Oct 05, 2022 (Staff)

Is this compatible with the MS-RA210?

larry May 12, 2021

1 answer

If the great experts at Crutchfield don't have the answer your best bet would be to call Fusion. Best Luck

william May 12, 2021

Can this remote link up to a clarion head unit? If so, will it also work with my Garmin Nav through NMEA 2000 network?

rob Oct 22, 2020

2 answers

I am not aware of a way to do so. Call Fusion directly for better guidance. Good luck

william Oct 22, 2020

I'm fairly certain that the remote is only compatible with other Fusion devices.

clay Oct 22, 2020

Is this remote compatible with the MS BB 100 as well as the included remote?

dabney Jul 17, 2020

1 answer

the Fusion MS-NRX 300 will work with the MS BB 100 if you are using a NMEA 2000 network. The display is nice and easy to see ,compact and easy to read however, it will not directly plug into the Fusion BB100 Black box as the wired remote included with the Black Box. The NMEA 2000 network is easy to install and gives additional flexibility for other devices. A NMEA 2000 cable would be needed to connent to the network. As a side note, Garmin has fish finders and chart plotters that allow the functionality that you are looking to get.

robert Jul 17, 2020

Is this compatible with the RA70 head unit?

jamie Apr 10, 2018

3 answers

Sorry I'm not sure. You'll need to ask a rep.

kenneth Apr 10, 2018

I think it has to be the RA70N to be compatible. The head unit must have an NMEA2000 connection. Even if only connected to the remote. Connecting to a larger network is optional.

michael Apr 10, 2018

Sorry don't know. Is their webpage helpful?

zachary e Apr 10, 2018

what size mounting hole does this require? I have the old round fusion remote that i need to replace and and wanted a remote that would fit the round hole in my dash

david Aug 08, 2017

2 answers

The wired remote control mounts flush to the bulkhead using the four included screws (3.75" x 1.6875" apart) and also requires a 1.625" cut-out to accommodate routing of the attached cable. A self-adhesive foam gasket is included to provide a secure seal between the cut-out and the wired remote. The outer dimension of the wired remote's front-panel is 4.375" (w) x 2.8125" (h) x 1.125" (d). You will find this information, and more, by clicking the "Details" tab on the unit's main webpage. I hope that helps. My Bio: https://www.crutchfield.com/bio/Ryan

ryan Aug 10, 2017 (Staff)

It is a square head unit with the screws being in the top and bottom corners of the unit. More than likely it will not fit your current mount. I have not seen the round unit in person so I can not confirm that, but mine did have 4 screws at almost the edge of each side. Hope that helps

anthony Aug 09, 2017

Can this be installed flush, like the 3rd & 4th images imply? I'm considering it for a custom built car installation where I'd like the radio tucked away and hidden while the display is small & in the dash.

doug Jul 27, 2017

4 answers

Had the same exact question and figured out that the grey top/down sides come off the remote to allow you to flush mount it. You need to slide them up, there are two clips at the bottom of each cover, about 0.6" from right/left side. Slide something thin between the bottom edge of the remote and the grey side to lift it up, it should come right off.

vlad v Sep 21, 2020

Interesting: this is from Fusion directly, "The MS-NRX300 features a sleek new innovation: the glass helm flush mounting option. You can now choose either a flush mount for a stunning glass helm finish, or you can easily install with the conventional dash mount finish." So that would seem to answer your question. However, there is still no reference to mounting it this way in either the manual or the installation manual. I'll keep researching.

allyson Aug 01, 2017

It's definitely designed to sit flush TO THE DASHBOARD (I.e., other than the cylinder in the middle where the wire comes out it has a flat back) but the thing does stick out, panel and of course the volume knob. To make it TRULY flush you would have to recess it somehow.

allyson Jul 30, 2017

Yes, it can be flush mounted.

shawn Jul 28, 2017

Is this compatible with an MSRA55?

ryan Jun 08, 2017

1 answer

Thanks for the question! However, I'm afraid the Fusion MS-NRX300 is not compatible with their MS-RA55 receiver. If you'd like to discuss other Fusion units that would work with the MS-NRX300 remote control, please feel free to contact an Advisor directly by phone (888.955.6000).

david Jun 12, 2017 (Staff)

Would you mount this so you can access it from your dive platform? I'd like to mount it so that you can control the radio without having to hop on the boat. I have an armstrong bracket on the boat already.

lakipolitis Jan 26, 2017

2 answers

I would not mount the main unit close to water. While the face is waterproof, the unit itself has cooling vents. I'd buy the remote and you can mount that down near the water.

j kemp Jan 26, 2017

You could mount it on your dive platform, as I understand the unit is fully waterproof. I would purchase the remote and mount that on the dive platform, leaving the main unit near the helm or in the cabin and away from the engine(s). Being that close might introduce noise into the system.

shawn Jan 26, 2017

Will this unit work with the MS-AV700i?

marco Oct 14, 2016

1 answer

Yes it would. The MS-NRX300 marine wired remote is compatible with a wide variety of Fusion Marine stereos including the MS-AV700i. I hope that helps! My bio: http://www.crutchfield.com/Support/Bio.aspx?bio=159

david Oct 19, 2016 (Staff)

Does this remote work with the MS-UD/AV650?

john Oct 01, 2016

1 answer

Yes it does and you can run up to three of them I'm running 2 of them on mine and I'm using that same head unit. But t I had an issue with them wanting to communicate with the head unit at first. It was giving me a message saying "waiting for network check connections". All the connections were correct. I finally held down the menu button and got them to communicate. In my opinion this head unit and remotes are the best in the market. However, I hate the way the remotes hook up. The stereo and remotes both have female connections but the extension cord had a male and female. You have to use 2 t's to connect. The easiest stereo to set up and operate I've ever used.

woodie Oct 01, 2016
