About the Memphis Audio MJP69

Product highlights:
- 6"x9" treated cone woofer (single)
- handles up to 200 watts RMS (400 watts peak)
- water-resistant design for installation in motorcycles, boats, side-by-sides, UTVs, and ATVs
- aluminum basket
- aluminum dustcap and accordion cloth surround
- sensitivity: 102 dB
- frequency response: 98-20,000 Hz
- impedance: 4 ohms
- gold-plated compression speaker terminals
- top-mount depth: 2.766"
- cutout dimensions: 8.9" x 6"

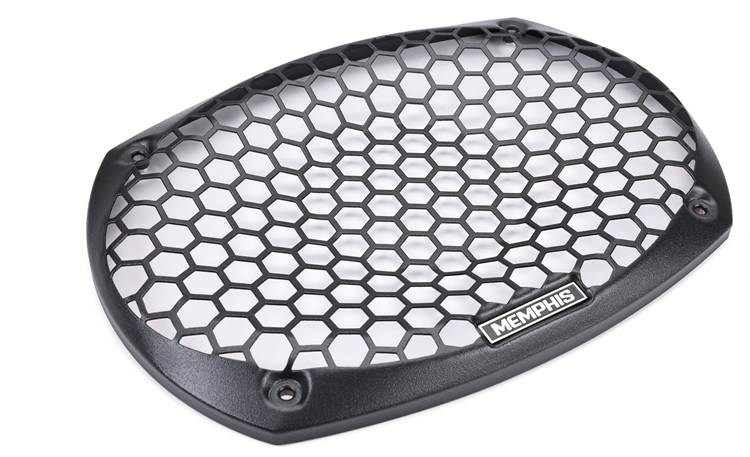

- grille included
- warranty: 1 year
- MFR # MJP69
- Item # 953MJP69
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Memphis Audio MJP69 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One MJP69 Woofer
- One Grille
- Template
- Specs printed on box
More details on the Memphis Audio MJP69

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 1-way | |
Woofer Design | Cone | |
Woofer Material | Paper | |
Woofer Surround | Fabric | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 102 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 98 - 20k Hz | |
Maximum RMS Wattage | 200 | |
Peak Power Handling (Watts) | 400 | |
Top-mount Depth (Inches) | 2 13/16 | |
Bottom-mount Depth (Inches) | 3 1/16 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.259 | |
Frame Width | 6.505 | |
Frame Length | 9.306 |
Product Research
Features
Phase Plug: The phase plug in the center of the woofer ensures a smooth, flat off-axis frequency response by preventing the higher frequency sound waves emanating from one side of the cone from interfering with sound waves from the other side of the cone.

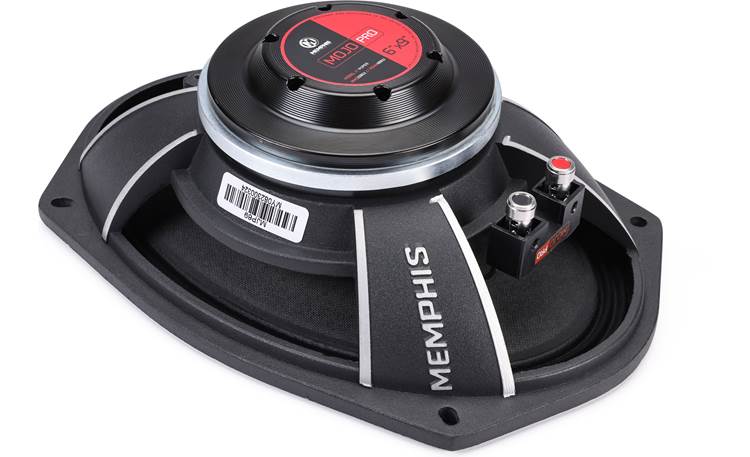

Terminals: The woofer has spring post wire terminals that accommodate up to 12-gauge wire.
Crossover: No crossover is included with this speaker.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Bad to the bone for a 6 x 9. I have 200 watts on it from an amplifier from Crutchfield and boy does it sound perfect in my 1967 Plymouth GTX trunk deck.
Sean from Muscle Shoals, AL
