About the Memphis Audio MJPT25

Product highlights:
- 1" aluminum dome tweeters (pair)
- grilles included
- handles up to 100 watts RMS (200 watts peak)
- frequency response: 1,500-20,000
- sensitivity: 105 dB
- top-mount depth: 1-1/2"
- warranty: 1 year
- MFR # MJPT25
- Item # 953MJPT25
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Memphis Audio MJPT25 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 MJPT25 Tweeters
- 2 Threaded tweeter trim rings (installed)
- 2 Threaded tweeter mounting collars (installed)
- 2 Capacitors
- Template
- Specs printed on box
More details on the Memphis Audio MJPT25

Product Research
Features

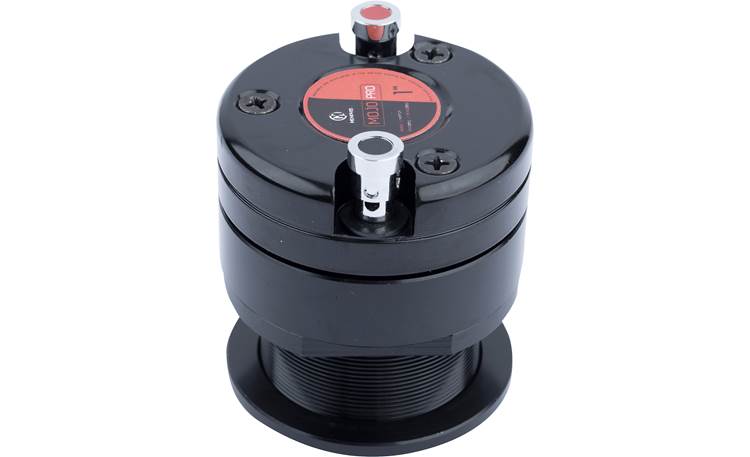

Mounting: The tweeters are designed to be flush mounted from the bottom, with the mounting surface sandwiched between the included threaded mounting collar and threaded trim ring. The threaded shaft is approximately 1⅛" tall, so the tweeter can be positioned within a range of depth/mounting height combinations.
Measurements:
- Required Cutout Diameter: 1.7" (compatible with 1¾" hole saw bit)
- Mounting Depth: 1.75" (minimum) -2.45" (maximum)
- Frame Diameter: 2.287"
- Trim Ring:
- Diameter: 2.237"
- Height: 0.205"
- Mounting Collar:
- Diameter: 2.24"
- Height: 0.195"
Terminals: The tweeters have spring post wire terminals and will accommodate up to 16-gauge wire.
Crossover: The included 3.3 microfarad capacitors are 1st order high pass crossovers (6 dB/octave) and must be used if no other crossovers are added; the crossover point is approximately 12 kHz. One capacitor is wired in-line with the positive input of each speaker.
