About the Memphis Audio MS69V

Product highlights:
- 2-way car speakers (pair) with adjustable design
- can be used as coaxial speakers or as a component speaker system
- requires MSCKIT (not included) for mounting tweeter separately in component setup
- 6"x9" carbon-fiber woofer with rubber surround
- aluminum dome tweeter — swivels in either application
- external crossover
- M-Clip crossover mounting solution for securing crossover to back of speaker basket or to car door
- handles up to 75 watts RMS (150 watts peak power)
- frequency range: 55-20,000 Hz
- sensitivity: 91 dB
- top-mount depth: 3.048"

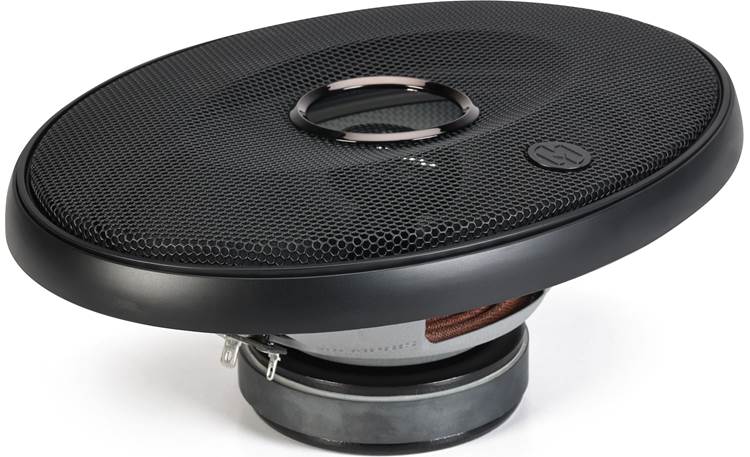

- grilles included
- warranty: 2 years
- MFR # MS69V
- Item # 953MS69V
- California customers: Please click here for your Proposition 65 WARNING.

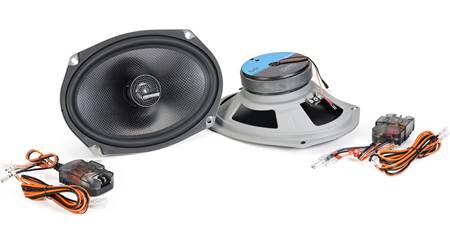

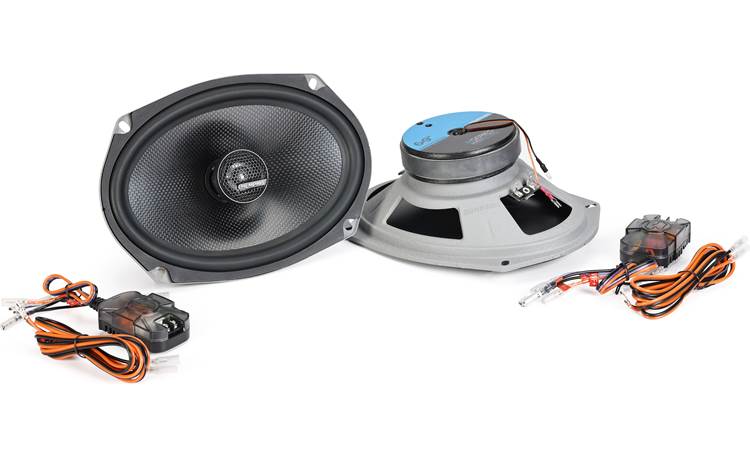

What's in the box:
Memphis Audio MS69V owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Woofers
- 2 Tweeters (coaxially mounted to the woofers)
- 2 Woofer grilles
- 2 Crossovers

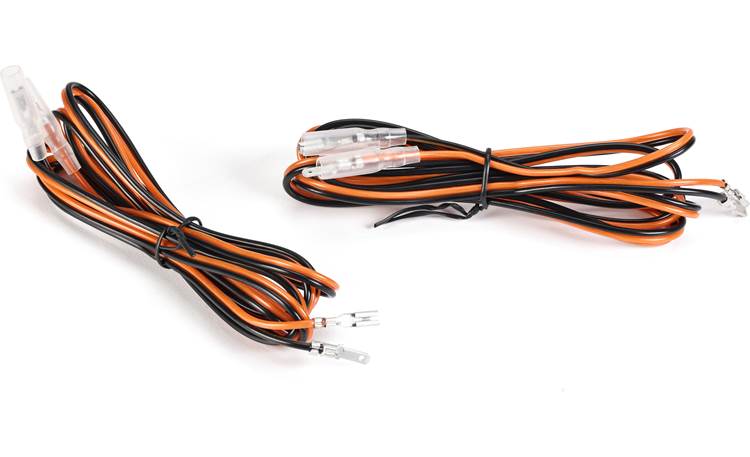

- Two 5' Tweeter extension wires (quick slides on both ends)
- 2 M-Clip crossover mounting brackets
- Eight M4x6mm Machine screws
- Eight 1" Screws
- 8 Speed clips
- Two 4" Zip ties
- Installation instructions
- Template
More details on the Memphis Audio MS69V

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Carbon Fiber | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black, Steel mesh, Plastic frame | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 91 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 55 - 20k Hz | |
Maximum RMS Wattage | 75 | |
Peak Power Handling (Watts) | 150 | |
Top-mount Depth (Inches) | 3 1/16 | |
Bottom-mount Depth (Inches) | 3 1/4 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.625 | |
Frame Width | 6.425 | |
Frame Length | 9.227 |
Product Research
Features

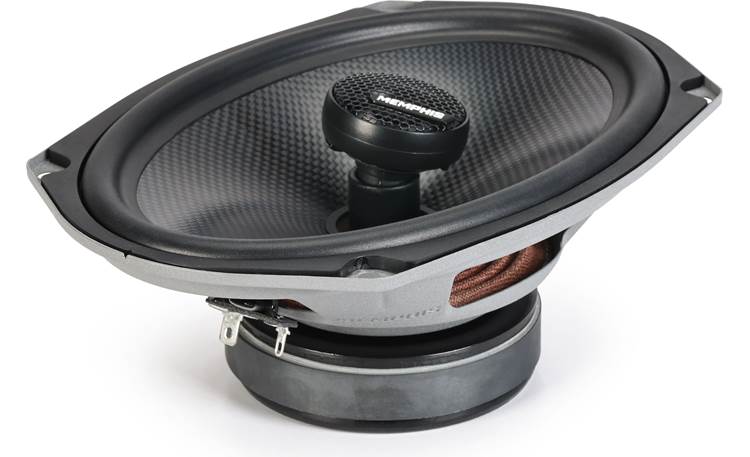

Tweeters: The tweeters are coaxially mounted to the woofers at the factory. The tweeters swivel, so they can be angled for optimum imaging. Additionally, the tweeters can be removed from the woofers and installed separately using Memphis Audio's tweeter mounting kit (item number 953MSCKIT, sold separately). The mounting kit includes housings to flush mount or surface mount the tweeters. The woofers' mounting height is reduced to 0.25" when the tweeters are removed.
Tweeter Mounting Dimensions:
Flush Mount | Surface Mount | Angled Surface Mount | |
---|---|---|---|
Mounting Height | 0.15" | 1.2" | 1.78" |
Mounting Depth | 1.06" | screw depth | screw depth |
Frame Diameter | 2.36" | 2.07" | N/A |
Cutout Diameter | 2.06" | N/A | N/A |
Frame Width | N/A | N/A | 2.06" |
Frame Depth | N/A | N/A | 2.04" |

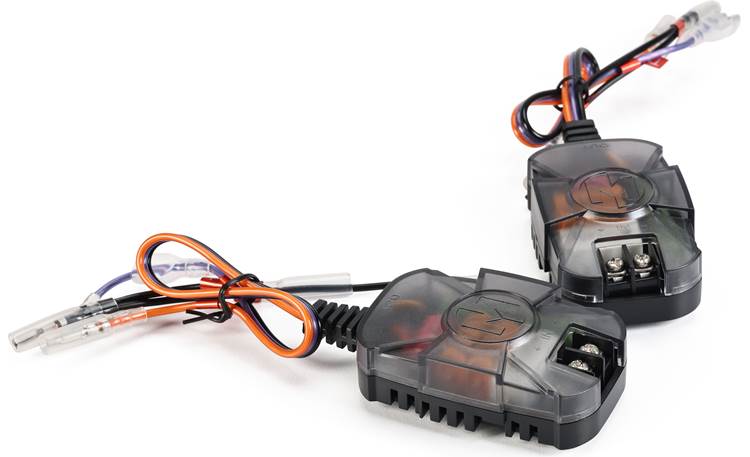

Crossover: The crossovers are separate components with the output wires attached. The tweeter output level can be changed from flat (0 dB) to -3 dB by moving a jumper pin inside each crossover. The inputs are screw terminals that will accept bare wire or spade connectors up to 0.25" wide. The output wires have quick slides attached that easily connect to the terminals on the woofers and on the wire from the tweeters. Extension wires are included for mounting the tweeters separately. The crossover dimensions are:
- Width: 1¾"
- Height: 1⅛"
- Length: 2¾" (3⅝" including wire)
M-Clip: The crossovers can be mounted to the back of the speaker magnets, or elsewhere, using the M-Clip brackets. When mounted to the speakers, the crossover adds approximately ⅜" to the depth and 1⅜" to the width of one side of the magnet.
The Memphis Audio MS69V replaces these items:

Memphis Audio MS69
- can be used as coaxial speakers or as a component speaker system
- 6"x9" carbon fiber woofer with rubber surround
- aluminum alloy tweeter
