About the Memphis Audio MSA1

Product highlights:
- 1" aluminum dome tweeters (pair)
- flush- and surface-mount hardware included
- external crossovers included
- handles up to 75 watts RMS (100 watts peak power)
- frequency response: 2,000-20,000 Hz
- sensitivity: 88 dB
- top-mount depth: 11/16"
- warranty: 1 year
- MFR # MSA1
- Item # 953MSA1
- California customers: Please click here for your Proposition 65 WARNING.

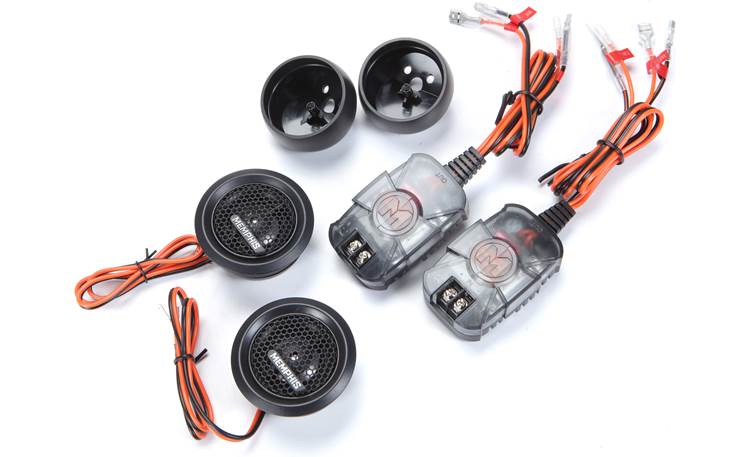

What's in the box:
Memphis Audio MSA1 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Tweeters (18" Wire terminated with quick-slide connectors attached)
- 2 Crossovers
- 2 Adhesive backed crossover mounting pads
- 2 Flush mount housings (with tweeters installed)
- 2 Flush mount retaining rings
- 2 Angled surface mount housings
- Four 3/4" Flat-head screws
- Installation instructions
- Template
Featured video:
More details on the Memphis Audio MSA1

Features & specs
General | ||
---|---|---|
Speaker Size | 1 | |
Driver Design | 1-way | |
Woofer Design | --- | |
Woofer Material | --- | |
Woofer Surround | --- | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel mesh, Fixed | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 2000 - 20k Hz | |
Maximum RMS Wattage | 75 | |
Peak Power Handling (Watts) | 150 | |
Top-mount Depth (Inches) | 1 1/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 2 1/16 | |
Mounting Height (Inches) | 0.175 | |
Frame Width | 2.35 | |
Frame Length | 2.35 |
Product Research
Features
Mounting: The tweeters offer multiple mounting options; choose flush mount, surface mount, or angled surface mount. The tweeters are shipped in the flush mount housings and the angled surface mount housings are included. The back of the flush mount housing and the top of the angled surface mount housing combine to create the (non-angled) surface mount housing. Once installed in any of the housings, the tweeter will pivot slightly to optimize imaging.
Tweeter Dimensions:
Flush Mount | Surface Mount | Angled Surface Mount | |
---|---|---|---|
Mounting Height | 0.175" | 1.22" | 1.76" |
Mounting Depth | 1.05" | screw depth | screw depth |
Frame Diameter | 2.35" | 2.06" | N/A |
Cutout Diameter | 2.05" | N/A | N/A |
Frame Width | N/A | N/A | 2.06" |
Frame Depth | N/A | N/A | 2.03" |
Crossover: The 12 dB/octave crossovers' inputs are screw terminals that will accept bare wire or spade connectors up to ¼" wide. The 16" tweeter output wire (labeled TW+/TW-) is terminated with quick slides to easily connect to the quick slides on the wire attached to the tweeters. Each crossover also has a full range output (labeled WF+/WF-), 16" wires terminated with quick slides (0.25" positive/0.11" negative), not crossed over. The tweeter output level can be changed from flat to -3 dB by moving a jumper pin inside each crossover.
Crossover Dimensions:
- Width: 1¾"
- Height: 1"
- Length: 2¾" (3¾" including wiring)
The Memphis Audio MSA1 replaces these items:
- flush- and surface-mount hardware included
- external crossovers included
- handles up to 50 watts RMS (100 watts peak power)
