About the Memphis Audio MXHD14LIDKIT
Product highlights:
- 6"x9" full-range motorcycle speakers with RGB LED lights
- designed to fit 2014-up Harley-Davidson Road Glide and Street Glide bag lid locations
- installation hardware and cutting templates included
- painted stamped steel grilles with ASA plastic frames
- weather- and water-resistant
- IPX6-rated sealed assembly
- backlit RGB LED polypropylene cone
- bridge design holds two high-output tweeters
- handles up to 125 watts RMS (250 watts peak)
- frequency response: 55 Hz to 22 kHz
- sensitivity: 93 dB
- impedance: 4 ohms
- quick disconnects for easy bag removal
- warranty: 1 year
- MFR # MXHD14LIDKIT
- Item # 953MXHD14L
- California customers: Please click here for your Proposition 65 WARNING.

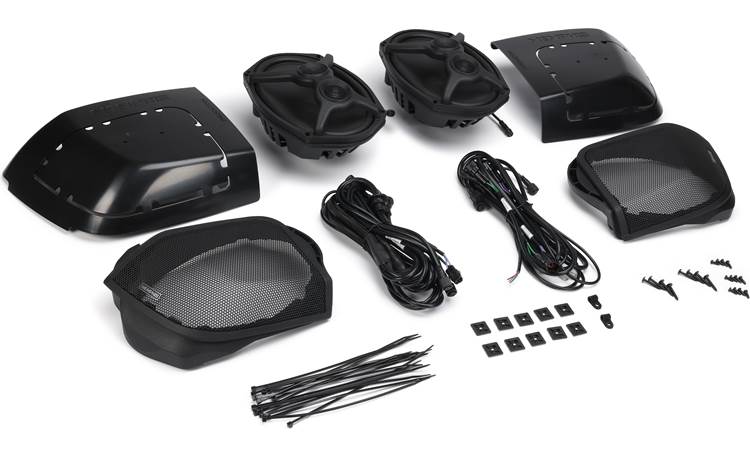

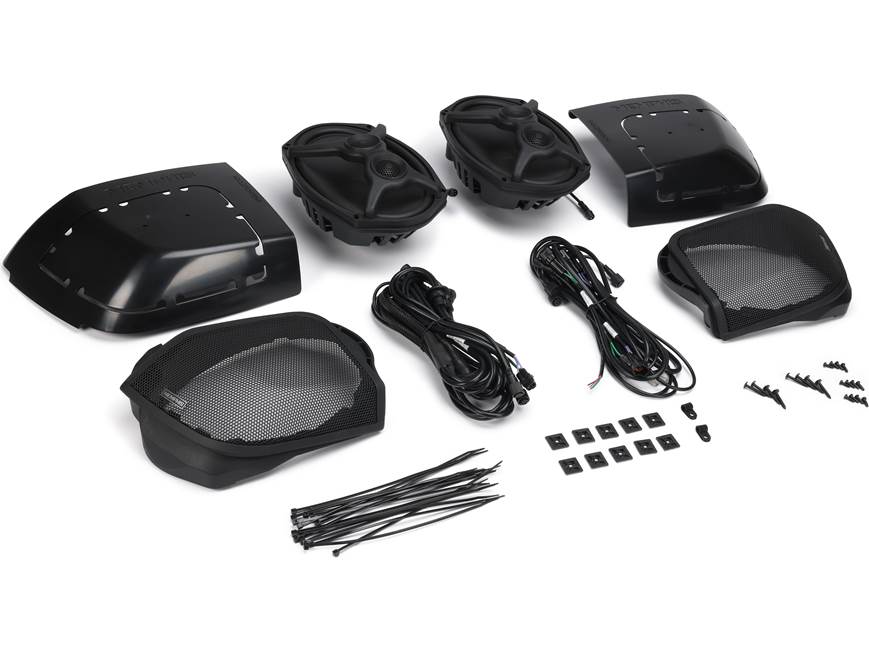

What's in the box:
Memphis Audio MXHD14LIDKIT owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 6x9" speakers with attached 8" 4-pin RGB harness
- 2 Speaker protectors (installed)
- 2 Cutout templates
- 2 Speaker brackets
- 2 Grilles
- 7.5' Rear speaker & RGB harness
- Four 28" speaker extension harnesses
- Four 22" RGB extension harnesses
- Two 9" RGB hardwire harnesses (4-pin connector on one end / bare-ended wires on other end)
- Sixteen 7.5" wire ties
- 10 Wire tie holders with adhesive backing
- 2 Wire clamps
- Eight 1" screws
- Twelve 3/8" screws
- QR code for instructional video
More details on the Memphis Audio MXHD14LIDKIT
Product Research
Features

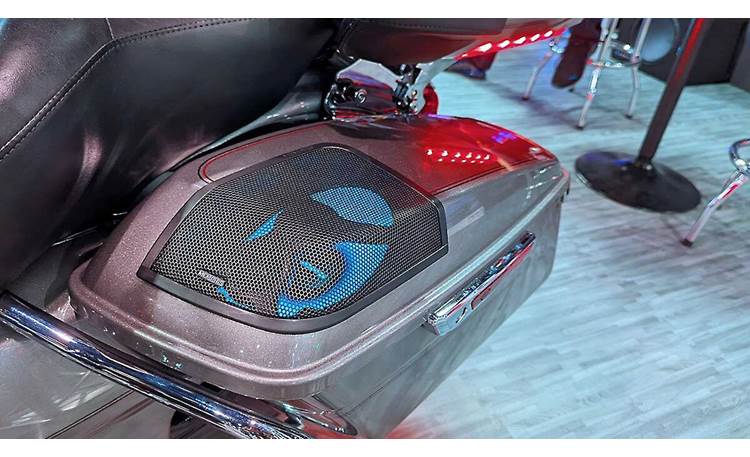

Overview: The Memphis Audio MXHD14LIDKIT is a complete 6x9" bag lid speaker solution designed for select 2014-up Harley-Davidson motorcycles equipped with hard-shell saddle bags. The system includes a pair of outdoor-ready 6x9" RGB backlit speakers; cutout template and mounting brackets; stylish mesh grilles; and pre-measured and configured wiring harnesses for both audio and RGB lighting connections. The MXHD14LIDKIT wiring is designed to connect directly to Memphis Audio HD PRO sound systems including the MXAHDPRO4 and MXAHDPRO2 (both sold separately).
Notes:
- Installation of the MXHD14LIDKIT will require cutting and drilling into your hard-shell saddle bags.
- The included pre-configured wiring is designed to connect directly to a Memphis Audio MXAHDPRO4 or MXAHDPRO2 Harley-Davidson audio system. If interfacing the bag lid speaker kit with another type of audio system, the speaker and RGB wiring will need to be spliced in.
Compatibility: The Memphis Audio MXHD14LIDKIT is designed for select 2014-up Harley-Davidson motorcycles equipped with hard-shell saddle bags.
| Year | Model | Chassis | Fairing |
|---|---|---|---|
| 2015-2020 | CVO Road Glide Ultra | FLTRUSE | Shark Nose |
| 2018-2020 | CVO Street Glide (6-speaker) | FLHXSE | Bat Wing |
| 2014-up | CVO Limited | FLHTKSE | Bat Wing |
| 2014 | CVO Road King | FLHRSE | - |
| 2016-2020 | CVO Ultra Limited | FLHTKSE | Bat Wing |
| 2014-2020 | CVO Ultra Limited Electra Glide | FLHTKSE | Bat Wing |
| 2014-up | Road King | FLHR | - |
| 2017-up | Road King | FLHRXS | - |
| 2014-2020 | Electra Glide Ultra Classic | FLHTCU | Bat Wing |
| 2014-2020 | Electra Glide Ultra Limited | FLHTCU | Bat Wing |
| 2021-up | Ultra Limited | FLHTK | Bat Wing |
| 2021-up | Ultra Limited Shrine Edition | FLHTK | Bat Wing |
| 2017-2020 | Electra Glide Ultra Limited Low | FLHTKL | Bat Wing |
| 2015-up | Road Glide | FLTRX | Shark Nose |
| 2021-2022 | Road Glide Limited | FLTRK | Shark Nose |
| 2015-up | Road Glide Special | FLTRXS | Shark Nose |
| 2022-up | Road Glide ST | FLTRXST | Shark Nose |
| 2015-2020 | Road Glide Ultra | FLTRU | Shark Nose |
| 2014-up | Street Glide | FLHX | Bat Wing |
| 2014-up | Street Glide Special | FLHXS | Bat Wing |
| 2022-up | Street Glide ST | FLHXST | Bat Wing |
- Compatibility Notes:
- The Memphis Audio Saddlebag Lid Kit is designed for installation on ABS plastic lids and is not compatible with fiberglass bag lids.
- The Saddlebag Lid Kit is not compatible with Harley-Davidson Power Lock Touring Luggage.
Weatherproof: The MXHD14LIDKIT carries an IPX6 waterproof rating when fully assembled and sealed.

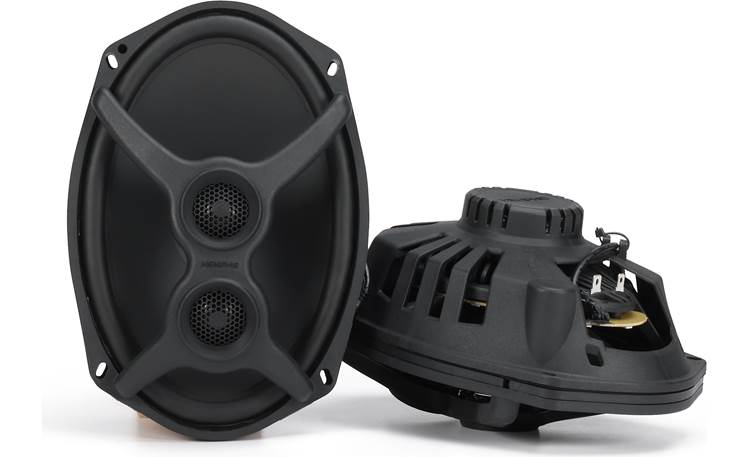

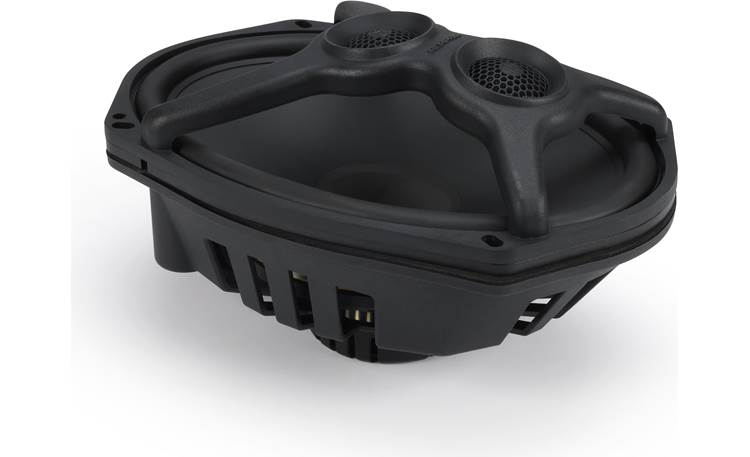

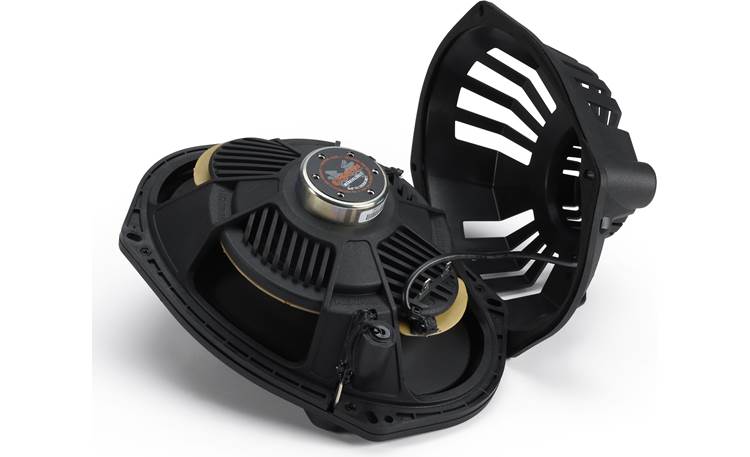

6x9" Speakers: The included Memphis Audio 6x9" speakers feature a polypropylene woofer cone with a rubber surround and an all-weather ASA plastic frame for UV protection. These 2-way speakers feature dual tweeters mounted in a bridge design, providing clear loud sound for both driver and passenger.

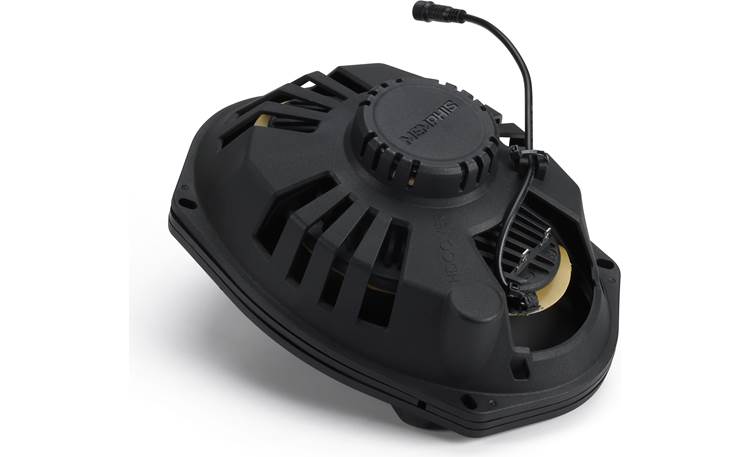

RGB LED Backlighting: The MXHD14LIDKIT 6x9" speakers feature a semi-translucent cone with RGB LED backlighting that can light up the speaker cone various colors. 4-pin RGB cabling is included for connecting and controlling the LED backlighting from your Memphis Audio MXAHDPRO4 or MXAHDPRO2 audio system. If not interfacing a Memphis Audio HD PRO system, an RGB LED hardwire harness is included that lets you connect directly to a switched 12V source for a single static LED color. For multi-color use, an RGB LED controller will be required and is sold separately.
