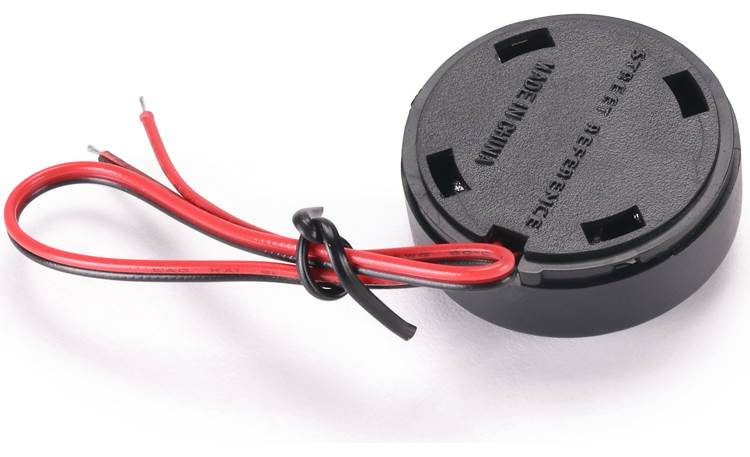

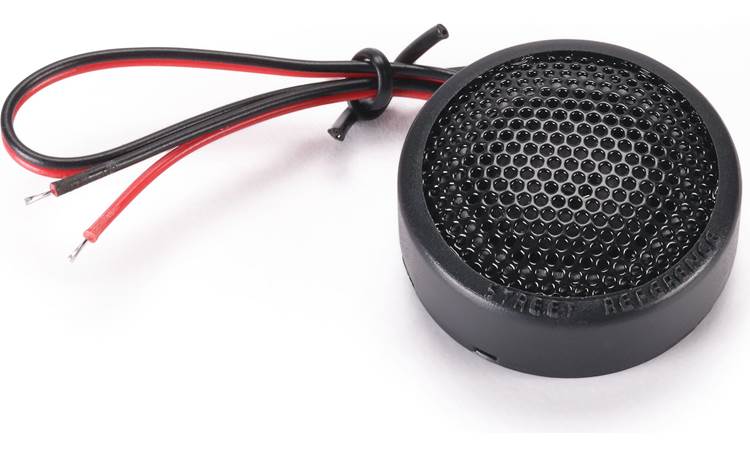

About the Memphis Audio SRX1V

Product highlights:
- 1" Mylar dome tweeters (pair)
- surface-mount hardware included
- inline crossovers
- handles up to 20 watts RMS (40 watts peak power)
- frequency response: 5,000-20,000 Hz
- sensitivity: 97 dB
- warranty: 1 year
- MFR # SRX1V
- Item # 953SRX1V
- California customers: Please click here for your Proposition 65 WARNING.

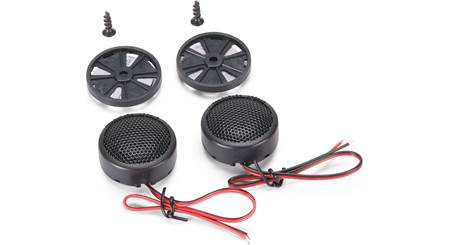

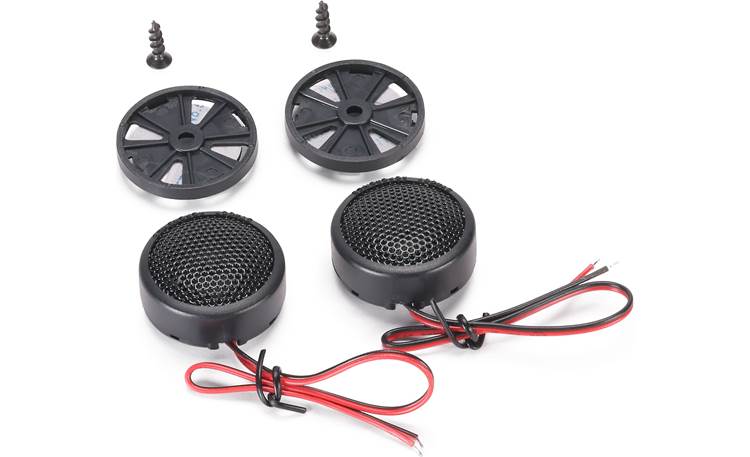

What's in the box:
- Two tweeters (with 7" speaker wire attached)
- 2 Adhesive backed foam mounting pads
- 2 Surface mount brackets
- Two 5/8" Flat-head screws
More details on the Memphis Audio SRX1V

Features & specs
General | ||
---|---|---|
Speaker Size | 1 | |
Driver Design | 1-way | |
Woofer Design | --- | |
Woofer Material | --- | |
Woofer Surround | --- | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 1" Dome | |
Tweeter Material | Mylar | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel mesh | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 97 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 5000 - 20k Hz | |
Maximum RMS Wattage | 20 | |
Peak Power Handling (Watts) | 40 | |
Top-mount Depth (Inches) | N/A | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | --- | |
Frame Width | --- | |
Frame Length | --- |
Product Research
Features
Mounting: The tweeters are designed to be surface mounted. Surface mount brackets are included, along with both screws and adhesive pads for mounting the brackets.
Crossover: The crossovers are integrated into the tweeter housings. The end of the attached 7" wire is tinned bare wire; there are no terminals.
Surface Mount Dimensions:
- Height: 0.835"
- Depth: zero (0.5" screw depth)
- Frame Diameter: 1.455"
- Cutout Diameter: N/A
The Memphis Audio SRX1V replaces these items:
- surface-mount hardware included
- inline crossovers
- handles up to 20 watts RMS (120 watts peak power)
