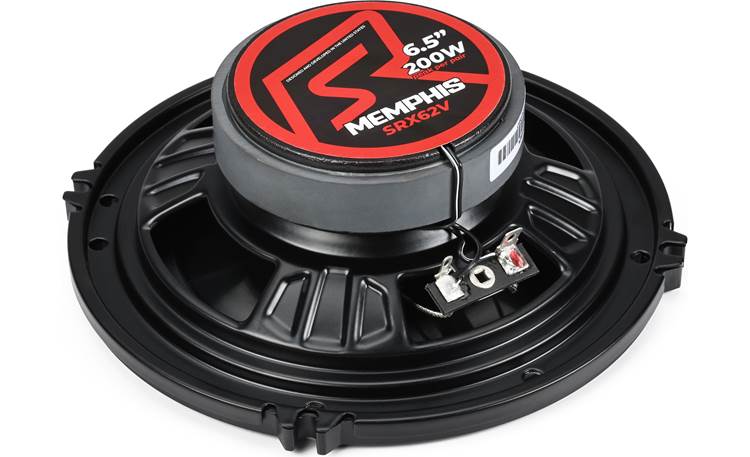

About the Memphis Audio SRX62V

Product highlights:

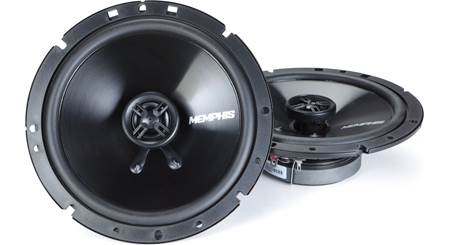

- 2-way car speakers (pair)
- 6-1/2" polypropylene cone with rubber surround
- PEI tweeter
- handles up to 50 watts RMS (100 watts peak power)
- frequency range: 40-20,000 Hz
- sensitivity: 90 dB
- top-mount depth: 1.76"
- grilles not included (sold separately)
- warranty: 1 year
- MFR # SRX62V
- Item # 953SRX62V
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Memphis Audio SRX62V owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers

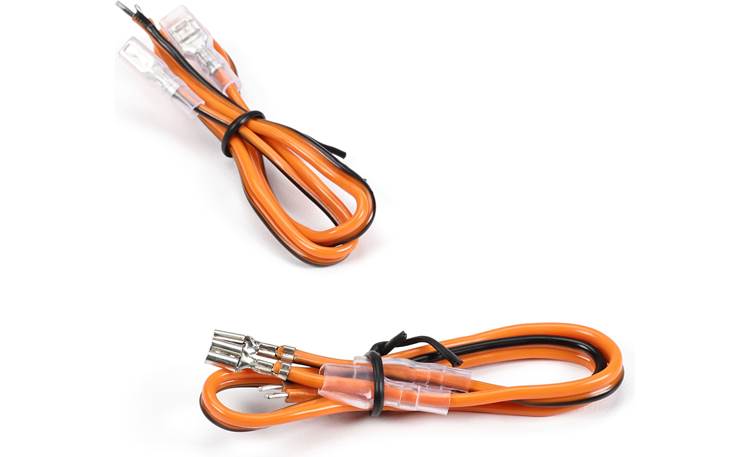

- Two 12" Speaker leads (quick slides on one end and tinned bare wire on the other)

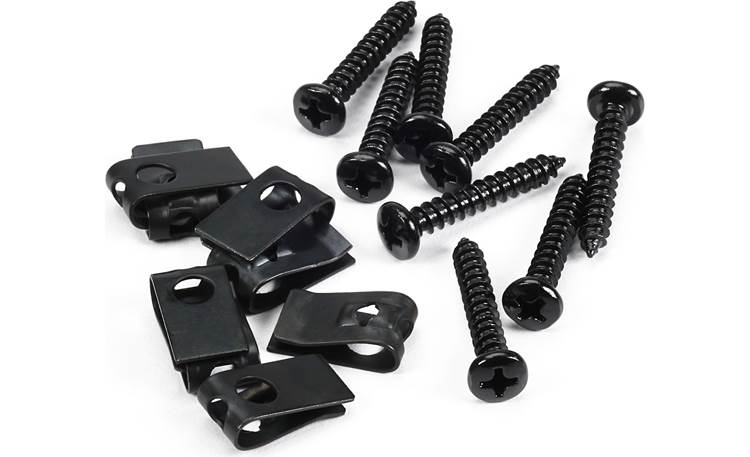

- Eight 1" Screws
- 8 Speed clips
- Template
- Warranty information
- Specifications printed on box
More details on the Memphis Audio SRX62V

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | PEI | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 40 - 20k Hz | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 100 | |

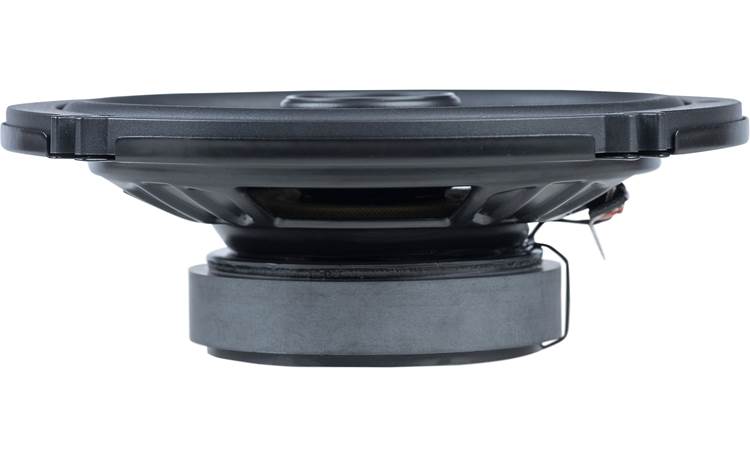

Top-mount Depth (Inches) | 1 13/16 | |
Bottom-mount Depth (Inches) | 2 1/8 | |
Cutout Diameter or Length (inches) | 4 7/8 | |
Mounting Height (Inches) | 0.402 | |
Frame Width | 6.242 | |
Frame Length | 6.242 |
Product Research
Features
Mounting: The speaker baskets have multiple mounting holes and will easily fit standard 3-hole 6½ applications and Ford's 4-hole 6½ applications. They also have mounting ears to fit standard 4-hole 6¾ applications, but using a speaker baffle is recommended to seal the inner ring of screw holes. Please enter your vehicle information to confirm fit.
The Memphis Audio SRX62V replaces these items:
- 6-1/2" treated paper woofer with foam surround
- Mylar tweeter
- handles up to 30 watts RMS (60 watts peak power)
