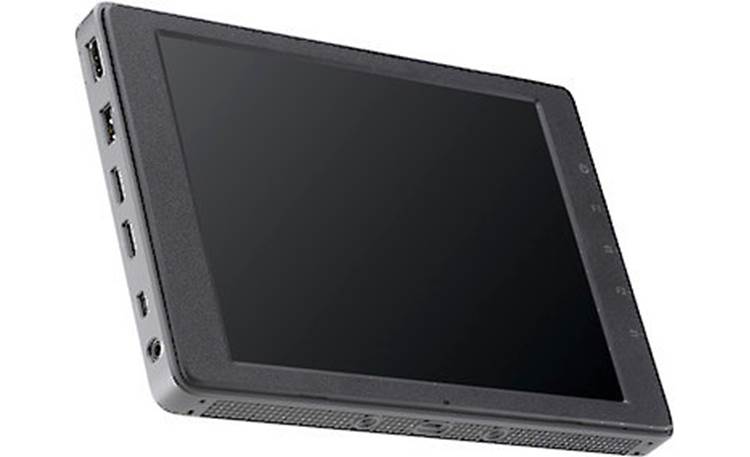

About the DJI CrystalSky Ultra Brightness Monitor
A large, very bright screen for ultimate visibility
A large, very bright screen for ultimate visibility
A sunny day is perfect for flying your DJI drone, except that glare on the monitor screen can make it difficult to see where you're going. DJI's CrystalSky Ultra Brightness monitor has you covered — it's twice as bright as its cousin, the CrystalSky High Brightness monitor. Talk about easy on the eyes.
Dual microSD card slots let you record or back up your aerial footage. The optional CrystalSky mounting bracket lets you make a solid connection to your favorite DJI remote control.
- 7-7/8" ultra-high-brightness monitor screen
- resolution: 2048 x 1536
- twice as bright as the DJI CrystalSky High Brightness monitor
- specially designed Sunlight Readability Enhancement image processing
- built-in dual-band Wi-Fi®
- compatible with DJI GO and DJI GO 4 piloting apps
- two intelligent batteries and charging hub included
Connections and Warranty:
What's in the box:
- CrystalSky monitor
- 2 Rechargeable batteries
- Charging hub
- User Guide
- Safety Guidelines
Customer reviews for DJI CrystalSky Ultra Brightness Monitor
Thanks for submitting your review
More details on the DJI CrystalSky Ultra Brightness Monitor
DJI Aerial System Compatibility: The CrystalSky CS785U monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series, and Osmo series (except the Osmo Mobile) over WiFi or via a remote controller USB port, depending on your specific product. Also, CrystalSky CS785U easily attaches to the Cendence remote controller without an additional mounting bracket.
Note: A proprietary mounting bracket (sold separately) is required when attaching a CrystalSky CS785U monitor to Inspire series, Phantom 4 series, Phantom 3 Professional, Phantom 3 Advanced, or Matrice series remote controllers. A proprietary mounting bracket (sold separately) is also required when attaching a CrystalSky CS785U monitor to Mavic Pro, Spark remote controllers.
Ultra Resolution & Brightness: Created for outdoor aerial imaging, the CrystalSky CS785U monitor features an ultra-bright 7.85" (2048x1536) screen that is clearly visible in sunlight. A maximum 2000 cd/m² of brightness means the CrystalSky CS785U monitor is more than 4x as bright as typical mobile devices. On-screen details are clear and sharp, and colors are vibrant, giving the quality needed to fine tune image composition. A dedicated Sunlight Readability Enhancement mode is especially designed for processing the image in real-time to ensure more comfortable viewing under bright light.
Smooth Video Display: The CrystalSky CS785U monitor uses optimized video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, video decoding in other smart devices is less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. The CrystalSky CS785U monitor's optimized decoder provides smooth, real-time video with minimal latency (180ms compared to 200ms found in typical mobile devices).
Customized System w/ Embedded DJI GO App: The CrystalSky CS785U monitor s designed from the ground up to work seamlessly with the DJI GO/DJI GO 4 app, giving camera operators total control. A newly designed system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky CS785U monitor is able to offer optimum performance at all times. Its embedded DJI GO app provides full access to all DJI GO features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of WiFi reach.
Note: The embedded app supports DJI GO, DJI GO4, and DJI Pilot.
Dual microSD Card Slots: Equipped with dual microSD Card slots, the CrystalSky CS785U monitor's storage can be extended, or footage recorded on a microSD Card can be played back directly on the monitor. It can also be used for footage backups. Using editors built-in DJI GO, high-quality edits can be made quickly and instantly shared to social media. The CrystalSky CS785U monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30 fps and 60 fps respectively. These videos can also be output through its HDMI port.
HDMI/USB/Network Connectivity: The CrystalSky CS785U monitor's HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual-band WiFi (802.11a/b/g/n; 2.4GHz/5GHz) means it can connect to WiFi networks and WiFi hotspots from mobile devices; and it is also compatible with 4G dongles and USB storage through its USB-A port.
- When connected to the internet, the CrystalSky CS785U monitor gets easy access to system upgrades, live-streaming, photo or video sharing, data synchronization and more. File sizes are optimized as much as possible to minimize mobile data demands.
- Onboard microUSB and USB-C ports make it convenient to connect the CrystalSky CS785U monitor with a remote controller or other devices
Rechargeable Battery: The CrystalSky CS785U is equipped with a built-in 980mAh/3.7V rechargeable battery and comes with a 4920mAh/7.6V secondary external battery that gives the monitor a longer operating time than comparable mobile devices. It supports quick charge, and controls its discharge rate well even in low temperatures. It can achieve a maximum operation time of 4-5 hours. The CrystalSky CS785U monitor does not include a charger; click here to learn more about compatible chargers.
Optimized for Extreme Temperature: Most smart devices are designed to operate in common temperature ranges. The CrystalSky CS785U monitor's external battery has been designed for more extreme temperatures. It is able to operate in as low as -4°F (-20°C) and, with its internal cooling system, functions normally in temperatures as high as 104°F (40°C).
