About the ELAC Vertex Series II IW-VC52-W
Product highlights:
- 1" cloth dome tweeter
- two 5-1/4" aluminum cone woofers
- frequency response: 45-20,000 Hz
- recommended amplifier power: 30-120 watts
- sensitivity: 86 dB
- impedance: 6 ohms
- includes magnetic, paintable grille
- speaker cutout: 16-7/16"W x 6-1/4" H
- overall dimensions: 17-3/4" W x 7-7/16" H
- mounting depth: 3-5/16"
- warranty: 3 years
- MFR # IW-VC52-W
- Item # 970IWVC52W
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
ELAC Vertex Series II IW-VC52-W owner's manual
If you need assistance accessing this owner's manual, please give us a call.- In-wall center-channel speaker
- Grille
- ELAC logo
- Operating Instructions
- Cutout Template
More details on the ELAC Vertex Series II IW-VC52-W
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Single | |
| Tweeter | Soft-Dome | |
| Aimable Tweeter | No | |
| Woofer Composition | Aluminum | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | No | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | No | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | 1 | |
| Midrange Size | N/A | |
| Woofer Size | 5.25 | |
| Speaker Shape | Rectangle | |
| Cutout Width | 16.5 | |
| Cutout Height | 6.25 | |
| Mounting Depth | 3.3125 | |
| Power Range (Watts) | 30-120 | |
| Sensitivity | 86 dB | |
| Impedance (Ohms) | 6 | |
| Frequency Response | 45-20kHz | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
Product Research
Features

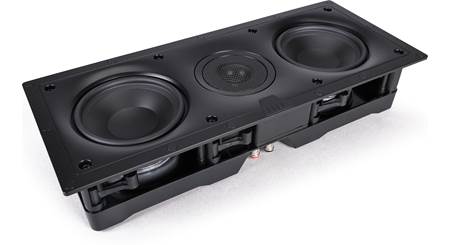

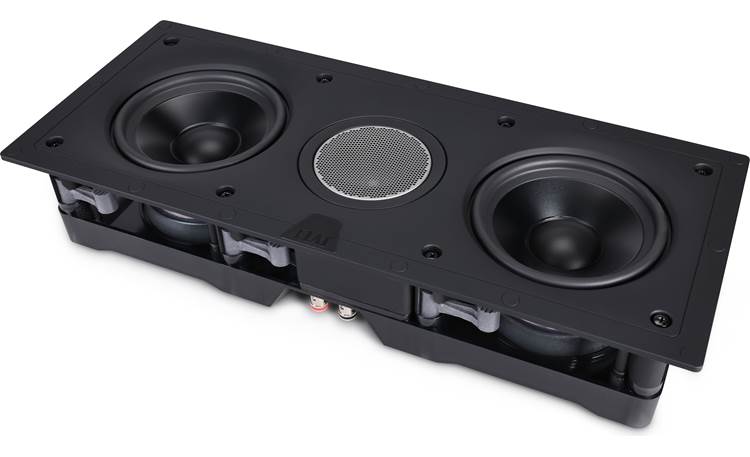

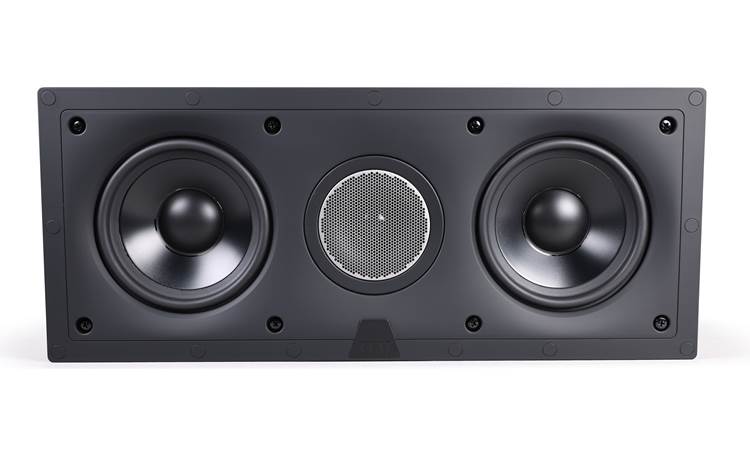

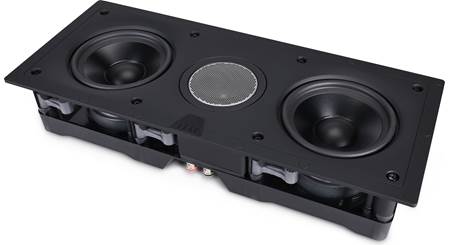

2-Way Driver Design: The Elac Vertex II Series IW-VC62-W in-wall center speaker employs a 2-way driver design featuring a 1" cloth soft-dome tweeter and two 5.25" aluminum cone woofers for well-dispersed sound.
- Cloth Soft-Dome Tweeter: The 1" custom cloth soft-dome tweeter employs a unique integrated grill design for enhanced dispersion of its smooth, extended high frequencies.
- Dual Aluminum Cone Woofers: The two 5.25" custom designed woofers use an aluminum cone due to its rigid, light weight characteristics - resulting in dynamic, accurate frequency response.
Multi-Element Crossover: A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the the tweeter and woofer drivers.

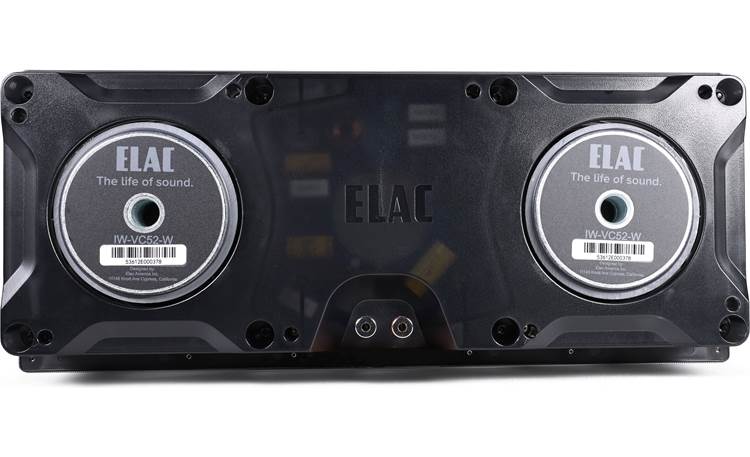

Spring Post Terminals: The Elac Vertex II Series IW-VC52-W is outfitted with a set of spring post terminals that will accept bare wire (up to 14AWG), pin-connectors, and banana plugs (single or dual). For shorter distances up to 25', 16-gauge speaker wire will be sufficient. For longer distances, 14-gauge speaker wire is recommended.

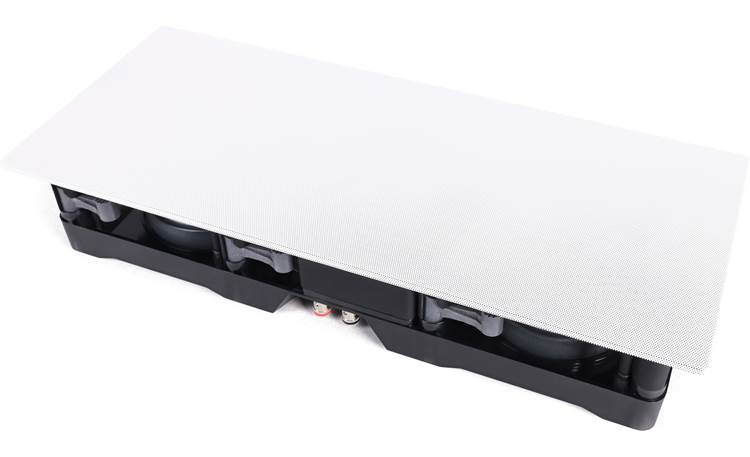

Slim-Profile Magnetic Grille: The included slim-profile magnetic grille allows for the speaker to virtually disappear in the room. The metal mesh grille comes in a white finish, but can be painted to match your wall. The slim-profile grille protrudes from the wall approximately 0.1875".

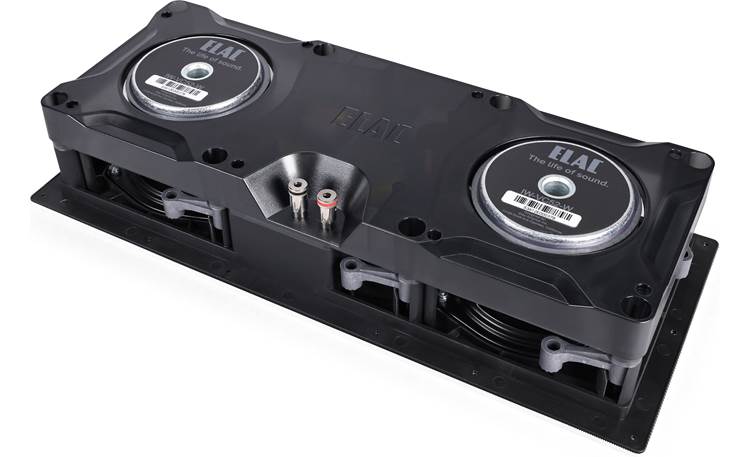

Mounting Options: The Elac Vertex II Series IW-VC52-W requires a rectanuglar cutout in the wall that measures 16.5" (w) x 6.25" (h) x 3.3125" (d). Multiple "dog-leg" clamps secure the speaker in the cutout of your wall. Make sure to leave approximately 1.375" of clearance around the interior of the cutout to accommodate the "dog-leg" clamps. The "dog-leg" clamps are compatible with 0.125" to 0.875" thick walls. The in-wall center channe speaker should be mounted as close to ear level as possible and centered above or below your video screen.
