About the ELAC Muro MSB41L
Outfit your front soundstage with ELAC
Outfit your front soundstage with ELAC
The MSB41L delivers serious ELAC sound quality but with a more streamlined look than you'll get from individual boxy left-, center-, and right-channel speakers. Underneath the removable magnetic grille, you'll find three separate driver arrays, each with 4" woofer cones and 1" dome tweeters. Four 4" ABRs (Auxiliary Bass Radiators) supplement the mid/bass drivers to provide additional bass punch and power handling.
Designed with larger screens in mind
The MSB41L is big — just over 5 feet wide, in fact, so it's a great match for screens that are 65 inches and larger. As the TV or movie action pans from side to side, the sound will follow it smoothly. A wall mount is included to keep installation super-neat.
Make sure you have what you need
Most sound bars that we offer are completely self-contained, self-powered speaker systems. But the MSB41L needs a separate home theater receiver for power and TV connections. In addition to a receiver, you might consider getting a powered subwoofer to fill out the low end, especially in larger rooms.
- includes separate left, center, and right channels in a single sound bar speaker design
- non-powered — connects to your home theater receiver's front three channels
- handles up to 80 watts per channel
- designed for TV screen sizes 65" and larger
- frequency response 70-35,000 Hz
- sensitivity: 86 dB
- impedance: 6 ohms
- three 1" soft dome tweeters for detailed sound and extended high-frequency response (one per channel)
- four 4" aluminum mid/bass woofers
- four Auxiliary Bass Radiators
- 3 sets of metal push binding post speaker terminals (one set per channel)
- satin white cabinet finish with grey magnetic grille
- wall mount included
- 60-1/2"W x 5-15/16"H x 3-7/16"D
- warranty: 3 years
- MFR # 735DN8BK
What's in the box:
- 3-Channel passive soundbar loudspeaker
- Speaker Bracket
- Wall Bracket
- 18 Machine screws
- 10 Wood-screws
- 10 Washers
- 10 Wall anchors
- ELAC decal
- Wall-Mount Template
- Operating Instructions
Customer reviews for ELAC Muro MSB41L
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the ELAC Muro MSB41L
Features & specs
|Amplification||Separate Receiver Required|
|Number Of Channels||3.0|
|Optical Digital Inputs||None|
|Coaxial Digital Inputs||None|
|HDMI ARC Input||No|
|HDMI eARC Input||No|
|3.5mm Stereo Analog Inputs||None|
|RCA Stereo Analog Inputs||None|
|USB Type-A Input||No|
|Tweeter||1" Soft-Dome (3)|
|Woofer||4" Metal Cone (4)|
|System Frequency Response||70-35k Hz|
|Sound Bar RMS Power||0|
|Subwoofer RMS Power||N/A|
|HDMI Video Pass-through Resolution||N|
|HDR Video Compatible||No|
|Control by App||N/A|
|Remote IR Passthrough||No|
|Learns TV Remote||No|
|Bluetooth Audio Playback||No|
|Bluetooth Transmitter Mode||No|
|Online Music Sources||None|
|Files on Your Network||No|
|Built-in Wi-Fi Version||None|
|Mounting Bracket Included||Yes|
|Sound Bar Size (inches)||6H x 60-1/2W x 3-1/2D|
|Sound Bar Weight||28.66 lbs|
|Subwoofer Size (inches)||No Subwoofer|
|Speaker Parts Warranty||3 Years|
|Speaker Labor Warranty||3 Years|
|Amplifier Parts Warranty||N/A|
|Amplifier Labor Warranty||N/A|
3-Channel Passive Soundbar: Elac's Muro Series MSB41L passive soundbar delivers 3 channels of your home theater audio experience - including front left, front right, and center - all in one speaker enclosure. It's dedicated center speaker ensure that dialog from your favorite TV shows and movies is always center stage, while the left and right channels deliver the performance and impact of traditional bookshelf speakers. By incorporating the center and front channels inside one passive soundbar speaker, your home theater speaker system's footprint is greatly reduced.
Note: The MSB41L is a passive soundbar loudspeaker and is not equipped with a built-in amplifier. You will need a separate AV receiver to power the Muro Series MSB41L.
Silk Dome Tweeter w/ Waveguide: The Elac MSB41L passive soundbar speaker features a total of three 1" silk soft-dome tweeters; one for each channel of the soundbar. The waveguide surrounding each 1" soft-dome tweeter features a custom, deep spheroid profile to improve directivity control and efficiency.
Custom-Designed Aluminum Woofers: The Muro Series MSB41L houses a total of four 4" aluminum cone woofers. The front right and left channels each have one 4" aluminum cone woofer, while the center channel has two 4" aluminum cone woofers. Aluminum cones offers a superior strength-to-weight ratio and improved damping characteristics over conventional paper or plastic drivers. This added strength means arriving at designs that achieve a broader bandwidth with smoother response.
Passive Radiator Design: In order to increase and deliver more bass response from a slender soundbar speaker enclosure, the Elac MSB41L employs a passive radiator design with a total of four 4" aluminum cone auxiliary bass radiators. The front right and left channels each have one 4" aluminum auxiliary bass radiator, while the center channel has two 4" aluminum auxiliary bassradiators. The MSB41L can produce low frequencies down to 70Hz.
Multi-Element Crossover: A custom multi-element crossover (2800Hz) with audio-grade components is implemented to ensure smooth transition between the MSB41L passive soundbar's high-frequency and low-frequency drivers.
MDF Enclosure w/ Magnetic Grille: The Muro Series MSB41L passive soundbar utilizes a CARB2 rated MDF enclosure that is rigid and inert to prevent unwanted vibration and coloring of sound. The MDF enclosure is wrapped in a black or white vinyl material with a painted satin black or white front baffle. The included magnetic grille easily attaches to the front of the speaker enclosure.

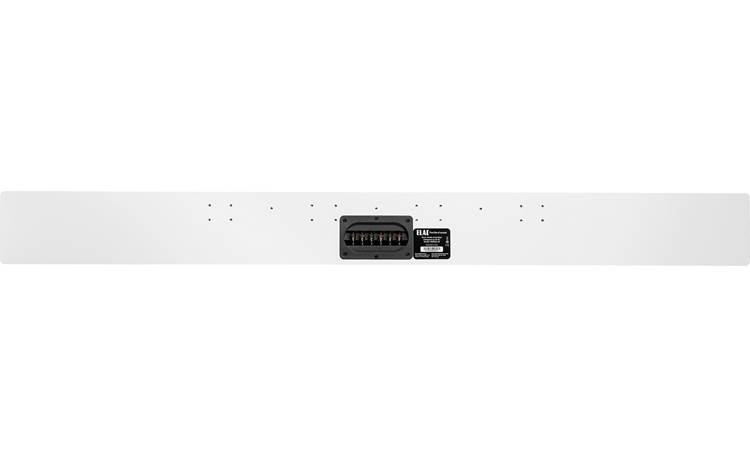

Spring Post Terminals: The Elac Muro Series MSB41L is outfitted with a total of six spring post terminals to connect the passive soundbar speaker to the front left, front right, and center speaker outputs of your AV receiver. Each channel of the passive soundbar had two dedicated spring post terminals (make sure these are hooked up appropriately to your AV receiver). The spring post terminals will accept bare wire (up to 12AWG), pin-connectors, and banana plugs (single or dual).
Wall-Mount Bracket: The Elac MSB41L passive soundbar measures 60.5" (w) x 6.0" (h) x 3.5" (d) and is designed for 65" TVs and larger. The MSB41L includes a two-piece bracket system and mounting template that allow you to mount the speaker on the wall. The soundbar can be mounted above or below your TV. It should be centered with your TV and have a minimum distance of 1" between the soundbar and your television. This is fixed wall-mount bracket, so it does not swivel or tilt. The MSB41L cannot be used with any other wall-mount bracket system.
Note: The MSB41L passive soundbar can also be simply placed on a tabletop. However, due to its 6" of height it will block a portion of the bottom of the screen on many flat-panel TVs.
Muro Series: The Muro Series by Elac offers a variety of ways to create a modern and minimalistic home theater speaker system in your home that sounds immersive and enveloping. The Muro Series consists of two passive soundbar loudspeakers (MSB41S/MSB41L), an on-wall LCR loudspeaker (OW-V41L), an on-wall surround loudspeaker (OW-V41S), and two powered subwoofers (SUB2010/SUB2020). A satin black or white painted finish gives the Muro Series speaker line-up a luxurious look to fit into practically any decor.
