Electro-Voice ELX200-18SP

Features

Overview: The ELX200-18SP is an 18" powered subwoofer for both portable and installed applications. It features a highly efficient Class-D power amplifier that can deliver up to 1200 watts of power with a maximum SPL of 132 dB. The enclosure is lightweight and compact, with two carry handles for portability, and includes an integrated M20 threaded pole-mount plate to use in conjunction with a full-range speaker. The ELX200 includes built-in QuickSmart DSP which allows easy setup via three presets (Live, Music, Club), sub/top system crossover settings, visual monitoring of limiter status, input level meters with control, and master volume control, all of which can be stored and recalled with five user-programmable presets.

QuickSmart DSP: EV's proprietary QuickSmart DSP offers a lot flexibility and ease of setup using either the rear-panel LCD and control dial or the QuickSmart DSP app on a Bluetooth enabled device. DSP options include:

• Mode: Allows selection of one of the three pre-configured presets: Music (default), Live, and Club.
• Low Pass: Contains the low-pass filter cutoff points with options for 80, 100 (default), 120, and 150 Hz. There are an additional ten crossover choices designed for specific models of EV speakers when used in conjunction with the subwoofer.
• LED: This option determines if/when the front panel LED will light. Options are On, Off, and Limit. With this option the LED will light when the built-in limiter activates.
• Display: The Display menu has three settings: Dim - determines if the display will dim after being idle for two minutes, Brightness, and Contrast.
• Store/Recall: These two options allow the subwoofer's settings to be stored and recalled with 5 memory "slots" available.
• Lock: The Lock option keeps the settings from inadvertently being changed.
• Control App: This setting needs to be turned on if using EV's QuickSmart DSP app.
• Reset: This option will restore all of the settings to the default selection.
• Info: Shows product name and current firmware version.
• Exit

QuickSmart Mobile App: EV's QuickSmart app allows you to quickly and wirelessly configure, control, and monitor up to six ELX200 loudspeakers simultaneously as well as receive critical information during a performance via a Bluetooth connection. The controlling device must be Bluetooth enabled to use the QuickSmart app.

Construction: The subwoofer enclosure is made of durable 15 mm plywood that's coated in EV's black "EVCoat" for added weather and scuff resistance, along with an 18 AWG steel, black powder-coated protective grill. The top section houses an M20 threaded pole-mount for use with an additional speaker.

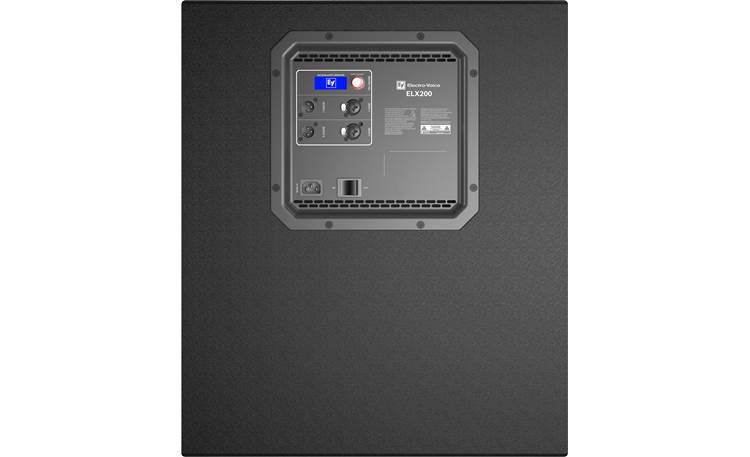

Rear Panel: The ELX200 has two inputs, each having a female combination XLR/1/4" jack, as well as two male XLR output jacks to pass a crossed-over signal out to additional powered speakers. The rear panel also has the LCD for the QuickSmart DSP menu along with a rotary dial that acts as a main volume control or, when pushed, will navigate through the menus. The ON/Off switch and IEC 3-pin power socket are located in this section as well. The ELX200's built-in universal power supply allows the subwoofer to be used around the world without the need for an external converter.

Specifications:

• Power Rating: 1200 W
• Maximum SPL: 132 dB
• Frequency Response:
  • 40 Hz - 145 Hz (@ -10 dB)
  • 47 Hz - 105 Hz (@ -3 dB)
• Low-Pass Frequency: Adjustable - 80 Hz, 100 Hz (default), 120 Hz, and 150 Hz with ten additional speaker-specific options.
• Low Frequency Transducer: EVS-18M 18 inch
• Power Consumption: 100 - 240 V, 50 - 60 Hz, 1.8 A
• Connections:
  • Inputs: 2 XLR/1/4" TRS combo jacks
  • Outputs: 2 XLR
• Enclosure: 15 mm plywood with EVCoat
• Grill: 18 AWG steel with black powder-coat
• Pole-Mount Plate: Integrated M20 threaded socket
• Portability: Two built-in side handles
• Dimensions: Width - 19.875", Height - 24.0", Depth - 24.50"
• Weight: 63.9 lbs.
