Features

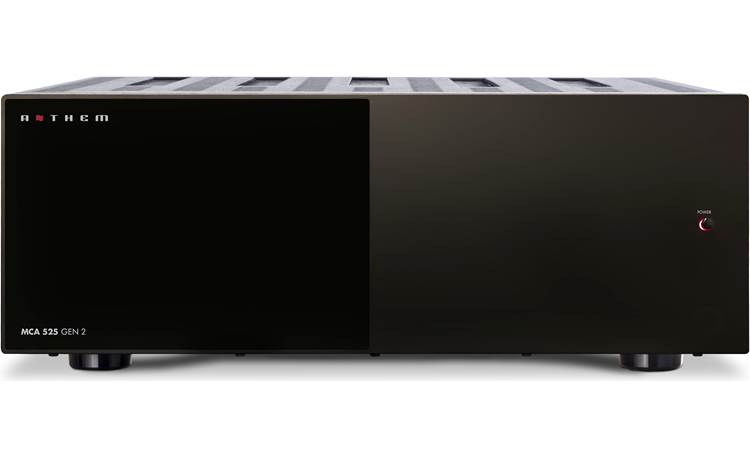

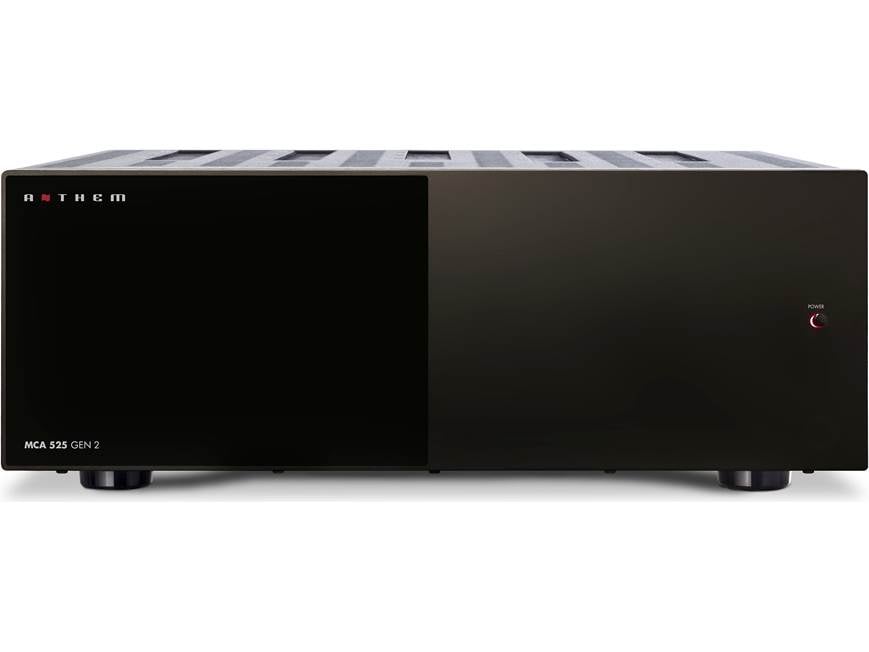

MCA (Gen 2) Series: Anthem's MCA (Gen 2) Series amplifiers feature superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum. These new MCA (Gen 2) Series amplifiers feature more robust and efficient power and heavy-duty reliability than previous MCA Series. The new MCA (Gen 2) Series also delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background. The MCA (Gen 2) Series amplifiers utilize custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry.

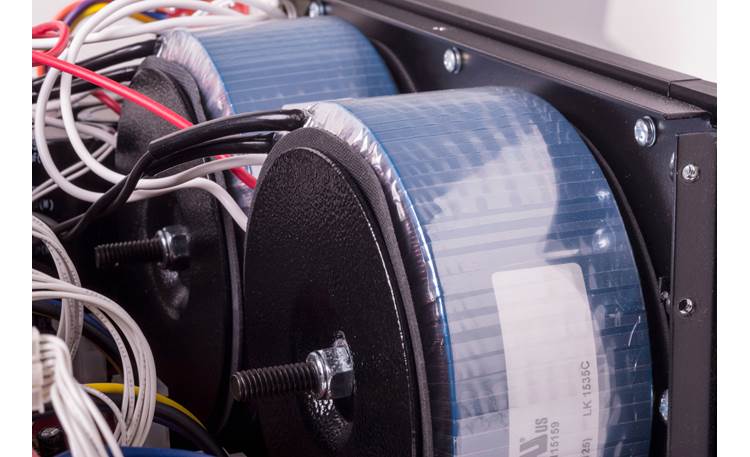

Massive Toroidal Power Supplies: While most 5-channel amplifiers use a single power supply for front left and right channels and another power supply of the centre and surround, the new MCA 525 (Gen 2) shares its two power supplies between all channels. The result is full bursts of power, instantly, without affecting channel separation. The MCA (Gen 2) Series amplifiers deliver incredible dynamics thanks to these massive, conservatively rated power supplies designed with high rail voltages. Low flux toroidal power transformers ensure ultra quiet performance by minimizing stray magnetic field radiation. This provides the pure, clean, low-noise power that is needed to reproduce the full dynamics of home theater and the most complex and dynamic music recordings.

Low Impedance Amplifier: Anthem's new MCA (Gen 2) Series Amplifiers balance the complex dynamics of today's most demanding multi-channel media with the rare finesse required to satisfy audiophile quality souond reproduction. 8 bipolar output devices per channel deliver greater high-current power with less stress on the amplifier. The amplifier is incredibly stable into difficult, low-impedance speaker loads, making them very reliable performers in even the toughest circumstances. MCA (Gen 2) Series Amps provide an abundance of conservatively rated power into demanding low impedance loads with incredible reliability. See below for the MCA 525 (Gen 2) power ratings -

• 8-Ohm: 225 watts x 5 channel (continuous RMS, 20Hz to 20kHz, <.015% THD)
• 4-Ohm: 400 watts x 5 channel (continuous RMS, 20Hz to 20kHz, <.0.15% THD)
• 2-Ohm: 600 watts x 5 channel (continuous RMS, 20Hz to 20kHz, <0.15% THD)

Direct Path Circuitry: The MCA (Gen 2) series greatly reduces the use of internal cabling for a much smoother circuit path for pure, unobstructed audio performance. Both power supply impedance and internal cabling inductance have been minimized to deliver a direct, clear path for maximum power; even in the most demanding conditions. Consequently, Anthem removed output relays, so the signal path has absolutely no moving parts. All parts, including the eight bipolar output transistors per channel, are run conservatively so they remain within their safe operating range. With a signal-to-noise ratio of 120dB, background noise is practically nonexistent, leaving you with just pure natural sound reproduction from the MCA (Gen 2) Series amplifier.

Advanced Load Monitoring (ALM) Technology: Exclusive ALM (Advanced Load Monitoring) technology monitors internal temperature, current and voltage to ensure safe and uninterrupted longterm operation, all the while eliminating the need for internal fuses. ALM is not in the signal path, so it never gets in the way. Instead, ALM engages instantly, but only in the most extreme circumstances, to protect your amplifier and speakers from damage.This new generation ALM lowers the chance of a line fuse blowing during an over-current condition. Should a fault condition arise, unaffected channels continue to play and all-channel operation resumes automatically once conditions are back to normal. The LED on the front panel confirms status at all times.

Balanced & Unbalanced Analog Inputs: The Anthem MCA 525 (Gen 2) amplifier is equipped with five balanced XLR inputs and five unbalanced RCA inputs for Front Left, Front Right, Center, Surround Left, and Surround Right channels. Balanced XLR connections offer the highest transmission quality, particularly over long cable lengths, because they reject noise and hum pickup. If your preamplifier does not have XLR outputs, use the RCA inputs.

Custom-Designed Binding-Posts: Five pair of speaker terminals are provided for connecting a pair of front speakers, pair of rear speakers, and a center-channel speaker. These custom-designed, oversized robust binding-posts ensure full power delivery at all times. They're easy to use and facilitate large speaker cable connectors, as well a banana plugs (single only). These new, larger, more conductive audiophile-grade binding posts have been added to maximize contact and maintain a firm grip on the speaker cable.

Trigger Input/Output: The Anthem MCA 525 (Gen 2) is equipped with a 12V trigger input (3.5mm) and 12V trigger output (3.5mm) to synchronize power on/off with other components that also feature 12V trigger inputs and outputs.

3-Way On/Off: The MCA series amplifier can be powered on or off in three ways - manually with the On/Off switch on the front-panel, remotely via the rear-panel 5V-24V trigger input, or automatically with Anthem's patented Auto-On/Off circuit. Via the Auto-On/Off circuit, an incoming audio signal immediately switches it on; and approximately 20 minutes after the audio signal ends, it simply switches off.

Protection Circuitry: The Anthem MCA series amplifier utilizes a 3-way protection circuit to guard against Short Circuits (Short Circuit protection), Over-Heating (Thermal protection), and Ground Faults (DC protection).

Crafted In Canada: Anthem MCA (Gen 2) Series amplifiers are designed, engineered, and completely Crafted in Canada. They come with a 5 year warranty.
