About the AtlasIED AP-30

An efficient, powerful horn
An efficient, powerful horn

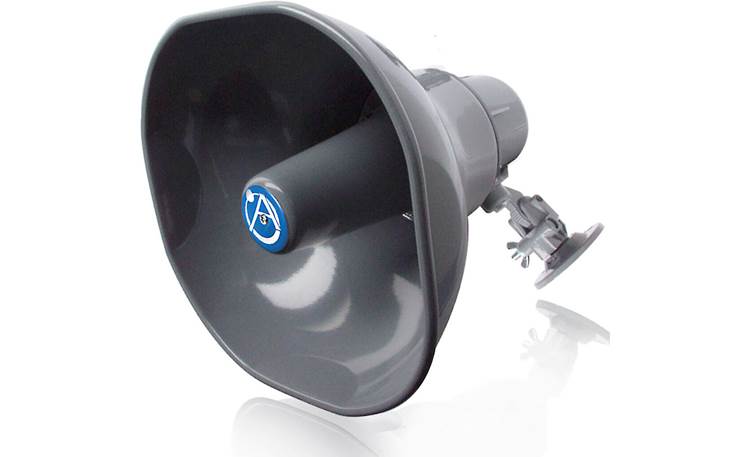

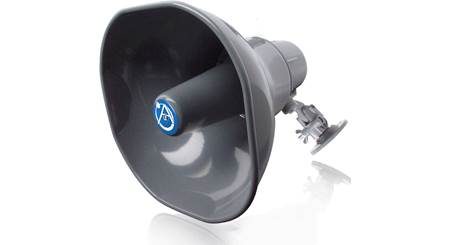

This indoor/outdoor loudspeaker is ideal for public address systems and intercoms where your speakers need to stand up to the elements. Atlas designed it with a high-efficiency driver that handles up to 30 watts, so your announcements come through loud and clear. The AP-30 includes a mounting bracket that lets you position the speaker how you need it during installation. See what our satisfied customers have to say.
Get started with
a free system design
After we gather your information, we'll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.
Product highlights:
- 30-watt indoor/outdoor public address loudspeaker
- frequency range: 300-12,000 Hz
- 8-ohm impedance
- sensitivity: 108 db
- high-efficiency driver offers clear voice reproduction
- trademarked squared-bell design
- mounting bracket included
- 10"W x 11"H x 10-1/2"D
- weight: 6 lbs.
- warranty: 5 years
- MFR # AP-30
What's in the box:
Customer reviews for AtlasIED AP-30
Loading...
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the AtlasIED AP-30

Features & specs
General | ||
---|---|---|
Drivers per speaker | 1 | |
Woofer Size (inches) | N/A | |
Tweeter Size (inches) | N/A | |
System Frequency response | 300-12kHz | |
Maximum SPL | --- | |
Power Handling | ||
Power rating | 30 | |
Peak Power rating | N | |
Specs | ||
Width (inches) | 10 | |
Height (inches) | 11 | |
Depth (inches) | 10-1/2 | |
Weight | 4.5 lbs |
Product Research
Features
Overview: The Atlas Sound Omni-Purpose Horn Loudspeakers are designed for high-intelligibility voice and signal transmission. The AP-30 weather-resistant horn speaker can be used for indoor and outdoor public address, intercom, security, and industrial signal systems. The speaker's highly-efficient compression drivers can project sound over long distances. The AP-30 speaker's trademarked squared-bell design features structural aluminum construction with a gray baked epoxy finish and matching ABS plastic. It comes with an integrated Omni-Purpose mounting bracket with vertical and horizontal adjustment for accurate positioning.
Wiring: The 8-ohm AP-30 horn speaker has a continuous audio power rating of 30 watts. Two screw terminals are provided for connecting the speakers using bare wire or spade connectors. The terminals have a weather-resistant cover.
Specifications:
- Frequency Response:
- 300 - 12kHz (Nominal)
- 500 - 4500Hz (±5dB)
- Sensitivity:
- 126dB at 30 Watts (Peak)
- 121dB at 30 Watts/1 Meter (Avg) 500-4500Hz
- 108dB at 1 Watt/1 Meter (Avg) 500-4500Hz
- Dispersion Angle: 60° (-6dB, 2000Hz octave band)
- Dimensions: Width=10" Height=11" Depth=10.5"
- Weight: 4.5 pounds
